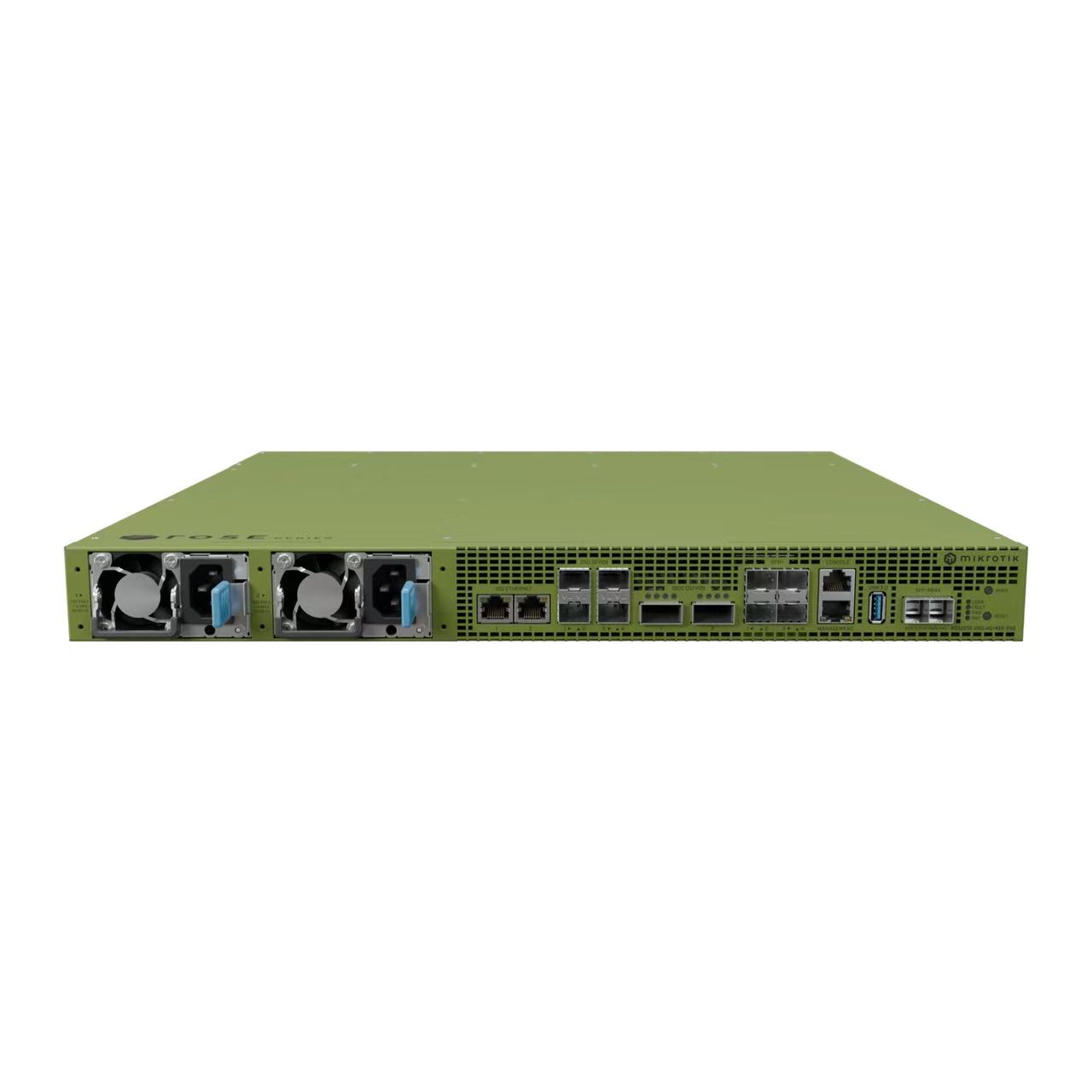

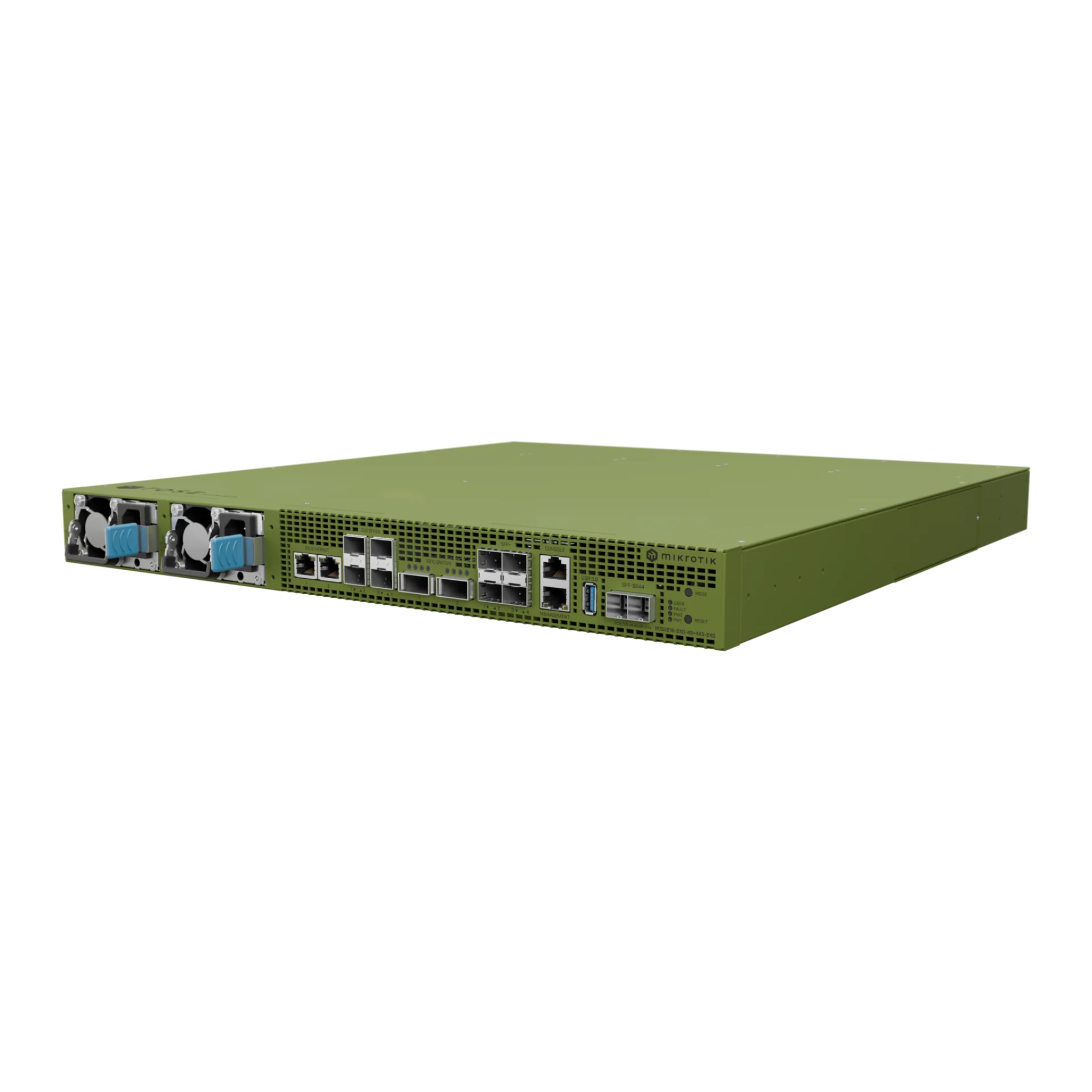

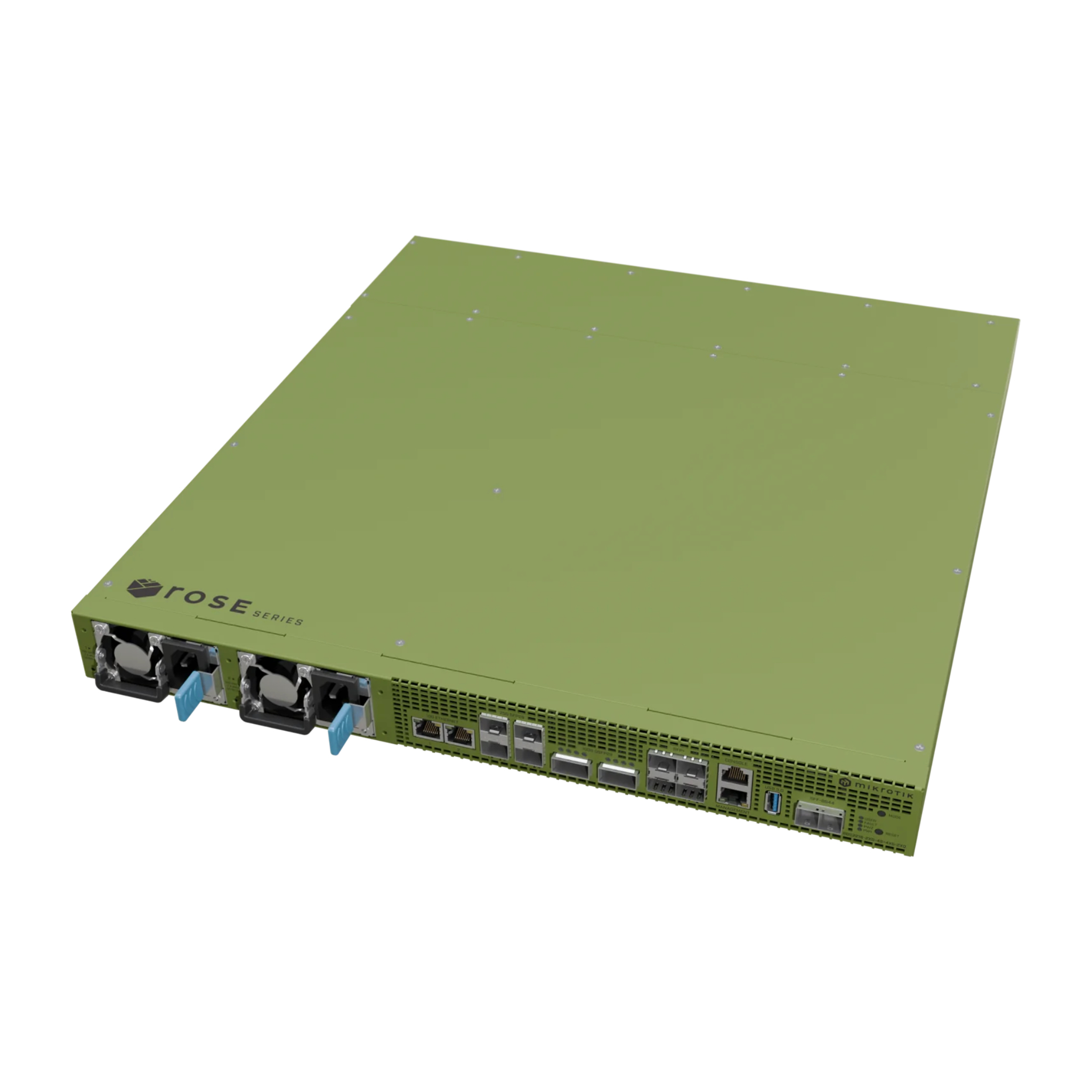

The MikroTik RDS2216-2XG-4S+4XS-2XQ is a high-performance enterprise-grade rackmount storage and networking platform designed for modern data centers, enterprise IT environments, cloud infrastructure, virtualization, and high-speed network applications. Built to deliver exceptional reliability, scalability, and flexible connectivity, the RDS2216-2XG-4S+4XS-2XQ combines advanced storage capabilities with powerful networking features, making it an ideal solution for businesses requiring centralized data management, high-capacity storage expansion, and ultra-fast network performance. Equipped with multiple high-speed interfaces, including 2×10 Gigabit Ethernet ports, 4×10G SFP+ ports, 4×25G SFP28 ports, and 2×100G QSFP28 uplink ports, it provides outstanding bandwidth for demanding workloads such as virtualization clusters, large-scale file sharing, backup systems, multimedia streaming, AI computing, and enterprise cloud services. The platform supports up to sixteen storage drives, enabling massive storage capacity and flexible RAID configurations to ensure maximum data protection, availability, and operational efficiency. Powered by MikroTik's reliable RouterOS, users benefit from advanced routing, firewall, VPN, VLAN, QoS, traffic management, monitoring, and security functions while maintaining easy deployment and centralized management. The 1U rackmount design offers efficient space utilization, making it suitable for enterprise server rooms, ISP infrastructure, educational institutions, financial organizations, healthcare facilities, government agencies, and growing business networks. Engineered with enterprise-class hardware, redundant cooling, and dependable system stability, the RDS2216-2XG-4S+4XS-2XQ delivers continuous performance even under heavy workloads and mission-critical applications. Its versatile connectivity allows seamless integration into existing 10G, 25G, and 100G network environments while providing a future-ready upgrade path for expanding infrastructures. Whether deployed as a high-speed NAS platform, backup storage server, virtualization storage node, or integrated networking and storage solution, the MikroTik RDS2216-2XG-4S+4XS-2XQ offers an outstanding balance of performance, flexibility, reliability, and cost-effectiveness, making it an excellent choice for enterprises, system integrators, service providers, and IT professionals seeking a scalable, secure, and efficient storage networking solution for today's data-intensive business environments.
RDS2216-2XG-4S+4XS-2XQ
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | RDS2216-2XG-4S+4XS-2XQ |
Product Series | MikroTik ROSE Data Server (RDS) | |
Device Type | Enterprise-Grade Network Storage Server | |
Form Factor | 1U Rack-mountable Chassis | |
Switch Chip Model | 98DX4310 | |
CPU & Memory | Processor | 16-core 2 GHz ARM CPU |
RAM | 32GB DDR4 RAM | |
Onboard Storage | 128 MB NAND Flash | |
Network Port Configuration | 10G Ethernet RJ45 Ports | 2 x 10/100/1000/10000BASE-T |
10G SFP+ Ports | 4 x 10G SFP+ slots | |
25G SFP28 Ports | 4 x 25G SFP28 slots | |
100G QSFP28 Ports | 2 x 100G QSFP28 slots | |
Management Ethernet Port | 1 x 10/100/1000BASE-T RJ45 | |

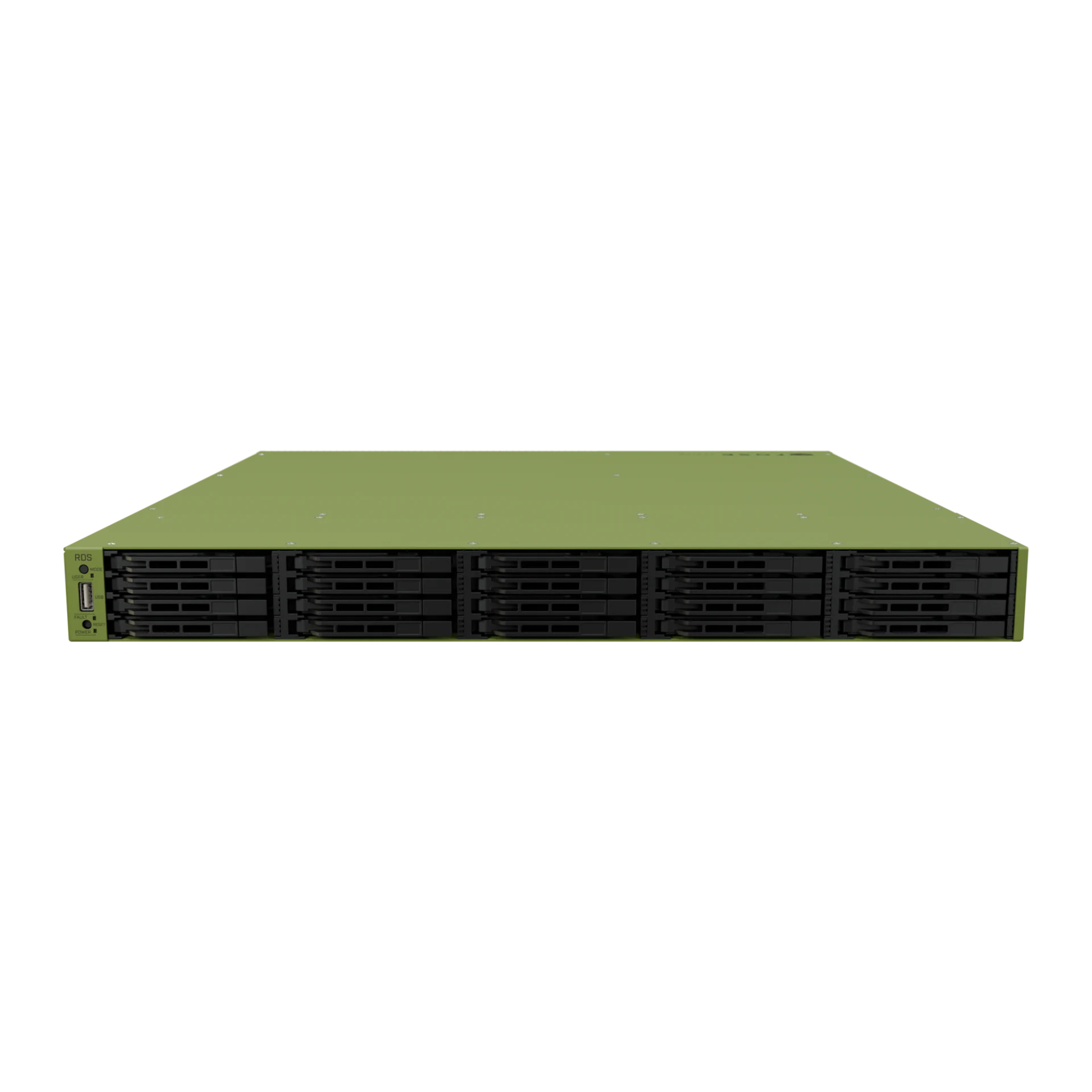

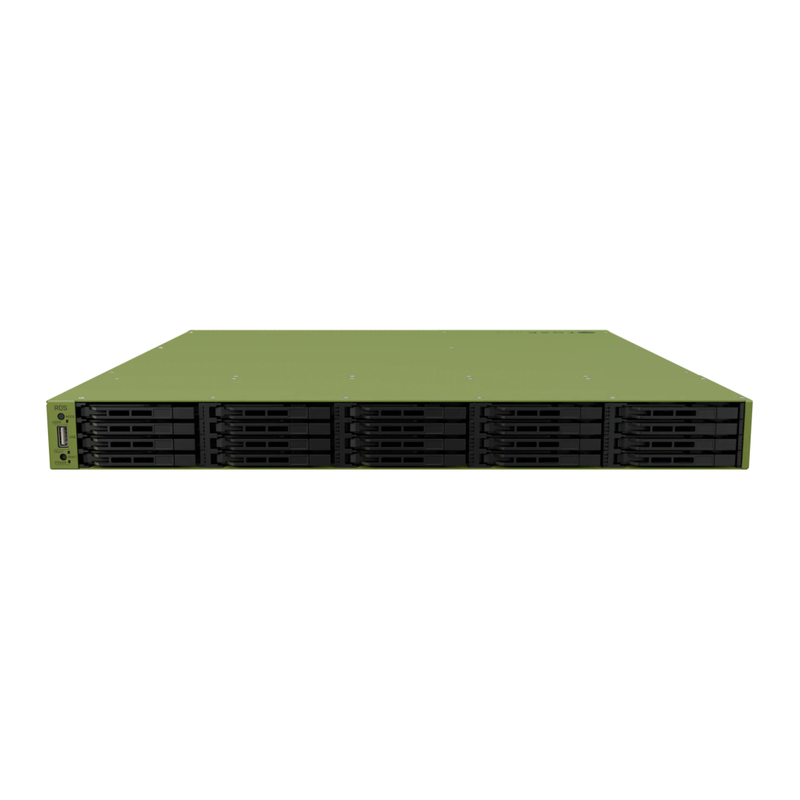

Storage Specifications | U.2 Drive Bays | 20 x PCIe Gen3 trays for U.2 SSD disks (max 7mm height supported) |
M.2 SATA Slots | 2 x M.2 2280 SATA III SSD slots | |
Additional Storage Interface | 1 x SFF-8644 (Mini-SAS) interface | |
Connectivity & Interfaces | USB Ports | 2 x USB 3.0 Type A + USB 2.0 Type A |
Serial Console Port | 1 x RJ45 Console Port | |
Power Supply | Power Supply Type | Dual Hot-swappable AC Power Supplies |
AC Input Range | 100–240V AC | |
Input Frequency | 50–60 Hz | |
Max Power Consumption | 286 W (full load) / 105 W (no attachments) | |
Physical & Mechanical Specs | Dimensions (W × D × H) | 476 mm × 443 mm × 44 mm (1U rack height) |
Cooling System | 10 x Built-in Cooling Fans | |
MTBF | Approximately 200,000 hours at 25°C | |
Environmental Parameters | Operating Temperature | -20°C to +50°C |
Storage Temperature | -40°C to +70°C | |
Operating Humidity | 10%–90% non-condensing | |
System & Software | Operating System | RouterOS v7 only |
License Level | RouterOS License Level 6 | |
Supported Features | NVMe-TCP block device export, storage encryption, container-ready (MinIO/Nextcloud/Shinobi/Frigate), virtualization support | |
Package Contents | Included Accessories | 1 x RDS2216-2XG-4S+4XS-2XQ Server, 2 x IEC Power Cords, 1 x K-90 Fastening Set, 2 x Rackmount Ears, 2 x Small Rear Support Ears, 2 x Long Rear Rackmount Support Ears |
