2x2 MU-MIMO Access Point With Dual Radio, Internal Antennas Fortinet FortiAP 221E FAP-221E

• Model: FAP-221E
• Brand: Fortinet
• Condition: Original New
• Warranty: 1 year

Product Description

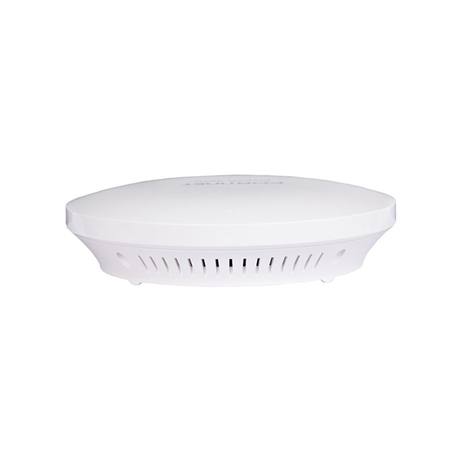

Fortinet FortiAP 221E

2x2 MU-MIMO Access Point With Dual Radio, Internal Antennas

The FortiAP 221E and 223E are medium-density 802.11ac Wave 2 access points. These Enterprise-class access points are ideal for medium-density environments such as office or classroom with Performance Throughput of up to 867 Mbps.
* 802.11ac Wave 2
* Dual Radio 2.4 and 5 GHz
* 4 Internal/External Antennas
* 2x2 MU-MIMO
* Up to 400 + 867 Mbps

Hardware
Indoor/Outdoor Deployment	Indoor AP
Number of Radios	2
Number of Antennas	4 Internal
Peak Antenna Gain	Patch: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz)*	2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities	2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM)
Radio 2 Capabilities	5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate	Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps
Interfaces	1x 10/100/1000 Base-T RJ45, 1x Type A USB
Power over Ethernet (PoE)	IEEE 802.3af
Simultaneous SSIDs	16 (14 if background scanning enabled)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA and WPA2 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power	·2.4 GHz: 23 dBm / 200 mW (2 chains combined)** 5 GHz: 24 dBm / 251 mW (2 chains combined)**
Kensington Lock	Yes
IEEE Standards	802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3az
SSID Types Supported	Local-Bridge, Tunnel, Mesh
Per Radio Client Capacity	Up to 512
Cellular Co-existence	Yes
