In today's fast-paced digital marketplace, a reliable communication infrastructure is the backbone of any successful enterprise. Legacy analog systems with tangled copper wires and limited scaling options are rapidly becoming obsolete. Forward-thinking companies are pivoting to modern internet-driven platforms to unify their communications, reduce overhead, and empower remote workflows.
However, looking at the technical blueprints of a modern network can feel overwhelming. If you are a small business owner, an IT administrator, or an operations manager tasked with modernizing your office, you might be wondering where to start.
This comprehensive, technical yet accessible IP telephony step by step guide takes the guesswork out of the equation. From mapping your initial network requirements to running a final text deployment, we will walk you through the entire office VoIP phone installation process from start to finish.
Before buying any desktop hardware or logging into configuration dashboards, you must build a solid operational foundation. Skipping this preparatory assessment is the most common reason a small business phone system setup suffers from poor call quality or frequent dropouts down the line.
Unlike legacy landlines, internet-based communication shares your office internet connection with computers, printers, and cloud applications. To ensure crisp audio quality, you must calculate your concurrent call capacity.
A high-quality voice call utilizes roughly 80 to 100 Kbps (Kilobits per second) of both upload and download bandwidth. If you expect a maximum of 20 employees to be on the phone simultaneously, your network must reserve at least 2 Mbps of dedicated, symmetrical bandwidth solely for voice traffic.
You must choose where the central brain of your network—the Private Branch Exchange (PBX)—will live. This decision dictates your physical hardware needs and long-term maintenance workflows.
Hosted Cloud VoIP: Your service provider hosts the phone system on their secure data servers off-site. You manage settings through a web browser, and your desktop hardware connects directly over the open internet. This architecture requires minimal upfront capital, making it ideal for a straightforward small business phone system setup.
On-Premise IP PBX: You purchase and maintain a physical PBX server appliance inside your office IT closet. While this demands higher upfront hardware costs and dedicated IT staff to manage, it gives your enterprise complete, absolute control over data routing, local security protocols, and custom software integrations.
Once your structural architecture is finalized, it is time to assemble the physical building blocks of your communication network.

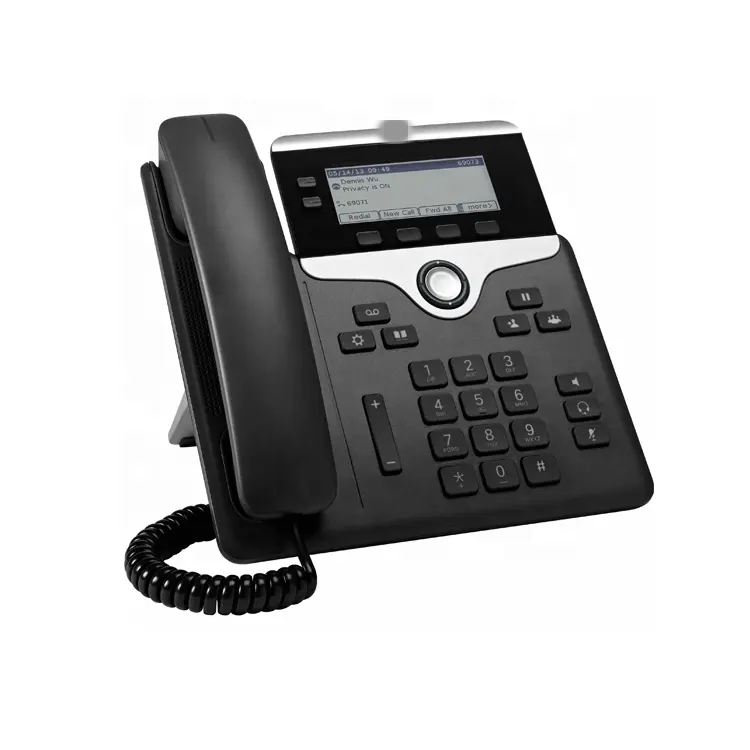

Every physical workstation will require a dedicated desktop handset. Ensure your selected hardware natively supports Session Initiation Protocol (SIP). Popular enterprise manufacturers include Cisco, Yealink, and Grandstream. For heavy call volumes, consider purchasing sidecar expansion modules for your front-desk receptionists.
Traditional phones plug into a regular wall outlet for power and a telephone jack for signals. Internet handsets require both power and an internet connection. To avoid running chaotic webs of power adapters to every single desk, invest in a PoE (Power over Ethernet) Switch. A PoE switch injects electrical power directly through the standard Cat5e or Cat6 Ethernet cable, delivering data and electricity to the handset through a single cord.
Your router sits between your local network and the internet, acting as a traffic cop. Ensure your router supports Quality of Service (QoS) mapping and has sufficient processing power to handle stateful packet inspection without introducing latency into your voice streams.
Voice data packets are incredibly sensitive to timing. If an email packet arrives a fraction of a second late, you will never notice. If a voice packet arrives late, your call suffers from clipping, robotic audio, or dropping entirely. Proper network conditioning is a critical part of knowing how to configure IP phone environments successfully.
Log into your core network router's administrative console. Locate the QoS (Quality of Service) settings panel. You must create a rule that explicitly prioritizes voice data traffic over general web browsing, file downloads, and video streaming.
Set your voice traffic protocols—typically utilizing SIP (ports 5060/5061) and RTP (Real-time Transport Protocol) data packets—to "High Priority" or "Real-Time Class." This ensures that even during heavy office data usage, your phone conversations remain crystal clear.
For mid-sized offices or environments with heavy web traffic, separating your networks via a VLAN (Virtual Local Area Network) is highly recommended. By creating a distinct sub-network exclusively for your communication devices (e.g., VLAN 10 for Voice, VLAN 20 for Data), you completely isolate your audio streams from local network broadcast storms and computer malware.
With your physical network optimized, it is time to build out the software routing engine. If you are using an on-premise system, follow this specific IP PBX configuration guide blueprint to map your virtual telephone exchange.
Connect your IP PBX appliance to your network switch and assign it a permanent, static IP address. Access the administrative graphic user interface (GUI) by typing that static IP address into a local web browser. Change the default factory administrator credentials immediately to safeguard your system against unauthorized external access.
An IP PBX requires a bridge to connect internal office extensions to the outside public switched telephone network (PSTN). This bridge is called a SIP Trunk.
Navigate to the Trunks management panel in your PBX dashboard.
Click Add SIP Trunk and enter the authentication credentials, proxy addresses, and domain details provided by your internet telephony service provider (ITSP).
Save the configurations and verify that the link status switches to "Registered" or "Online."
You must tell the system exactly how to handle incoming and outgoing calls:
Inbound Routes: Map your main public business phone numbers (DIDs) to point toward specific destinations, such as an automated reception greeting or a specific ring group.
Outbound Routes: Create Dial Patterns that tell the system which SIP trunk to use when an employee dials out. For example, configure a rule stipulating that dialing a "9" or an international prefix routes the call through your long-distance telecom partner.
Now that the central exchange engine is live, you can move on to the actual IP phone system setup at individual employee workstations.
Inside your cloud hosting or IP PBX dashboard, navigate to the Extensions or Users module. Click Create New Extension for each user and input the following parameters:
Extension Number: (e.g., 101, 102, 103)
Display Name: The employee's actual name, which will appear on internal Caller ID systems.
SIP User ID and Password: A unique, random string generated by the system used by the physical handset to authenticate itself to the server.
With your virtual extensions mapped on the server, you must link the physical desktop hardware to those specific accounts. Follow this sequence to configure VoIP phone system endpoints seamlessly:
1.Connect the physical hardware：Step 1。
Plug a standard Cat6 Ethernet cable from your office PoE network switch directly into the port labeled LAN or Internet on the back of the desktop phone. The device will draw power from the switch and boot up automatically.
2.Retrieve the device's local IP address：Step 2。
Once the handset finishes booting up, press the physical Menu or Status button on the device keypad. Look at the display screen to locate and write down its local IP address (e.g., 192.168.1.45).
3.Access the phone's web management interface：Step 3。
Sit down at a computer connected to the exact same office network. Open a web browser, type the phone’s local IP address directly into the URL address bar, and press Enter to open the device's internal management login portal.
4.Input SIP authentication details：Step 4。
Log in using the manufacturer's default credentials (often admin/admin). Navigate to the Account, Line, or SIP Settings tab. Input your system server address into the SIP Server / Registrar field, and copy the unique Extension Number, SIP User ID, and SIP Password created during Phase 4 into their matching authentication fields.
5.Apply changes and verify registration status：Step 5。
Click Save, Apply, or Reboot. Look at the main display screen of the physical phone. Within 30 to 60 seconds, a solid green icon or a "Registered" message should appear next to the extension line, indicating the device is officially online and active.
An optimized corporate communication system does more than just answer calls—it directs traffic logically to maximize productivity and customer satisfaction.
An Interactive Voice Response (IVR) system acts as your digital front desk. Upload a clean, professionally recorded audio greeting file (e.g., "Thank you for calling. For Sales, press 1. For Support, press 2."). Inside your PBX dashboard, map those keypad digits to route callers directly to the correct destination extensions.
Avoid overwhelming a single employee by setting up Ring Groups. For example, you can bundle Extensions 101, 102, and 103 into a group named "Sales Team." When an external client presses 1 for sales, you can configure the system to ring all three desks simultaneously, ring them sequentially in a round-robin chain, or route the call to whoever has been idle the longest.
Never open a newly configured network to the public without conducting rigorous testing. Run these three distinct diagnostic checks to ensure your office VoIP phone installation was a success:
The Inbound/Outbound Audio Test: Call an external mobile device from an office extension and vice versa. Verify that two-way audio functions perfectly and check for any noticeable latency or digital echo.
The Internal Extension Transfer Test: Call Extension 101, initiate an internal blind transfer to Extension 102, and verify that the call switches over seamlessly without dropping.
The Network Stress Test: Intentionally trigger a massive file download or stream high-definition video on an office computer while actively holding a voice call on a desktop handset. If the audio clips or stutters during the file download, return to your router configuration and tighten your QoS bandwidth reservation metrics.
Congratulations! By following this comprehensive installation blueprint, you have successfully transitioned your office infrastructure into a highly modern, internet-powered communication engine.
While learning how to design network architecture, build routing rules, and configure VoIP phone system endpoints takes some deliberate planning up front, the rewards are immediate. Your enterprise is now equipped with enterprise-grade scaling options, massive monthly cost savings, and fluid mobility to keep your teams connected from anywhere in the world. Keep your network router firmware updated, monitor your bandwidth logs as your head-count expands, and enjoy the competitive edge of a truly unified cloud system.
Yes, absolutely. If you choose a Hosted Cloud VoIP architecture, the service provider handles almost all of the backend server management. Setting up the system simply involves plugging physical devices into a PoE internet switch and pasting basic registration credentials into a clean web browser interface.
While both options work perfectly well for standard voice data, Cat6 cables feature tighter internal twisting shielding designs that substantially reduce crosstalk and electromagnetic interference. For clean, long-term infrastructure installations, deploying Cat6 cables is highly recommended.
Not at all. Most modern business communication platforms offer integrated "Softphone" applications. Remote or traveling employees can download a secure software client directly onto their existing corporate laptops or personal smartphones, letting them make and receive official business calls using their office extensions without needing a desktop handset.
One-way audio—where you can hear the caller, but they cannot hear you—is almost always caused by a firewall issue known as NAT (Network Address Translation) traversal failure. To fix this, log into your office router, locate the security settings, and disable a feature called SIP ALG (Application Layer Gateway), which frequently alters and corrupts voice data packets.
