Enterprise Cisco Network Switch Architecture & Sourcing Guide: Campus, Core, and Data Center Solutions

Modern enterprise digital infrastructure demands deterministic latency, zero-trust hardware validation, and dynamic bandwidth scaling. Whether interconnecting high-density Wi-Fi 7 access points, hosting high-performance virtualized workloads, or powering modern AI/ML inference fabrics, your physical switching layer is the foundational backbone.

For IT directors, network architects, and procurement procurement officers, navigating Cisco Systems' active catalog requires balancing performance metrics against lifecycle investments and software licensing models. Sourcing genuine, globally compliant hardware at competitive wholesale terms is equally vital.

1. Cisco Switching Architecture: Campus vs. Data Center Fabrics

Before selecting specific stock-keeping units (SKUs), network engineers structure physical network topologies into functional operational domains:

Campus LAN (Catalyst Family): Engineered for user access, client endpoints, branch routing, IoT convergence, and edge security. Campus switches prioritize multi-gigabit copper (mGig), Power over Ethernet (up to 90W UPOE+), stackability, and identity-driven policy enforcement via Cisco Catalyst Center (formerly DNA Center) and Software-Defined Access (SD-Access).

Data Center & Cloud Fabrics (Nexus Family): Engineered for server leaf-and-spine fabrics, high-frequency east-west traffic, SAN storage convergence, and distributed AI computing. Nexus switches prioritize line-rate non-blocking throughput, deep packet buffers, low latency, VXLAN EVPN fabrics, CloudScale/Silicon One ASICs, and Cisco Nexus Dashboard / ACI controller automation.

2. Cisco Catalyst Enterprise Campus Portfolio: Active Generations

Cisco’s current campus standard centers on the Catalyst 9000 family, alongside the Catalyst 1200/1300 series for commercial small-to-medium businesses. Legacy platforms such as the Catalyst 2960-X/XR, 3650, 3850, and Cisco Business CBS250/350 are discontinued (End-of-Sale); new infrastructure deployments should standardize on active hardware architectures.

Cisco Catalyst 9200 & 9200L: Enterprise Branch & Edge Access

The Catalyst 9200 Series delivers enterprise-grade security and Layer 3 resilience to lean branch deployments, retail sites, and cost-sensitive corporate networks.

Uplink Configurations: Fixed uplinks (9200L: 4x 1G SFP or 4x 10G SFP+) and modular network modules (9200: 4x 1G, 4x 10G, or 2x 25G/40G).

Performance & Stacking: StackWise-160 (9200) and StackWise-80 (9200L), enabling unified management of up to 8 units in a single logical plane.

Power Redundancy: Dual field-replaceable power supplies with up to 1440W PoE+ budgets.

Key Models: C9200-24P, C9200-48P, C9200L-24P-4X, C9200L-48P-4X.

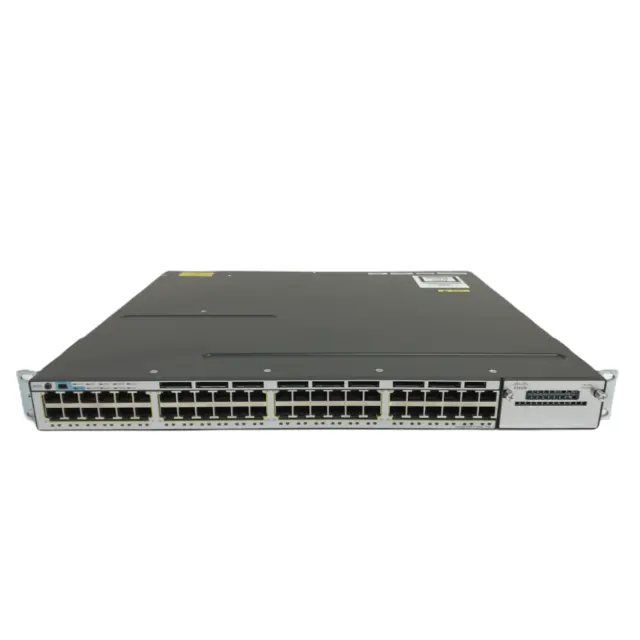

Cisco Catalyst 9300 & 9300X: Enterprise Flagship Stackable Access

The Catalyst 9300 and 9300X platforms represent the industry benchmark for campus wiring closets, purpose-built to sustain dense Wi-Fi 6E/7 access point rollouts, smart-building automation, and application hosting.

Multi-rate Throughput: Native 100M/1G/2.5G/5G/10G multigigabit copper ports with up to 100G fiber uplinks on 9300X models.

Advanced Power Architecture: Cisco StackPower pools individual power supplies across stacked units into a shared power bus, ensuring zero-footprint PoE backup. Supports Cisco UPOE (60W) and UPOE+ (90W 802.3bt Type 4).

Stacking Throughput: StackWise-480 (9300) scaling to StackWise-1T (1 Tbps stacking throughput on 9300X).

Edge Intelligence: Native Docker container application hosting (ThousandEyes network synthetic agents, IoT edge analytics) directly on switch hardware.

Key Models: C9300-24T, C9300-48P, C9300-48UXM (mGig UPOE), C9300X-48HX (90W UPOE+, 100G uplinks).

Cisco Catalyst 9400 & 9600: Modular Campus Access, Aggregation & Core

For centralized distribution frames and multi-building campus backbones requiring uninterrupted uptime:

Catalyst 9400 Series: Modular chassis (4-slot, 7-slot, 10-slot) supporting redundant Supervisor Engines (Sup-1XL-Y, Sup-2XL), hitless Stateful Switchover (SSO), In-Service Software Upgrades (ISSU), and up to 9.6 Tbps switching capacity.

Catalyst 9500 & 9500X Series: Purpose-built fixed-core and distribution platforms offering 10G, 25G, 40G, 100G, and 400G (QSFP-DD) aggregation powered by Cisco Silicon One Q200 ASICs. Supports StackWise Virtual (SVL) for dual-chassis active-active redundancy.

Catalyst 9600 & C9610 Series: The mission-critical modular campus core delivering up to 25.6 Tbps per chassis, engineered for enterprise networks transitioning to 100G/400G inter-switch backbones.

3. Cisco Nexus Portfolio: Cloud, Virtualization, and AI Fabrics

Data centers running VMware, Hyper-V, Kubernetes, OpenStack, or high-throughput storage arrays require uncompromised packet forwarding, zero packet drops, and programmatic software APIs. The Cisco Nexus 9000 Series forms the primary compute and storage leaf-spine infrastructure.

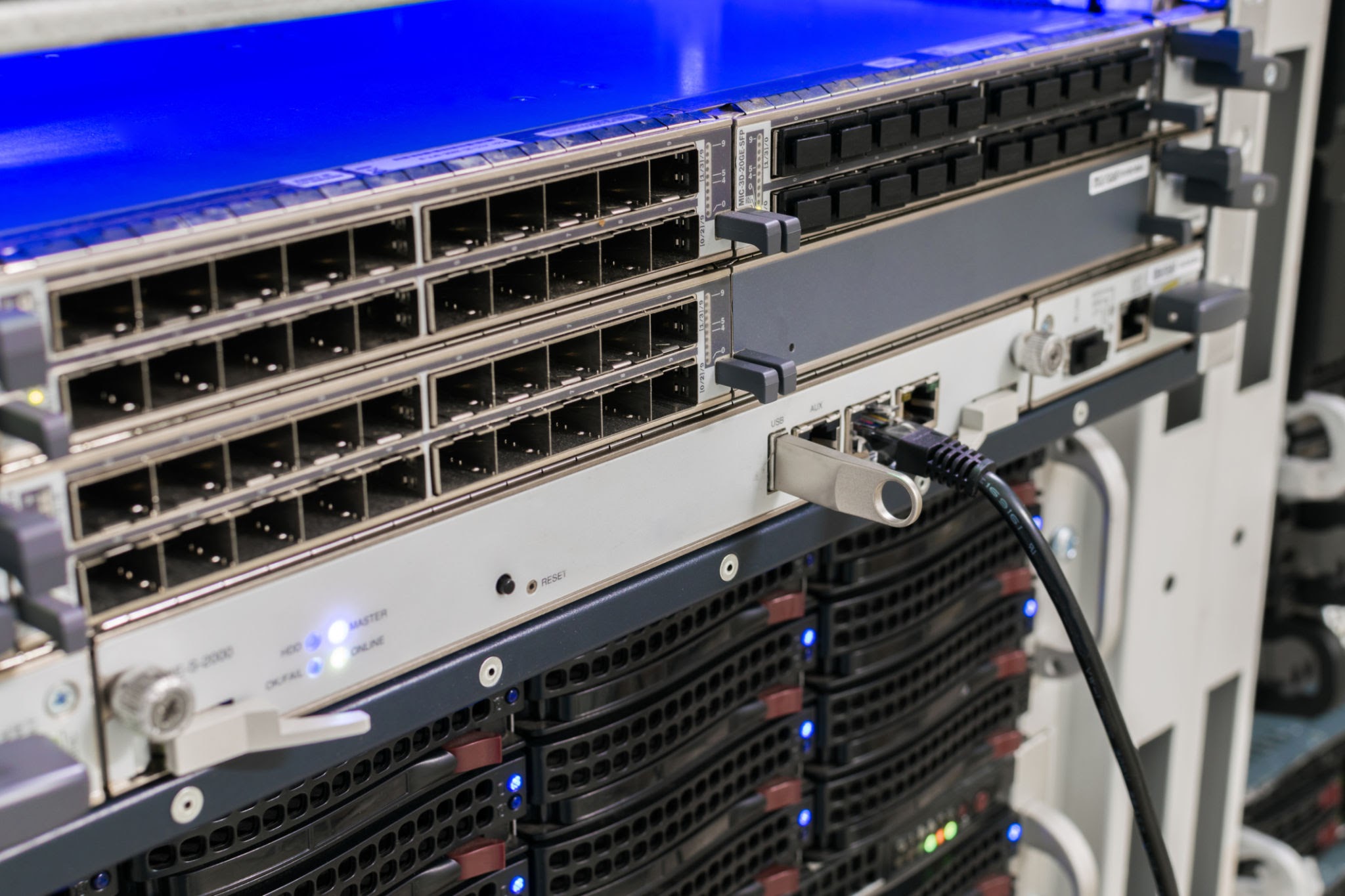

Nexus 9300 Fixed Leaf and Spine Switches

High-Density Server Access (ToR / MoR): Models such as N9K-C93180YC-FX3 (48x 1/10/25G SFP28 + 6x 40/100G QSFP28) and N9K-C93108TC-FX3 (48x 100M/1G/10GBASE-T + 6x 40/100G QSFP28) serve as the standard ToR switches for enterprise compute clusters.

Ultra-High-Speed AI/ML & Spine Fabrics: The N9K-C9332D-GX2B (32x 400G QSFP-DD) and the next-generation N9364E-SG2 (64x 800G OSFP/QSFP-DD) deliver massive 51.2 Tbps non-blocking backplanes tailored for high-scale AI GPU compute fabrics and hyperscale multi-tenant clouds.

Dual Operating Modes: Can operate in standalone NX-OS mode (leveraging open APIs, Ansible, Terraform, and Python automation) or Cisco ACI mode (for automated, intent-based software-defined data center policies).

Nexus 9500 & 9800 Modular Systems

For large enterprises, telecom operators, and financial data centers requiring multi-chassis scalability:

Nexus 9500 (4, 8, 16-slot): Cloud-scale modular chassis with backplane-free fabric designs supporting line cards from 10G to 400G Ethernet.

Nexus 9800 (9804 & 9808): Cisco's modular platform engineered for high-density 400G and 800G forwarding, providing investment protection for cloud-scale telemetry and next-generation storage-area network (SAN) traffic.

4. Comprehensive Technical Specification Matrix

The following table contrasts the primary active Cisco switch families to streamline engineering sizing and procurement evaluations:

5. Network Sizing & Engineering Best Practices

When budgeting and drafting Bills of Materials (BOMs), system integrators and IT buyers must analyze three operational factors:

A. Power Over Ethernet (PoE) Budgets

Modern enterprise access points (Wi-Fi 6E and Wi-Fi 7) frequently exceed standard 15.4W (802.3af) and 30W (802.3at PoE+) thresholds when operating with full multi-band MIMO and scanning radios. Deploying switches supporting 802.3bt Type 4 (UPOE+ up to 90W) ensures future-proof connectivity for motorized PTZ IP cameras, digital LED building signage, and intelligent IoT access terminals without pulling auxiliary AC circuits. Always size internal Power Supply Units (PSUs)—such as dual 1100W AC or 1900W AC units—against total connected endpoint draws.

B. Uplink Oversubscription Ratios

For enterprise access closets, maintaining an oversubscription ratio of 4:1 or 8:1 between access edge ports and distribution uplinks ensures congestion-free voice, video conferencing, and unified communications. When deploying 48x 1G ports, ensure at least 2x 10G or 4x 10G uplinks are bound via LACP EtherChannel. For 2.5G/5G multi-gigabit access runs, utilize dual 25G or 40G/100G uplinks directly into distribution layers.

C. Software Licensing Framework: Network vs. DNA Tiers

Active Catalyst switches feature a tiered software architecture combining a perpetual base license with a term-based subscription:

Perpetual Tier (Hardware Life): Network Essentials (standard Layer 2, static routing, basic OSPF/PBR) or Network Advantage (advanced Layer 3 routing, full BGP, EIGRP, IS-IS, VRF-lite, VXLAN).

Subscription Tier (3, 5, or 7 Years): Cisco DNA/Catalyst Software Essentials or Advantage, enabling centralized automation via Cisco Catalyst Center, telemetry, Cisco Spaces, and Cisco Meraki Dashboard cloud monitoring.

6. End-to-End Enterprise Hardware Integration

A high-performance network switch does not operate in isolation. Enterprise network architectures require seamless integration across multiple hardware layers:

Compute & Virtualization: Cisco Nexus leaf switches interface directly with high-density rack and blade servers (such as Dell PowerEdge, HPE ProLiant, and Cisco UCS) equipped with multi-core Intel Xeon or AMD EPYC processors, enterprise ECC RAM, and enterprise NVMe SSD/HDD arrays (Samsung, Kioxia, Seagate).

Perimeter Security & Firewalls: Catalyst core and distribution uplinks hand off boundary inspection to next-generation firewalls (NGFW) from Fortinet FortiGate, Cisco Secure Firewall (Firepower), and Juniper SRX to maintain micro-segmentation and Zero-Trust Network Architecture (ZTNA).

Unified Voice & Video Collaboration: Multi-gigabit PoE+ Catalyst access switches provide synchronized, low-jitter power and QoS tagged priority to VoIP systems and audio/video conferencing hardware from Poly, Yealink, Grandstream, Fanvil, Yeastar, Logitech, Horion, Maxhub, and Barco.

Power Protection & Industrial Edges: Uninterruptible Power Supply (UPS) systems from APC ensure continuous runtime for mission-critical core switch stacks, while ruggedized industrial Ethernet switches (Moxa, Cisco Catalyst IE) bridge enterprise campus fabrics to factory floors and outdoor transportation hubs.

7. Global Sourcing & Supply Chain: Why Importgm International Ltd?

Procuring high-value network hardware in the international market presents complex challenges: extended factory lead times, risk of unauthorized or grey-market counterfeits, fragmented warranties, and volatile freight logistics.

Importgm International Ltd (www.importgm.com) solves these supply chain bottlenecks. Backed by over 17 years of specialized cross-border distribution experience, Importgm serves as a premier international hardware partner for global IT distributors, telecom carriers, system integrators, and enterprise buyers.

Core Value Drivers for Overseas Buyers:

--100% Genuine, Factory-Sealed Hardware: Every Cisco Catalyst and Nexus switch sourced through Importgm is verified against manufacturer serialization, ensuring fully authentic units with intact security seals.

--Comprehensive Multi-Brand Aggregation: Beyond Cisco switching and routing, Importgm aggregates complete turnkey project bills of materials across global tier-1 brands, including:

• Routing & Switching: Cisco, Juniper, Aruba, Huawei, Ruijie, Mikrotik, Ubiquiti, ALE.

• Security & Firewalls: Fortinet, Cisco, Juniper.

• Unified Communications & AV: Poly, Grandstream, Yealink, Fanvil, Yeastar, Logitech, Barco,      Horion, Maxhub.

• Server, Storage & Components: Dell, Intel, Samsung, Kioxia, Seagate.

• Power & Industrial: APC, Moxa, Ruckus.

--Significant TCO Savings & Fast Stock Availability: Through long-standing multi-channel allocation agreements, Importgm eliminates multi-month factory backlogs, providing immediate in-stock shipping at significant discounts below standard GPL (Global Price List).

--Rigorous Quality Control & Packaging: All shipments undergo professional pre-dispatch inspection, anti-static moisture-barrier repackaging, and custom heavy-duty wood/carton crating to withstand air and sea transits.

--Global Logistics & Export Compliance: Experienced logistics managers handle streamlined customs clearance, HS code classification, Certificates of Origin (COO), and air/sea freight forwarding to over 120 countries worldwide.

8. Frequently Asked Questions (FAQ)

Q1: What is the main operational difference between Cisco Catalyst 9200 and Catalyst 9300?

The Catalyst 9200 is an entry-to-mid enterprise access switch with fixed or basic modular uplinks, StackWise-160/80 stacking, and PoE+ support up to 30W per port. The Catalyst 9300/9300X is a high-performance access platform offering up to StackWise-1T, Cisco StackPower bus sharing, up to 90W UPOE+ per port, native containerized application hosting (such as ThousandEyes agents), and modular uplinks up to 100G.

Q2: Can Cisco Catalyst 9000 series switches be managed via the cloud?

Yes. Cisco Catalyst 9000 series switches support cloud monitoring and management through the Cisco Meraki Dashboard, in addition to on-premises orchestration via Cisco Catalyst Center (formerly DNA Center) and traditional Command-Line Interface (IOS XE CLI).

Q3: How do I choose between Cisco Nexus NX-OS mode and ACI mode?

Deploy standalone NX-OS mode if your engineering team relies on traditional BGP/EVPN-VXLAN network designs, Linux-based network automation (Python, Ansible, Terraform), or third-party orchestration tools. Deploy ACI (Application Centric Infrastructure) mode if you manage large-scale multi-pod data centers requiring centralized, policy-driven software-defined automation using Cisco Application Policy Infrastructure Controllers (APIC).

Q4: Does Importgm International Ltd supply original transceivers and cables?

Yes. Importgm provides authentic Cisco SFP-10G-SR, SFP-25G-SR-S, QSFP-100G-SR4, and QSFP-400G optical transceivers, along with genuine Cisco Direct Attach Copper (DAC) and Active Optical Cables (AOC) to guarantee full physical-layer link compliance and manufacturer warranty integrity.

Q5: How can overseas system integrators request a project quotation from Importgm?

Submit your project Bill of Materials (BOM) including exact model numbers, port requirements, and destination port/airport directly through our official corporate portal at www.importgm.com. Our dedicated enterprise engineering and sales desk provides validated, line-item quotations within 24 business hours.
