AXIS M1125-E Network Camera

AXIS M1125-E offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing.

Model: M1125-E
Brand: AXIS
Condition: New In Box
Warranty: 3 Years

Availability:

Quantity:


Inquire Add to Basket

Product Description

Product Description

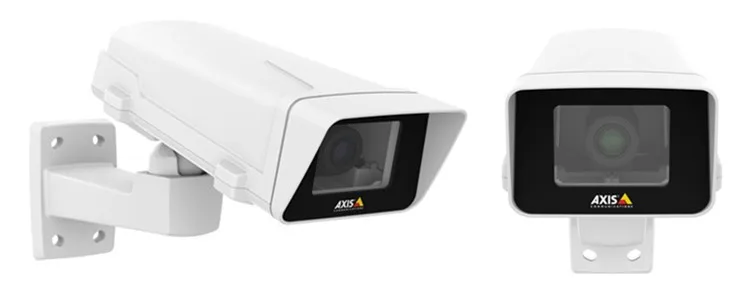

AXIS M1125-E Network Camera Outdoor, affordable and feature-rich with HDTV 1080p

 AXIS M1125-E is an outdoor-ready day and night camera delivering HDTV 1080p video in up to 25/30 frames per second. The camera is fitted with an IR-corrected, varifocal and easily exchangeable CS-mount lens with DC-iris.

 AXIS M1125-E includes Axis Zipstream technology that significantly reduces bandwidth and storage requirements. The camera supports WDR - Forensic Capture, providing video optimized for forensic purposes in scenes with complex light conditions. The lightweight IP66- and IK10-rated camera supports Power over Ethernet to simplify installation, microSD card slot for edge storage, digital input and output ports for connection with external equipment.

 > Outdoor-ready
 > HDTV 1080p in up to 25/30 fps
 > Varifocal CS-mount lens
 > WDR - Forensic Capture
 > Axis Zipstream technology


Product Specification

Image sensor ：Progressive scan RGB CMOS 1/3"

 Lens： Varifocal, IR corrected, CS-mount, DC-iris, 3–10.5 mm Horizontal field of view: 91°–32° Vertical field of view: 49°–18°

 Day and night： Automatically removable infrared-cut filter

 Minimum illumination： Color: 0.25 lux F1.4 B/W: 0.05 lux F1.4

 Shutter time ：1/66500 to 1 s

 Video compression ：H.264 Baseline, Main and High profile (MPEG-4 Part 10/AVC) Motion JPEG

 Resolution: 1920x1080 to 160x90

 Frame rate :Up to 25/30 fps in all resolutions

 Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth, VBR/MBR H.264

 Image settings :WDR – forensic capture: up to 120 dB depending on scene, manual shutter time, compression, color, brightness, sharpness, contrast, white balance, exposure control (including automatic gain control), exposure zones, fine tuning of behavior at low light, rotation: 0°, 90°, 180°, 270°, aspect ratio correction, text and image overlay, privacy mask, mirroring of images

Security : Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, brute force delay protection, signed firmware

Supported protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

 Analytics :Included AXIS Video Motion Detection, active tampering alarm Supported Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap

 Event actions :File upload via FTP, HTTP HTTPS, SFTP, network share and email Notification via email, HTTP, HTTPS, TCP Video recording to edge storage, pre- and post-alarm video buffering, PTZ preset, guard tour, send video clip, send SNMP trap, day/night vision mode, WDR mode, status LED indicator, output port

 Casing  :IP66- and NEMA 4X-rated, IK10 impact-resistant polymer enclosure Color: White NCS S 1002-B

 Sustainability: PVC-free PCB is bromine-free

 Memory :512 MB RAM, 256 MB Flash

 Power  :8-28 V DC or Power over Ethernet (PoE) IEEE 802.3af Class 2, max 5.0 W, typical 3.6 W

 Connectors : RJ45 10BASE-T/100BASE-TX PoE Terminal block for one input and one output (12 V DC output, max. load 15 mA) DC input, terminal block

 Warranty : Axis 3-year warranty and AXIS Extended Warranty option, see axis.com/warranty
