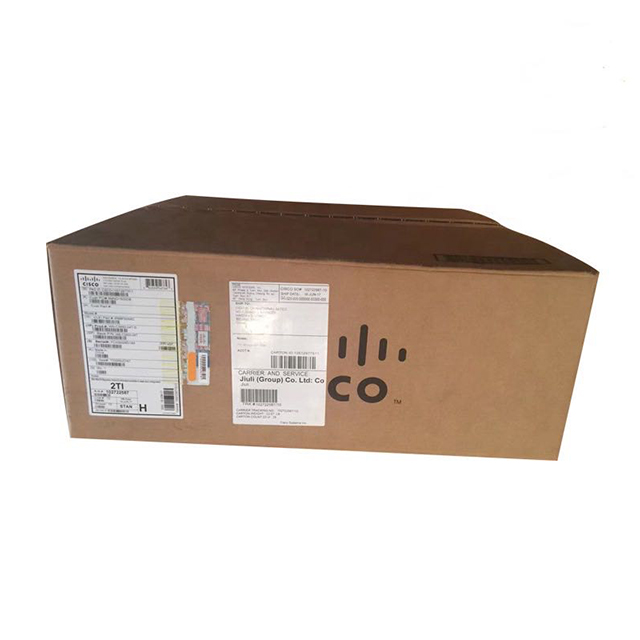

| CTS-SX20N-C-12X-K9 Video Conference System SX20 Quick Set | |
| In front of SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room sizes and configurations - all at a value price; combines a powerful codec, resolution of up to 1080p, two camera choices, and a dual-display in an easy-to-deploy and easy-to-use solution Supports: • Intelligent Proximity for content sharing to mobile devices and wireless sharing from Macs and PCs • Multistreaming (switched conferencing) for enhanced layouts and video enablement on both screens of dual-screen endpoints • In-room control of peripherals from Touch 10 • Registration flexibility on premises or to Webex in the cloud | |
| Part Number : | CTS-SX20N-C-12X-K9 |
| Form Factor | Camera and codec with microphone and remote control; monitor not included |
| Category | Collaboration Devices - Room System |
| Screens | Screen not included |
| Camera | Two camera options: 4x optical zoom (8x with digital) 12x optical zoom Both have: 1920 x 1080 pixels progressive @ 60 fps Far-end |
| camera control Automatic or manual focus, brightness, and white balance | |
| Recommended Number of Participants | 2 to 12 people |
| Video Quality | Up to 1080p60 |
| Resolution | 1920 x 1080 (16:9) |
| Video Standards | H.263 H.263+ H.264 |
| Video Frame Rate | Up to 60 fps |
| Supported PC Resolutions (Content Sharing) | SVGA (800 x 600) up to 1080p (1920 x 1080) at 5fps |
| Software Supported | TC 6.0 and higher, Collaboration Endpoint Software 8.0 or later and Webex Room OS |
| Signaling Protocol | VCS: H.323 and SIP CUCM: SIP Cisco Spark: HTTP, REST APIs |
| Peripherals supported | Remote Control, Touch 8/10 and ISDN Link PrecisionHD 4x and 12x cameras |
| Bandwidth Consumption | H.323/SIP up to 6 Mbps point-to-point MultiSite: Up to 6 Mbps total |
| Audio Standards | G.711 G.722 G.722.1 G.728 G.729ab 64 kbps and 128 kbps AAC-LD mono and stereo OPUS |
| Audio Features | CD-quality 20 KHz mono and stereo Two acoustic echo cancellers Automatic Gain Control (AGC) Automatic noise reduction Active lip |
| synchronization | |
| Physical Dimensions | SX20 Codec Dimensions: • Width: 11.8 inches (30.0 cm) • Height: 1.4 inches (3.4 cm) • Depth: 7.1 inches (18.0 cm) • Weight: 3.1 |
| pounds (1.4 kg) | |
