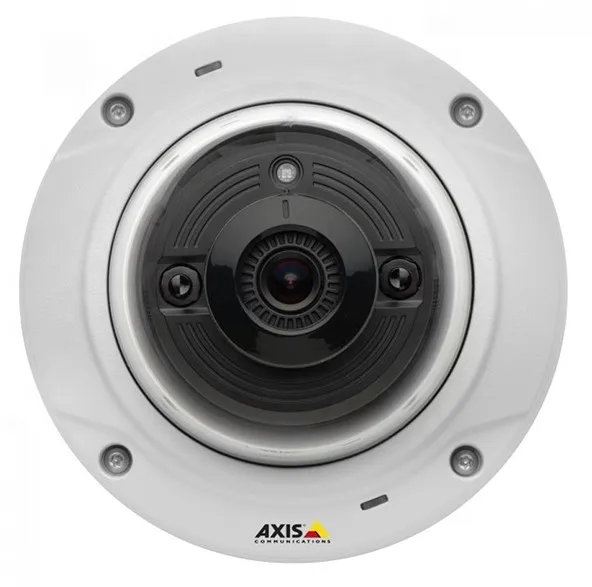

| Camera |
| Image sensor | 1/3.6” (effective) progressive scan RGB CMOS |
| Lens | M12 mount, fixed iris, IR corrected 2.0 mm, F2.0 Horizontal field of view: 106° Vertical field of view: 78° |
| Day and night | Automatically removable infrared-cut filter |
| Light sensitivity/ minimum illumination | Color: 0.3-200000 lux, F2.0, B/W: 0.06 lux, F2.0 |
| Shutter time | 1/30500 s to 2 s |
| Camera angle adjustment | Pan ±175°, Tilt 70°, Rotation ±180° |
| |
| Casing | IP66- and NEMA 4X-rated, IK10 impact-resistant aluminum casing with transparent, polycarbonate cover and dehumidifying membrane,
Encapsulated electronics, Captive screws (resitorx 10) Color: White NCS S 1002-B For repainting instructions of skin cover or
casing and impact on warranty, contact your Axis partner |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Memory | 512 MB RAM, 128 MB Flash |
| Power | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 max 4.5 W, typical 3.4 W |
| Connectors | Shielded male RJ45 10BASE-T/100BASE-TX PoE on a 2 m (6.6 ft) network cable, warranty can be maintained even when cable is cut-for
more information, contact your Axis partner Terminal block for 1 alarm input and 1 output |
| Storage | Support for microSD/microSDHC/microSDXC card SD card encryption Support for recording to network-attached storage (NAS) For SD
card and NAS recommendations see axis.com |
| Approvals | EMC EN 55022 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM
AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24 Safety IEC/EN/UL 60950-22 Environment EN 50581, IEC 60529 IP66, NEMA 250 Type 4X,
IEC 62262 IK10 |
| Video |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline and Main Profile Motion JPEG |
| Resolution | 2048x1536 (3 MP) to 160x120 |
| Frame rate | MP (1600x1200) and HDTV 1080p (1920x1080) capture modes: 25/30 fps with power line frequency 50/60 Hz 3 MP capture mode: 16/20
fps with power line frequency 50/60 Hz |
| Video streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Controllable frame rate and bandwidth VBR/MBR H.264 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, backlight compensation, WDR – dynamic
contrast, text and image overlay, mirroring of images, privacy mask Rotation: 0°, 90°, 180°, 270°, including Corridor Format
Exposure zones, fine tuning of low light behavior |
| Pan/Tilt/Zoom | Digital PTZ, preset positions, guard tour |
| Multi-view streaming | Up to 8 individually cropped out view areas. When streaming 4 view areas and 1 overview in VGA resolution, the frame rate is 16/20 fps per stream with power line frequency 50/60 Hz (3 MP capture mode) |
