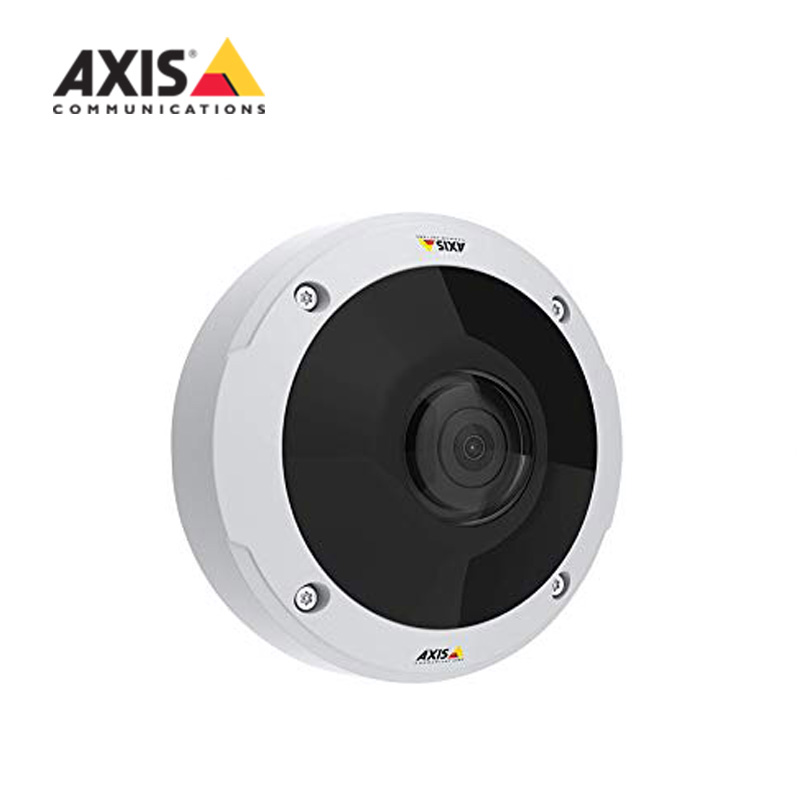

AXIS M3058-PLVE Network Camera

Need great performance in any light – or no light at all? AXIS M3058-PLVE Network Camera delivers a complete 180° or 360° overview, indoors or out, around the clock. Plus it features Axis Zipstream technology for reduced bandwidth and storage without sacrificing the forensic detail you need. AXIS M3057-PLVE is perfect for stores, hotels, office, banks, schools and hospitals. Or anywhere you need a complete overview 24/7.

Model:
M3058-PLVE
Brand:
AXIS
Lead time:
4-6 Weeks
Condition:
New Original
Warranty:
3 Years

Availability:

Quantity:


Inquire Add to Basket

Product Description

Product Description

AXIS M3058-PLVE Network Camera

12 MP utdoor-ready dome with 360° panoramic view and IR illumination

 AXIS M3057-PLVE Network Camera delivers outstanding video in any light conditions, using Axis-developed Forensic WDR and Lightfinder technologies. With its integrated, automatically adaptable OptimizedIR illumination, this versatile camera even sees in the dark. The camera offers 360° overview as well as dewarped views. AXIS M3057-PLVE is vandal resistant (IK10) and discreetly designed. The optional black skin, which is also easily repaintable, can be used to further blend the camera into its environment. The camera has good capacity for analytics. It comes factory-focused and is designed for easy installation

 > 6 MP sensor > OptimizedIR illumination > Lightfinder technology > Forensic WDR > Zipstream for reduced bandwidth and storage

Product Specification

 AXIS M3058-PLVE Network Camera

Image sensor :   12 MP (3072x2048) 1/1.8” progressive scan RGB CMOS

 Lens: Fixed iris, fixed focus, 1.6 mm, F2.0 Horizontal field of view: 185° Vertical field of view: 185°

 Day and night: Automatically removable infrared-cut filter

 Minimum illumination: Color: 0.16 lux at 50 IRE F2.0 B/W: 0.03 lux at 50 IRE F2.0 0 lux with IR illumination on

 Shutter time :1/100 000 s to 2 s

 Camera angle adjustment :Rotation n ±180°

  Video compression :H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG

 Resolution:
Overview: 2992x2992 to 160x160 Panorama: 3584x1344 to 192x72 Double panorama: 3584x2688 to 256x144 Quad view: 3584x2688 to 256x144 View area 1-4, 16:9: 2048×1152 to 256x144, 4:3: 2048x1536 to 320x240 Panorama corner left/right: 3200x1600 to 192x72 Double panorama corner: 2880x2880 to 320x240 Corridor: 2560x1920 to 256x144

 Frame rate: 360° overview only, up to 2048x2048 without WDR: 50/60 fps @ 50/60 Hz 360° overview and dewarped views up to max resolution with WDR: up to 25/30 fps @ 50/60 Hz

 Video streaming :Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264

 HDMI output :HDMI 1080p @ 50/60 fps (50/60 Hz

 Image settings :Compression, color, brightness, sharpness, contrast, local contrast, white balance, exposure control (including automatic     gain control) exposure zones, fine tuning of behavior at different light levels, forensic WDR: up to 120 dB depending on scene, dynamic text and image overlay, privacy masks, mirroring of images, rotation: 0°, 180°, including Corridor Format

 Pan/Tilt/Zoom :Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views, preset positions, guard tour

 Security: Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware

 Supported protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, HDMI 1.4b

 Languages: English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Polish, Portuguese, Traditional Chinese

 Warranty :Axis 3-year warranty and AXIS Extended Warranty option, see axis.com/warranty

Video management software :AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners available at axis.com/vms
