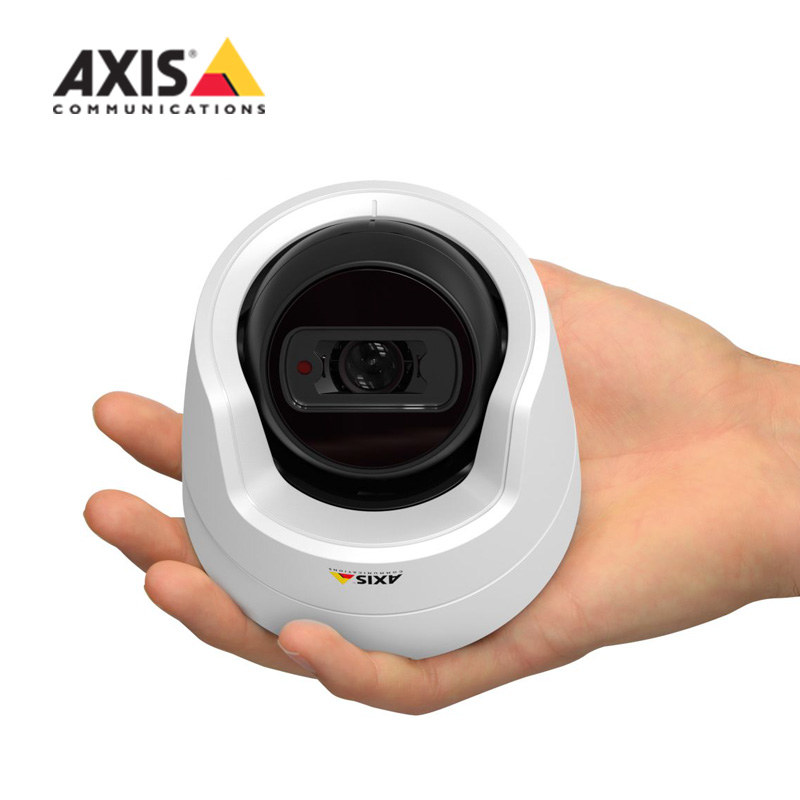

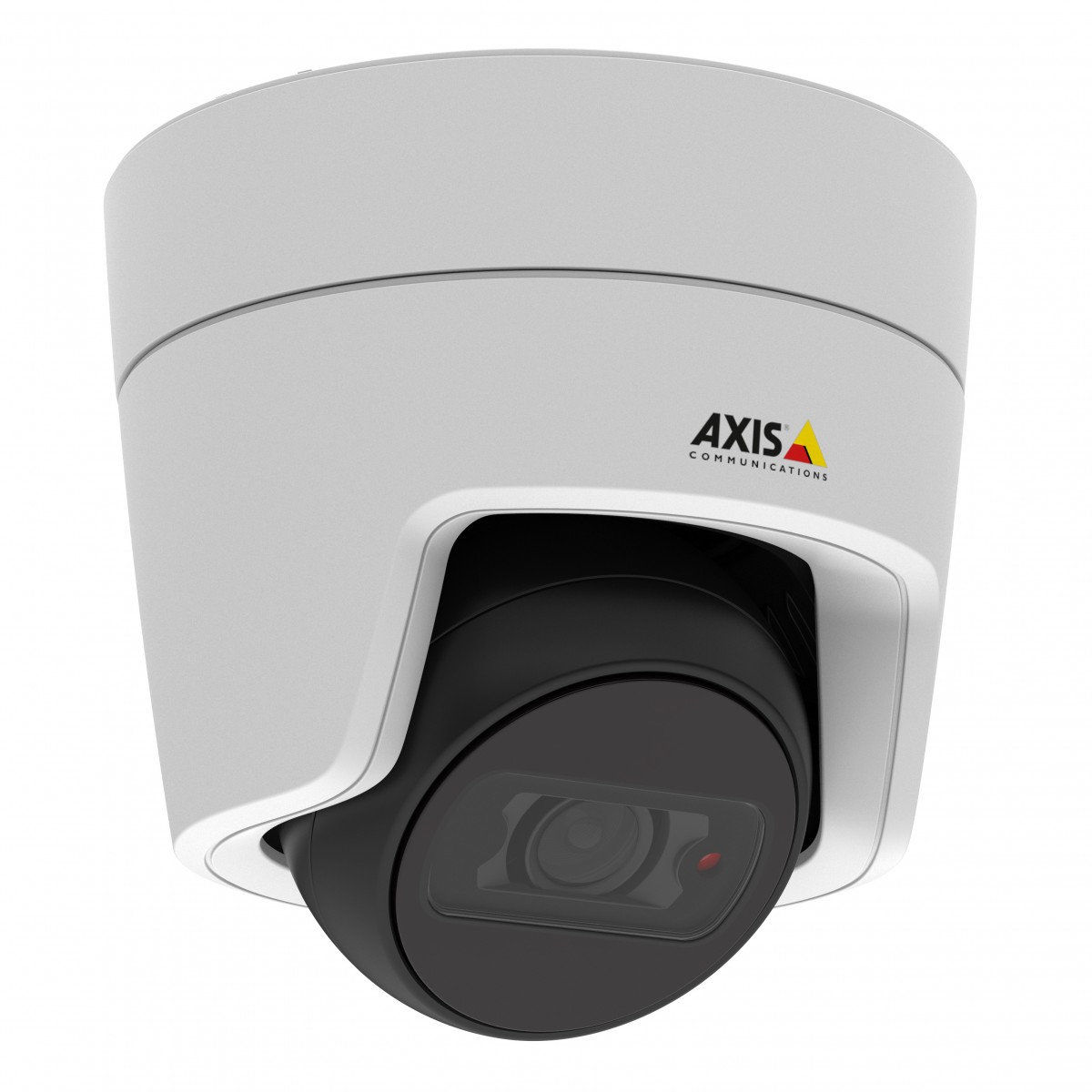

AXIS M3104-L Network Camera

AXIS M3104-L is a flexible mini dome that gives you built-in IR illumination and HDTV 720p video quality at an attractive price. It’s perfect at the back entrance of a store or hotel, for instance.

Model:
M3104-L
Brand:
AXIS
Lead time:
4-6 Weeks
Condition:
New Original
Warranty:
3 Years

Availability:

Quantity:


Inquire Add to Basket

Product Description

Product Description

Overview


Built-in IR illumination

 HDTV 720p video quality

 Axis’ Zipstream technology

 Supports video analytics

 Discreet and flexible

Fast, easy, cost-effective installation

Discreet HDTV 720p video surveillance with built-in IR illumination

 AXIS M3104-L is an affordable, discreet mini dome with a -faced design that suppresses Using WDR technology and IR illumination, it provides compact HDTV surveillance even in challenging light conditions or total darkness. The smart design allows for easy repainting, or using the optional black accessory casing to blend the camera into its environment. Axis Zipstream technology reduces bandwidth and storage requirements. A variety of accessories are available for and easy installation.


More light – or less?

 With its built-in IR illumination AXIS M3104-L is ideal for situations where it’s sometimes dark or the lighting can be poor.  Its innovative flat-faced design suppresses light reflections to maximize image usability when recording in the dark. AXIS M3104-L also offers Wide Dynamic Range (WDR) – Forensic Capture for excellent detail when light levels vary greatly, for example at entrances with bright daylight outside and dimmer light inside.

 AXIS M3104-L Network Camera

Image sensor   1/2.8" progressive scan RGB CMOSLens
 M12 mount, Fixed iris, Fixed focus 2.8 mm, F2.0 Horizontal field of view: 80° Vertical field of view: 45° Minimum illumination Color: 0.2 lux at 50 IRE, F2.0 Shutter time 1/66500 s to 2 s
Camera angle adjustmentPan ±175°, Tilt 70°, Rotation ±180° Video compressionH.264 (MPEG-4 Part 10/AVC) Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEGResolution 1280x720 to 176x120Frame rate Up to 25/30 fps with power line frequency 50/60 HzVideo streaming Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/MBR H.264/H.265


Casing Aluminum and plastic casing Color: White NCS S 1002-B For repainting instructions of cover ring, see www.axis.com.Sustainability PVC free 70% recycled plasticsEvent triggers  Analytics, Edge storage events, Virtual inputs through APIMemory 512 MB RAM, 256 MB FlashPower Class 2 max 4.5 W, typical 3.4 WConnectors RJ45 10BASE-T/100BASE-TX PoEStorage Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see www.axis.comOperating conditions0 °C to 45 °C (32 °F to 113 °F) Humidity 15-85% RH (non-condensing)Storage conditions-40 °C to 65 °C (-40 °F to 149 °F)
