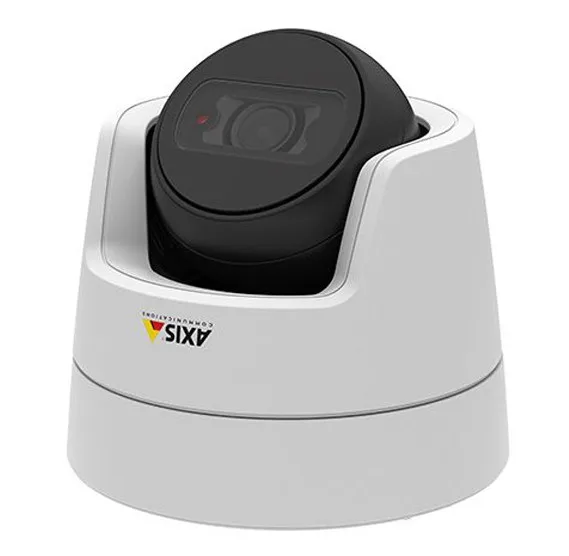

AXIS M3105-LVE Network Camera

AXIS M3105-LVE is a flexible mini dome that gives you built-in IR illumination and HDTV 1080p video quality at an attractive price. It’s suitable for outdoor use and perfect at the back entrance of a store, restaurant or hotel, for instance.
  • M3105-LVE
  • AXIS
  • 4-6 Weeks
  • New Original
  • 3 Years
Quantity:
Product Description
Discreet, outdoor-ready HDTV 1080p video surveillance with built-in IR illumination
AXIS M3105-LVE is an affordable, outdoor-ready fixed mini dome with a flat-faced design that suppresses reflections. Using WDR
technology and IR illumination, it provides compact HDTV surveillance even in challenging light conditions or total darkness. The
smart design allows for easy repainting, or using the optional black accessory casing to blend the camera into its environment.
Axis Zipstream technology reduces bandwidth and storage requirements. A variety of accessories are available for flexible and easy
installation.

Camera
Image sensor
1/2.8" progressive scan RGB CMOS
Lens
M12 mount, Fixed iris, Fixed focus 2.8 mm, F2.0 Horizontal field of view: 115° Vertical field of view: 64°
Minimum illumination
Color: 0.2 lux at 50 IRE, F2.0 B/W: 0.04 lux at 50 IRE, F2.0 0 lux with IR illumination on
Camera angle adjustment
Pan: ±180° Tilt: 0° to 60° (0° = lens directed at a right angle to camera base) Rotation: ±95° Can be directed in any direction
and see the wall/ceiling
Shutter time
1/66500 s to 2 s
Day and night
Automatically removable infrared-cut filter
General
Casing
IP66-, NEMA 250 Type 4X, and IK08-rated, ASA polymer casing Encapsulated electronics, Captive screws (Torx 10) Color: White NCS S
1002-B For repainting instructions and impact on warranty, contact your Axis partner
Languages
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
Memory
512 MB RAM, 256 MB Flash
Power
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 4.2 W, Max.: 6.2 W
Connectors
RJ45 10BASE-T/100BASE-TX PoE
Storage
Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage
(NAS) For SD card and NAS recommendations see axis.com
Approvals
EMC EN 55022 Class B, EN 55024, IEC 62471, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class
B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14,
IEC 60068-2-6, IEC 60068-2-27, IEC/EN 62262 IK08, IEC/EN 60529 IP66, NEMA 250 Type 4X, IEC 60721-3-4 Class 4M3 Safety IEC/EN/UL
62368-1, IS 13252 Network NIST SP500-267
Video
Video compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Resolution
1920x1080 to 176x120
Frame rate
Up to 25/30 fps with power line frequency 50/60 Hz
Video streaming
Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate
and bandwidth VBR/MBR H.264
Image settings
Compression, Color, Brightness, Sharpness, Contrast, Local contrast, White balance, Exposure control, WDR – Forensic Capture: up
to 115 dB depending on scene. Rotation: 0°, 90°, 180°, 270° including Corridor Format, Text and image overlay, Privacy masks,
Mirroring of images
Pan/Tilt/Zoom
Digital PTZ
