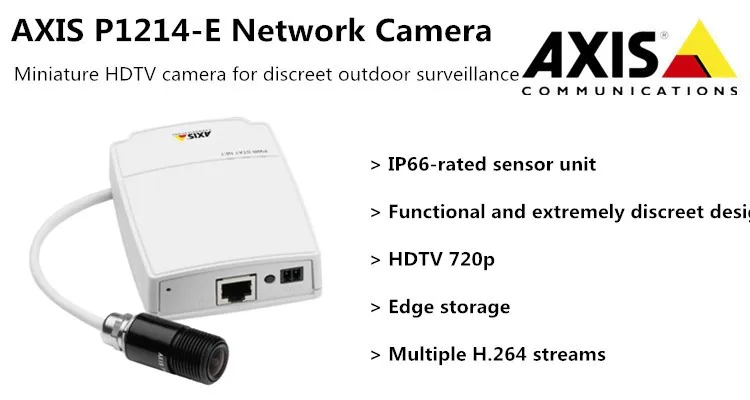

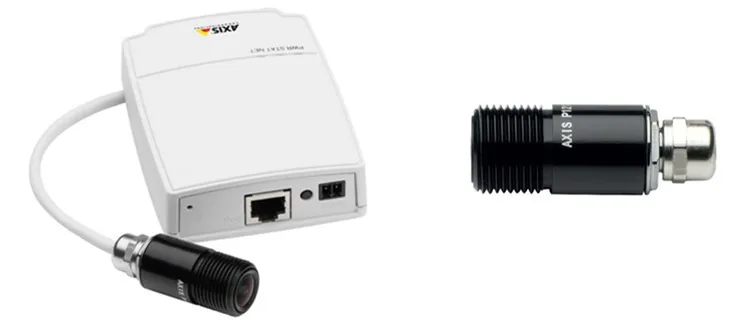

AXIS P1214-E Network Camera
|
| Camera |
| Image sensor | Progressive scan RGB CMOS 1/4" |
| | Fixed iris, Fixed focus 2.8 mm, F2.0
Horizontal angle of view: 81°
Vertical angle of view: 44°
|
| Light sensitivity | 1.0-10000 lux |
| Shutter time | 1/24500 s to 1/6 s
|
| Video |
| | H.264 (MPEG-4 Part 10/AVC), Motion JPEG |
| Resolution | 1280x720 to 320x180 |
| Frame rate | Up to 25/30 fps (50/60 Hz) in all resolutions
|
| | Multiple, individually configurable streams in H.264 and
Motion JPEG
Controllable frame rate and bandwidth, VBR/CBR H.264 |
| | Compression, Color, Brightness, Sharpness, Contrast, White
balance, Exposure control, Exposure zones, Backlight
compensation, Fine tuning of behavior at low light, Rotation,
Text and image overlay, Mirroring of images, Privacy mask, Axis'
Corridor Format |
| Network |
| | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management |
| | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| System integration |
Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection. ONVIF Profile S
|
| | Video motion detection, Active tampering alarm Support for AXIS Camera Application Platform enabling installation of AXIS Video Motion Detection 3, AXIS Cross Line Detection, AXIS Digital Autotracking and third-party applications
|
| Event triggers | Analytics, External inputs, Video loss |
| | File upload: FTP, SFTP, HTTP, HTTPS, network share and email Notification: email, HTTP, HTTPS and TCP External output activation Video recording to edge storage Pre- and post-alarm video buffering
|
| Built-in installation aids | Pixel counter |
| General |
| | Main unit: Polycarbonate casing
Sensor unit: Metal casing (aluminum) |
| Memory | 256 MB RAM, 128 MB Flash |
| | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2 (max 6.49 W)
8-28 V DC max 4.7 W
|
| | RJ45 for 10BASE-T/100BASE-TX PoE
RJ12 for the sensor unit
Terminal blocks for power, 1 alarm input and 1 output |
| IR illumination | Power-efficient, long-life 850 nm IR LEDs. Range of reach up to
15 m (50 ft) depending on scene |
| | Support for microSD/microSDHC/microSDXC card
Support for recording to dedicated network-attached storage (NAS) |
| | -20 °C to 50 °C (-4 °F to 122 °F)
Main unit: Humidity 10-85% RH (non-condensing)
Sensor unit: Humidity 10-85% RH (non-condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F) |
| | EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
EN 61000-6-1, FCC Part 15 Subpart B Class B, ICES-003 Class B,
VCCI Class B, C-tick AS/NZS CISPR 22 Class B,
KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6 Class 4M4,
IEC 60068-2-27 Class 4M3, 60068-2-78 Class 3K3
|
| | 20 x 52 mm (13/16 x 2 1/16 in) |
| Weight | Main unit: 109 g (0.24 lb)
Sensor unit: 250 g (0.55 lb)
|
| Included accessories | Mounting kit, Installation Guide, Windows decoder 1-user
license, AVHS Authentication key
|
| | Mounting brackets, AXIS T8120 Midspan 15 W 1-port, AXIS
P7701 Video Decoder, AXIS P8221 Network I/O Audio Module
|
| Video management software | AXIS Camera Companion, AXIS Camera Station, Video
management software from Axis' Application Development
|
| Languages | English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Traditional Chines |
| Warranty | Axis 3-year warranty |
