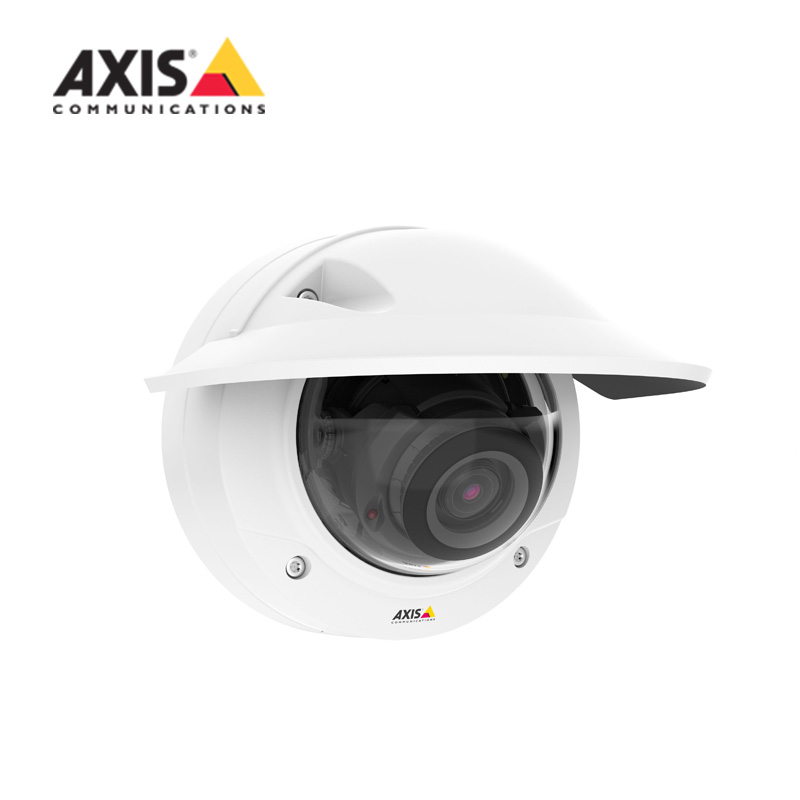

| Camera |
| Image sensor | Progressive scan RGB CMOS 1/3” |
| Lens | Varifocal, 3–10 mm, F1.4 Horizontal field of view: 90°-34° Vertical field of view: 50°–20° Remote focus and zoom, P-Iris control,
IR corrected |
| Minimum illumination | HDTV 1080p 25/30 fps with WDR – forensic capture and Lightfinder: Color: 0.16 lux at 50 IRE, F1.4 B/W: 0.03 lux at 50 IRE, F1.4; 0
lux with IR illumination on HDTV 1080p 50/60 fps: Color: 0.32 lux at 50 IRE, F1.4 B/W: 0.06 lux at 50 IRE, F1.4; 0 lux with IR
illumination on |
| Camera angle adjustment | Pan ±180°, tilt -40 to +75°, rotation ±95° |
| Shutter time | 1/66500 s to 1 s |
| Day and night | Automatically removable infrared-cut filter |
| |
| Casing | IP66- and NEMA 4X-rated, IK10 impact-resistant casing with hard-coated dome and dehumidifying membrane Encapsulated electronics
and captive screws Color: white NCS S 1002-B For repainting instructions of casing and impact on warranty, contact your Axis
partner |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Power consumption: max 11 W, typical 5.6 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised alarm input and 1 output (12 V DC
output, max load 25 mA) Audio: 4-pin 2.5 mm (0.098 in) terminal block for audio in and out |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage
(NAS) For SD card and NAS recommendations see axis.com |
| Approvals | EMC EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class
A, VCCI Class A, RCM AS/NZS CISPR 22 Class A Safety IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN 62471 Environment IEC 60068-2-1,
IEC 60068-2-2, IEC 60068-2-6 (vibration), IEC 60068-2-14, IEC 60068-2-27 (shock), IEC 60068–2–30, IEC 60068-2-78, IEC/EN 60529
IP66, NEMA 250 Type 4X, IEC/EN 62262 IK10 Network NIST SP500-267 |
| Video |
| Video compression | H.264 Baseline, Main and High Profile (MPEG-4 Part 10/AVC) Motion JPEG |
| Resolution | 1920x1080 HDTV 1080p to 160x90
|
| | With WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz
|
| Video streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate
and bandwidth VBR/ABR/MBR H.264 |
| Image settings | Compression, color, brightness, sharpness, contrast, local contrast, white balance, exposure control (including automatic gain
control), exposure zones, fine tuning of behavior at different light levels, WDR - forensic capture: up to 120 dB depending on
scene, text and image overlay, mirroring of images, privacy masks Rotation: 0°, 90°, 180°, 270°, including Corridor Format |
| Pan/Tilt/Zoom | Digital PTZ, preset positions |
