Product Overview
15 MP, 360° multidirectional camera, with one IP address
360° IR illumination
Remote zoom and focus
Flexible positioning of four varifocal camera heads
Axis Zipstream for reduced bandwidth and storage needs

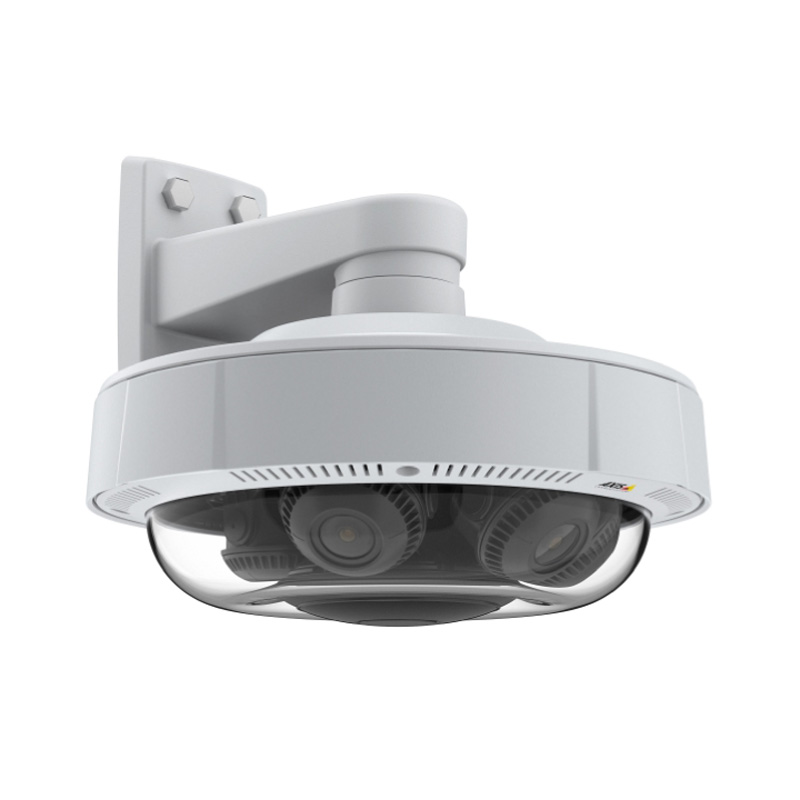

AXIS P3719-PLE lets you easily cover four different areas with a single camera, around the clock and even in challenging lighting. You'll be able to count on both excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. It's ideal for unobstructed and far-reaching surveillance of expansive outdoor areas, road intersections and at outer corners of buildings.
With AXIS P3719-PLE, you get the benefits of four cameras, while paying for just one. That means there's one camera to install, one cable to draw, and one IP address, one video management software (VMS) license and just one license for any analytics you choose to install.
AXIS P3719-PLE also offers remote zoom and focus for fast, accurate installation. It can be powered by PoE allowing you to use existing cabling, further reducing costs. Plus, Axis Zipstream technology for savings of up to 50% on bandwidth and storage. The bottom line? AXIS P3719-PLE will save you money on both initial installation and long-term operations.
AXIS P3719-PLE offers four channels with Quad HD resolution per channel, at a frame rate of 30 fps. It features WDR for clarity when there are both dark and light areas in the scene.
AXIS P3719-PLE has 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. So you'll enjoy clear, reflection-free footage in low light or complete darkness and undistorted color during the day. Plus, it's weather resistant thanks to an integrated weathershield with an IP66/IP67 rating.
The beauty of AXIS P3719-PLE lies in its design, with four varifocal camera heads that can be moved and rotated to capture scenes in various directions in wide or zoomed-in views. AXIS P3719-PLE delivers a 360° overview or a combination of overviews and close-ups depending on your needs. In addition, the camera's 5 MP sensors can be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target.
The camera can be mounted on corners of buildings or on poles and parapets using AXIS T94N01D Pendant Kit. When corner-mounted, AXIS P3719-PLE provides 270° coverage using 3 camera heads, while the fourth camera captures the scene right below the camera - avoiding blind spots.
Product Specification
| Image sensor | 4 x 1/2.5" progressive scan RGB CMOS |
| Lens | Varifocal, 3-6 mm, F1.8-2.6 4 x 1440p capture mode: Horizontal field of view: 101°-49° Vertical field of view: 54°-29° Diagonal field of view: 116°-58° Motorized focus, motorized zoom |
| Minimum illumination | Color: 0.20 lux at 50 IRE F1.8 B/W: 0.04 lux at 50 IRE F1.8, 0 lux with IR illumination on |
| Shutter time | 1/66500 s to 1/5 s with 50/60 Hz |
| Video compression | H.264 (MPEG-4 Part 10/AVC), Baseline, Main and High Profiles Motion JPEG |
| Resolution | 4 x 2560x1440 (4 x QHD 1440p) to 80x60 |
| Frame rate | Up to 25/30 fps (50/60 Hz |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
| Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Event triggers | Analytics,edge storage events |
| Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
Product Overview
15 MP, 360° multidirectional camera, with one IP address
360° IR illumination
Remote zoom and focus
Flexible positioning of four varifocal camera heads
Axis Zipstream for reduced bandwidth and storage needs
AXIS P3719-PLE lets you easily cover four different areas with a single camera, around the clock and even in challenging lighting. You'll be able to count on both excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. It's ideal for unobstructed and far-reaching surveillance of expansive outdoor areas, road intersections and at outer corners of buildings.
With AXIS P3719-PLE, you get the benefits of four cameras, while paying for just one. That means there's one camera to install, one cable to draw, and one IP address, one video management software (VMS) license and just one license for any analytics you choose to install.
AXIS P3719-PLE also offers remote zoom and focus for fast, accurate installation. It can be powered by PoE allowing you to use existing cabling, further reducing costs. Plus, Axis Zipstream technology for savings of up to 50% on bandwidth and storage. The bottom line? AXIS P3719-PLE will save you money on both initial installation and long-term operations.
AXIS P3719-PLE offers four channels with Quad HD resolution per channel, at a frame rate of 30 fps. It features WDR for clarity when there are both dark and light areas in the scene.
AXIS P3719-PLE has 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. So you'll enjoy clear, reflection-free footage in low light or complete darkness and undistorted color during the day. Plus, it's weather resistant thanks to an integrated weathershield with an IP66/IP67 rating.
The beauty of AXIS P3719-PLE lies in its design, with four varifocal camera heads that can be moved and rotated to capture scenes in various directions in wide or zoomed-in views. AXIS P3719-PLE delivers a 360° overview or a combination of overviews and close-ups depending on your needs. In addition, the camera's 5 MP sensors can be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target.
The camera can be mounted on corners of buildings or on poles and parapets using AXIS T94N01D Pendant Kit. When corner-mounted, AXIS P3719-PLE provides 270° coverage using 3 camera heads, while the fourth camera captures the scene right below the camera - avoiding blind spots.
Product Specification
| Image sensor | 4 x 1/2.5" progressive scan RGB CMOS |
| Lens | Varifocal, 3-6 mm, F1.8-2.6 4 x 1440p capture mode: Horizontal field of view: 101°-49° Vertical field of view: 54°-29° Diagonal field of view: 116°-58° Motorized focus, motorized zoom |
| Minimum illumination | Color: 0.20 lux at 50 IRE F1.8 B/W: 0.04 lux at 50 IRE F1.8, 0 lux with IR illumination on |
| Shutter time | 1/66500 s to 1/5 s with 50/60 Hz |
| Video compression | H.264 (MPEG-4 Part 10/AVC), Baseline, Main and High Profiles Motion JPEG |
| Resolution | 4 x 2560x1440 (4 x QHD 1440p) to 80x60 |
| Frame rate | Up to 25/30 fps (50/60 Hz |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
| Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Event triggers | Analytics,edge storage events |
| Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
