Product Overview
Outdoor-ready
Compact, rugged design
HDTV video quality
Traffic Light mode
Edge storage
AXIS P3905-RE has support for HDTV 1080p. The camera is specially adapted to respond quickly to changes in light levels, ensuring that high image quality is maintained. Traffic Light mode helps to better distinguish colors of traffic lights in very dark scenes. The use of progressive scan also produces clearer images of moving objects. The pixel counter helps verify that the pixel resolution of an object or face meets regulatory or specific customer requirements.
The camera is designed for quick and reliable installation. The desired field of view and a leveled image can be easily achieved by using the supplied lens tool to direct and rotate the ball that holds the lens and image sensor.Power over Ethernet support further simplifies installation since only one cable is needed for carrying power and video.

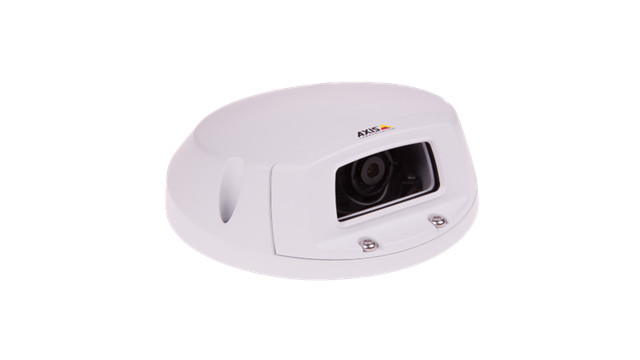

AXIS P3905-RE is a high-performance network camera specifically designed for mobile video surveillance in buses, trains, subway cars, and emergency vehicles. The camera has protection against dust and water, and can withstand tough conditions such as vibrations, shocks, bumps, and temperature fluctuations.
End-to-end solution provided by Axis - maximum output for rapid deployment CCTV
Product Specification
| Image sensor | 1/2.8" Progressive scan RGB CMOS |
| Lens | 6 mm, F1.6 Horizontal field of view: 56° Vertical field of view: 33° M12 mount, fixed iris See Optional accessories for exchangeable lenses |
| Minimum illumination | Color: 0.2 lux |
| Shutter time | 1/28000 s to 2 s with 50 Hz 1/33500 s to 2 s with 60 Hz |
| Video compression | H.264 (MPEG-4 Part 10/AVC), Baseline, Main and High Profiles Motion JPEG |
| Resolution | 1920x1080 to 160x90 |
| Frame rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
| Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Event triggers | Analytics,edge storage events |
| Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
