Product Overview
HDTV 1080p with 32x optical zoom
Forensic WDR and Lightfinder 2.0
Signed firmware and secure boot
Focus recall and EIS
Zipstream with support for H.264 and H.265

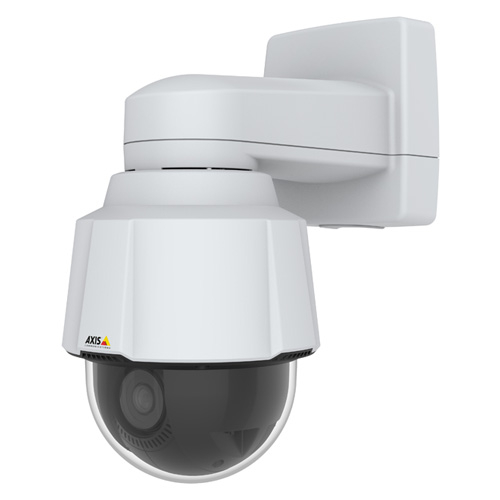

This PTZ camera is packed with enhanced security functionality to safeguard your system and prevent unauthorized access. Signed firmware and secure boot guarantees that the firmware hasn't been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
This versatile camera with IP66, NEMA 4X and IK10 ratings can handle temperatures ranging from -30°C to 50°C (-22°F to 122°F). Based on new generation chip, it offers extended processing power for handling of advanced analytics. And thanks to Axis Zipstream technology with H.264 and H.265 it preserves all the important details while significantly lowering bandwidth and storage requirements. It supports two-way audio, I/O ports, PoE+ and 24 V AC/DC.
Product Specification
Image sensor | 1/2.8" progressive scan RGB CMOS |
Lens | Varifocal, 4.3-137.6 mm, F1.4 - 4.0 Horizontal field of view: 58.3°- 2.4° Vertical field of view: 35.5°- 1.4° Including EIS, barrel and pincushion distortion correction Autofocus and auto-iris |
Minimum illumination | Color: 0.1 lux at 30 IRE F1.4 B/W: 0.01 lux at 30 IRE F1.4 |
Shutter time | 1/66500 s to 2 s |
Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
Resolution | 1920x1080 HDTV 1080p to 320x180 |
Frame rate | Up to 60/50 fps (60/50 Hz) in all resolutions |
Video streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
Event triggers | Analytics,edge storage events |
Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
