Out-of-box optimized field of view in 3 MP resolution - no blind spots
Elegant and compact design in brushed steel and white finishes
Vandal-resistant (IK10) and IP66-rated dust protection
PoE over 2-wire for elevator installations
Support for Portcast devices with AXIS T61 Series

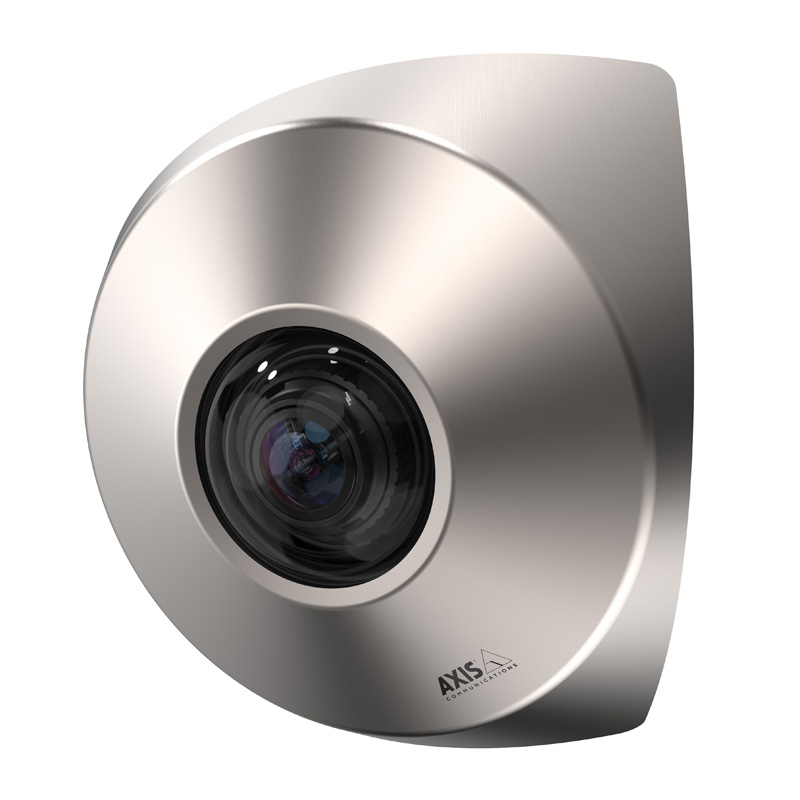

AXIS P91 Network Cameras are indoor, corner-mounted cameras specifically designed to provide the best field of view and ensure no area is left uncovered. These compact and discreet cameras deliver up to 3 MP resolution and are available in an elegant, brushed steel model (AXIS P9106-V Brushed Steel) and a ligature-resistant (also known as anti-ligature), matte white model (AXIS P9106-V White).
Installation is quick and easy with out-of-the-box optimized corner-to-corner coverage to save time and costs. Even in scenes with strong backlight, the combination of WDR and Zipstream means all the important details can be captured while lowering bandwidth and storage requirements by 50% or more.
Available skin cover to blend with any environments.
AXIS P9106-V Network Cameras can cover up to 130 degrees horizontally and 95 degrees vertically, without blind spots. These cameras are resistant to shock and vibration and are delivered factory-focused so there's no manual focusing or lens adjustment required.
The elegant and compact design of AXIS P9106-V Brushed Steel makes it ideal for video surveillance in premises with high-end interiors. The brushed steel model benefits from no visible screws, helping it to blend in with stylish interior design, especially seen in most elevators. Furthermore, the casing can be easily re-painted in any color to blend in with specific surroundings.
The ligature-resistant (anti-ligature) design of the AXIS P9106-V White helps prevent self-harm. It's ideal for video surveillance of high security environments like police custody suites, correctional facilities, psychiatric wards, as well as hospital recovery rooms, waiting rooms, and interview rooms.
In many corner-mounting scenarios, installers are often challenged with wall or ceiling surfaces that are not mounting-friendly, such as mirrors, acrylic glass, and windows. AXIS P9106-V has been specifically designed to allow corner-mounting using only 2 of the 3 surfaces (wall + wall or wall + ceiling). The cameras are also easy to install alone, thanks to innovative screw gaskets that hold the screws in place during mounting.
In environments with unique infrastructure requirements, AXIS P9106-V has been designed and tested to be compatible with multiple media converter options such as PoE over Coax (see AXIS T864 PoE+ over Coax Series), or PoE over 2-wire (see 2N 2Wire). This is especially helpful when installing the camera in elevators, where PoE over 2-wire can be used to connect to the existing travelling cables.
Without the need for heavy investment in re-cabling, installation is fast and flexible, keeping costs low and avoiding downtime.
|Image sensor||1/3" progressive scan RGB CMOS|
|Lens||M12 mount, fixed focus, fixed iris 1.8 mm, F2.4 Horizontal field of view: 130° Vertical field of view: 95°|
|Minimum illumination||Color: 0.35 lux at 50 IRE F2.4|
|Shutter time||1/143000 to 2 s|
|Video compression||H.264 (MPEG-4 Part 10/AVC), Baseline, Main and High Profiles Motion JPEG|
|Resolution||2016x1512 to 320x240 (4:3) 1920x1080 to 640x360 (16:9)|
|Frame rate||Up to 25/30 fps (50/60 Hz) in all resolutions|
|Video streaming||Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265|
|Image settings||Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR|
|Security||Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection|
|Supported protocols||IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP|
|Analytics||Included AXIS Video Motion Detection, active tampering |
Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications,
|Event triggers||Analytics,edge storage events|
|Event actions||File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video|
|Languages||English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese|
