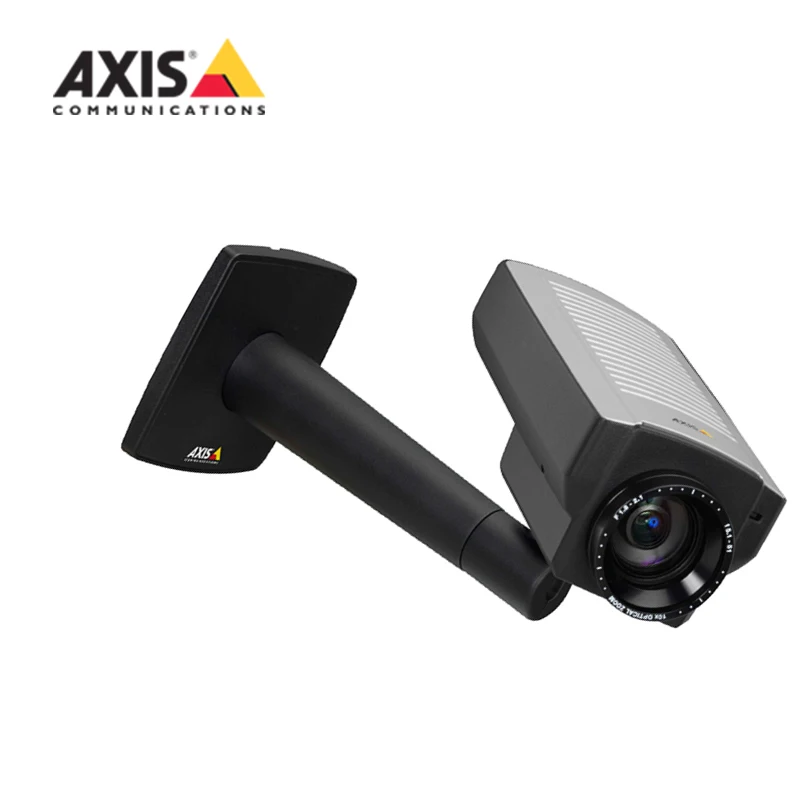

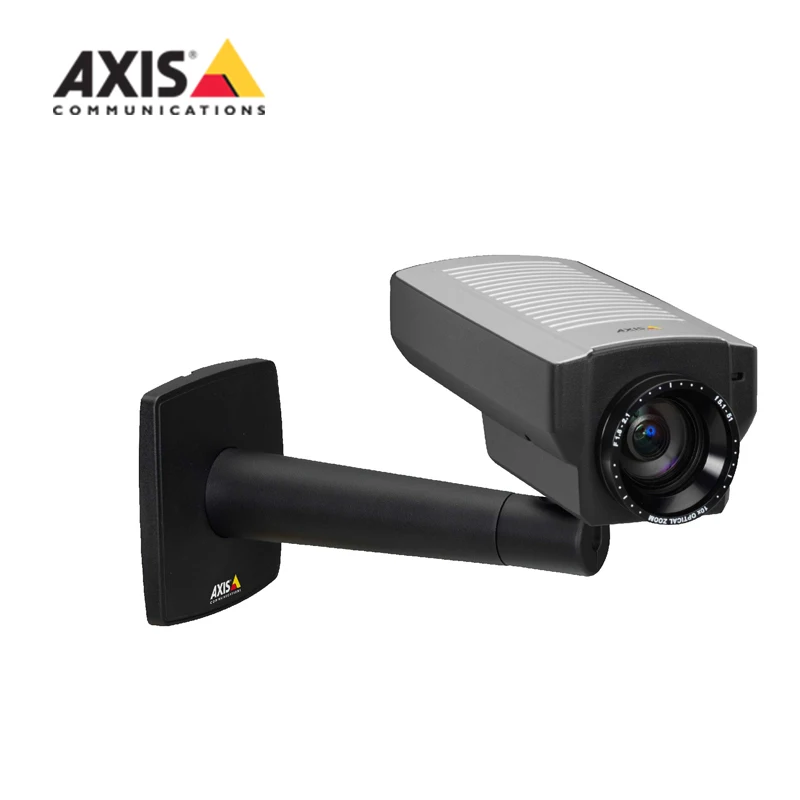

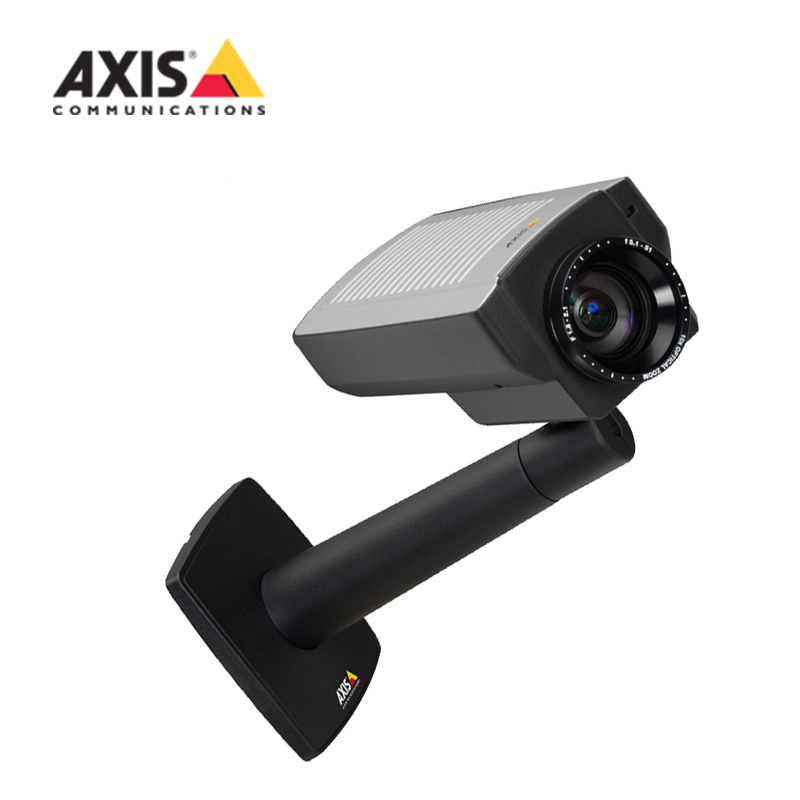

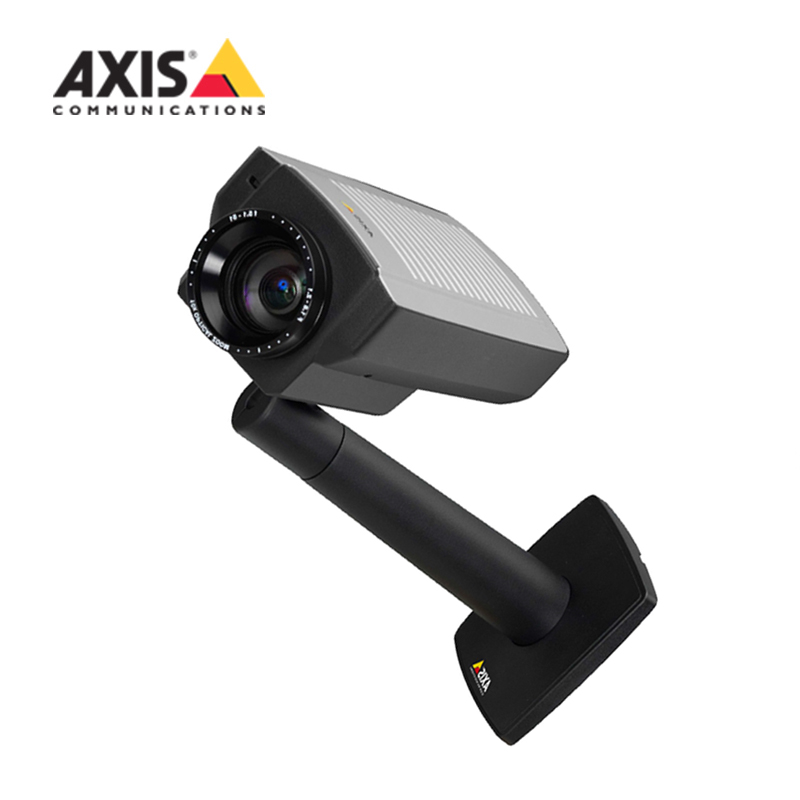

AXIS Q1775 Network Camera Flexible Day/Night Camera For Excellent Video And Audio

AXIS Q1775 Fixed Network Camera is an indoor, day and night HDTV camera that covers great distances, providing both wide overviews and detailed images for identification purposes. To increase mobile flexibility, the camera even supports a serial connector for installation on a pan-tilt motor.
  • Q1775
  • AXIS
  • New Original
  • 3 Years
Product Description
AXIS Q1775 Network Camera

Flexible day/night camera for excellent video and audio
AXIS Q1775 is a day and night HDTV 1080p camera that covers great distances, providing both wide overviews and detailed images for identification purposes. The camera features 10x optical zoom, 12x digital zoom and autofocus. With its built-in microphone, it provides two-way audio in 48 kHz. AXIS Q1775 offers video motion detection, active tampering alarm and the Gatekeeper functionality, which makes the camera zoom in automatically when there is activity in the scene, and then zoom out after a pre-set time interval. The camera delivers multiple, individually configurable streams in H.264 and Motion JPEG, and provides edge storage for optional local video storage.
> Complies with SMPTE standards for HDTV 1080p > WDR – Dynamic Capture, 130dB@30fps and 90dB@60fps > 10x optical zoom and autofocus > Excellent image quality in all lighting conditions > Intelligent video capabilities
Product Specification
AXIS Q1775 Network Camera
Image sensor: 1/2.8" progressive scan CMOS

Lens: 3.8–38 mm, F1.8–3.4 Horizontal field of view 67.8°–8.1° Vertical field of view 41.2°–4.5° Autofocus, Automatic day/night IR filter, Focus near limit: 320 mm (wide) or 800 mm (tele), M37x0.75 mounting thread for optional lens adaptor

Minimum illumination:Color: 0.23 lux B/W: 0.05 lux

Shutter time :1/10000 s to 1 s

Pan/Tilt/Zoom :Zoom: 10x optical and 12x digital, total 120x

Video compression: H.264 (MPEG-4 Part 10/AVC) Baseline, High, and Main Profiles Motion JPEG

Resolution: 1920x1080 HDTV 1080p to 160x100 Video out: Standard NTSC/PAL for installation

Frame rate :Up to 60/50 fps (60/50 Hz) in all resolutions

Video streaming :Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264

Image settings: Compression, Brightness, Sharpness, White balance, Exposure control, Exposure zones, Backlight compensation, Fine tuning of behavior at low light, Mirroring of images, Rotation: Auto, 0°, 90°, 180°, 270° including Corridor Format (not applicable in analog video output), Text and image overlay, Privacy mask, WDR – dynamic capture, Defogging, Day/Night shift level, Noise reduction
Security :Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log, Centralized Certificate Management, Brute force delay protection

Supported protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

Analytics: Included AXIS Video Motion Detection, AXIS Fence Guard, AXIS Motion Guard, active tampering alarm, audio detection Supported AXIS Camera Application Platform enabling installation of third-party applications, see www.axis.com/acap

Event triggers :Analytics, Detectors, Hardware, Input signal, PTZ, Edge storage events, System, Time

Event actions: File upload: FTP, SFTP, HTTP, HTTPS network share and email Notification: email, HTTP, HTTPS and TCP External output activation Video recording to edge storage, Play audio clip Pre- and post-alarm video buffering PTZ preset, Overlay text, Send SNMP trap, Status LED, WDR mode

Storage :Support for SD/SDHC/SDXC card SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS recommendations see www.axis.com
