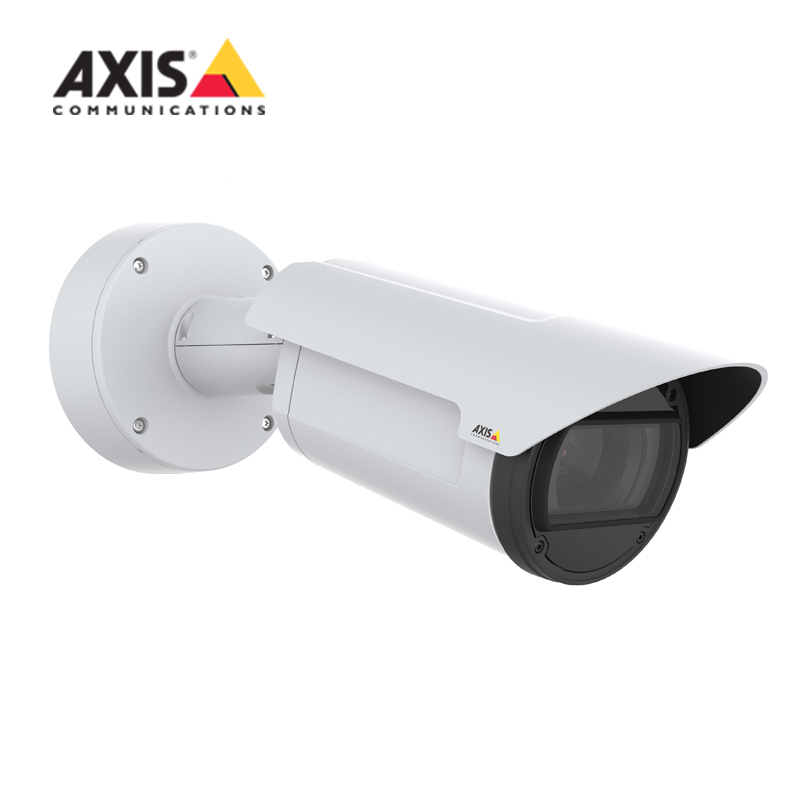

AXIS Q1786-LE Network Camera

AXIS Q1786-LE Network Camera is a tough, top-of-the-line camera with outstanding 32x optical zoom. It’s an all-integrated camera that’s all set to take on just about any challenge, indoors or out.
  • Q1786-LE

  • AXIS

  • New Original

  • 3 Years

Product Description
AXIS Q1786-LE Network Camera

Robust, first-class 4 MP video with 32x optical zoom
AXIS Q1786-LE Network Camera is an all-integrated camera delivering 4 megapixel resolution and 32x optical zoom for easy and flexible installation at any distance as well as detailed video for identification. With a wide temperature range, impact resistance and IP66, IP67 and NEMA 4X ratings, this robust and reliable camera is ready for tough environments. Lightfinder, Forensic WDR and OptimizedIR with 80 m (262 ft) range ensure details in challenging light conditions and darkness. AXIS Q1786-LE offers built-in analytics for proactive surveillance, corridor format and audio in for video with sound. Furthermore, Axis Zipstream saves bandwidth while keeping high video quality
> 4 MP / Quad HD 1440p at up to 60 fps > -40 °C to 60 °C (-40 °F to 140 °F) > OptimizedIR with 80 m (262 ft) range > Electronic Image Stabilization > AXIS Guard Suite included
Product Specification
AXIS Q1786-LE Network Camera
Image sensor: 1/1.8" progressive scan RGB CMOS

Lens :4.3–137 mm, F1.4–4.0 Horizontal field of view: 60°–2.3° Vertical field of view: 39°–1.3° Autofocus, automatic day/night Thread for 62 mm filters, max filter thickness: 5 mm

Day and night :Automatically removable infrared-cut filter in day mode and infrared-pass filter 720 nm in night mode

Minimum illumination: Color: 0.16 lux at 50 IRE F1.4 B/W: 0.03 lux at 50 IRE F1.4, 0 lux with IR illumination on

Shutter time: 1/100000 s to 2 s

Video compression :H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG

2560x1440 to 160x120 Maximum pixel density with 32x optical zoom: 25 m (82 ft): 2551 px/m 50 m (164 ft): 1275 px/m 250 m (820 ft): 255 px/m

Frame rate :With WDR: Up to 25/30 fps (50/60 Hz) in all resolutions Without WDR: Up to 50/60 fps (50/60 Hz) in all resolutions

Video streaming: Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264

Image settings :Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, defogging, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring of images, electronic image stabilization, barrel distortion correction, text and image overlay, dynamic text and image overlay, privacy masks Rotation: auto, 0°, 90°, 180°, 270° including Corridor Format Scene profiles: forensic, vivid, traffic overview
Pan/Tilt/Zoom :32x optical zoom, preset positions

Security :Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management, signed firmware Brute force delay protection

Supported protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP

Analytics :Included AXIS Video Motion Detection, AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, active tampering alarm, gatekeeper Supported AXIS Perimeter Defender, AXIS Cross Line Detection Support for AXIS Camera Application Platform enabling installation of third-party applications, see axis.com/acap

Event triggers: Analytics, edge storage events Supervised external input, virtual inputs through API, shock detection

Connectors :Shielded RJ45 10BASE-T/100BASE-TX PoE IDC punchdown connector DC Power connector Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max. load 50 mA) 3.5 mm mic/line in

IR illumination :OptimizedIR with power-efficient, long-life 850 nm IR LED’s with adjustable angle of illumination and intensity. Range of reach 30 m (98 ft) in wide field of view and 80 m (262 ft) in full tele view, or more depending on the scene
