Product Overview
TPM, FIPS 140-2 level 2 certified
Signed firmware and secure boot
AXIS Guard Suite analytics
EIS and vandal resistance with IK10+
Power with redundancy and configurable I/O ports

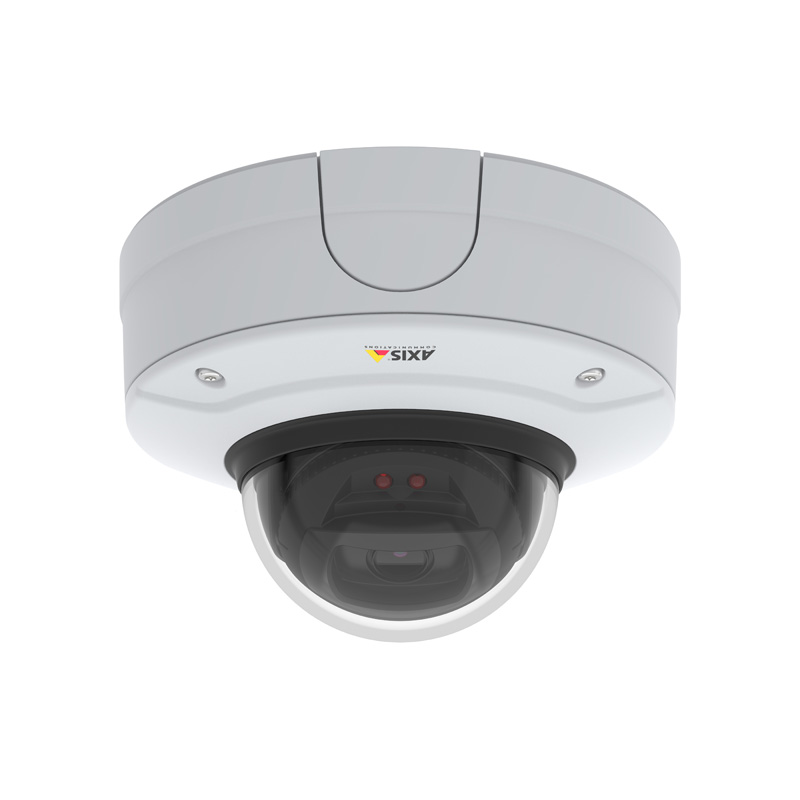

Are you looking for a discreet and robust outdoor network camera that delivers outstanding video quality and a high level of defense to protect your system? AXIS Q3527-LVE Network Camera is loaded with advanced security functionality to increase your systems cyber defense and can withstand the harshest weather conditions while capturing unparalleled video.
Just like any other internet-connected device, network cameras can be vulnerable to attack. AXIS Q3527-LVE includes enhanced security features to prevent unauthorized access. Signed firmware and secure boot guarantees that the firmware hasn't been altered and ensures only authorized firmware is installed. Furthermore, if needed secure boot guarantees that the camera is completely clean from possible malware after a factory default.
AXIS Q3527-LVE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. It ensures secure storage of all cryptographic keys and certificates so that they remain safe even in the event of a security breach.
Download white paper
AXIS Q3527-LVE is based on AXIS Q3517-LVE which ensures the best video quality possible. It offers 5-megapixel resolution at full frame rate (up to 30 fps) with Forensic WDR. That means it delivers excellent detail - even of moving objects and people - as well as of scenes with both extremely bright and extremely dark areas. Thanks to Lightfinder, you also get sharp, color images in low light. OptimizedIR ensures excellent low-noise video even in complete darkness. Furthermore, Zipstream preserves important details in full image quality, while reducing storage and bandwidth by 50% or more.
Product Specification
| Image sensor | Progressive scan RGB CMOS 1/1.8" |
| Lens | Varifocal, 4.1-9 mm, F1.6 Horizontal field of view: 100°-46° Vertical field of view: 60°-29° Remote focus and zoom, P-Iris control, IR corrected |
| Minimum illumination | HDTV 1080p 25/30 fps with WDR - forensic capture and Lightfinder: Color: 0.1 lux at 50 IRE, F1.6; B/W: 0.02 lux at 50 IRE, F1.6 HDTV 1080p 50/60 fps: Color: 0.2 lux at 50 IRE, F1.6; B/W: 0.03 lux at 50 IRE, F1.6 |
| Shutter time | 1/71 500 s to 2 s |
| Video compression | H.264 (MPEG-4 Part 10/AVC), Baseline, Main and High Profiles Motion JPEG |
| Resolution | 3072x1728 to 160x120 |
| Frame rate | HDTV 1080p (1920x1080) with WDR: 25/30 fps with power line frequency 50/60 Hz HDTV 1080p (1920x1080) without WDR: 50/60 fps with power line frequency 50/60 Hz WUXGA (1920x1200) without WDR: 25/30 fps with power line frequency 50/60 Hz |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
| Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Event triggers | Analytics,edge storage events |
| Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
