Product Overview
Exceptional video quality with 1/1.8" sensor
Lightfinder and WDR - Forensic Capture
Up to 6 MP in 20 fps without WDR or 4 MP in 30 fps with WDR
Remote PTRZ capability for efficient installation and readjustment
Zipstream - saves bandwidth without sacrificing quality

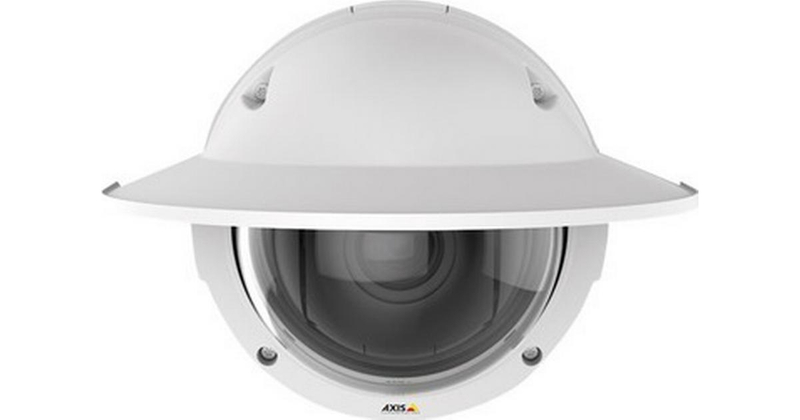

AXIS Q3617-VE network camera is designed for mission-critical surveillance scenarios. Delivering superior image quality, uptime and protection, it's perfect for critical infrastructure, transportation, and city surveillance, for example.
With our biggest sensors ever in a fixed dome camera, AXIS Q3617-VE provides the best possible image quality no matter what. WDR - Forensic Capture lowers noise and increases the image signal when there are both light and dark areas in a scene for forensic optimization. Axis Lightfinder technology delivers sharp color images in poor light conditions. And electronic image stabilization keeps the picture steady. AXIS Q3617-VE also gives you up to 6 MP at 20 fps without WDR or up to 4 MP at 30fps with WDR. And Axis Zipstream technology - saves bandwidth and storage by up to 50% without sacrificing quality.
AXIS Q3617-VE offers a unique solution: our remote PTRZ pan/tilt/roll/zoom feature. It allows for exceptionally speedy and efficient installation to keep costs and time low. And, if circumstances sometimes require you to readjust the view of the camera, remote PTRZ makes it possible to make changes from afar, without ever pausing the recording.
With its robust mechanical design, AXIS Q3617-VE is ready for outdoor installation in tough environments. It features IK10 vandal resistance, vibration resistance and shock detection. So you can count on your critical surveillance system staying up and running no matter what.
Product Specification
| Image sensor | Progressive scan RGB CMOS 1/1.8" |
| Lens | Varifocal, 4.1-9 mm, F1.6 Horizontal field of view: 6 MP mode: 101°-46°, 4 MP 16:9 mode: 90°-41° Vertical field of view: 6 MP mode: 66°-30°, 4 MP 16:9 mode: 49°-23° Remote focus and zoom, P-Iris control, IR corrected |
| Minimum illumination | Color: 0.15 lux at 50 IRE, F1.6; B/W: 0.03 lux at 50 IRE, F1.6 |
| Shutter time | 1/100000 s to 2 s |
| Video compression | H.264 (MPEG-4 Part 10/AVC), Baseline, Main and High Profiles Motion JPEG |
| Resolution | 3072x2048 to 160x90 |
| Frame rate | 4 MP 16:9 (2720x1536) or 4:3 (2304x1728) with WDR: 25/30 fps with power line frequency 50/60 Hz 6 MP (3072x2048) without WDR: 20 fps |
| Video streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
| Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Event triggers | Analytics,edge storage events |
| Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
