Product Overview
HDTV 720p with 30x optical zoom
Axis Lightfinder 2.0
Autotracking 2 and orientation aid
Built-in analytics
TPM, FIPS 140-2 level 2 certified

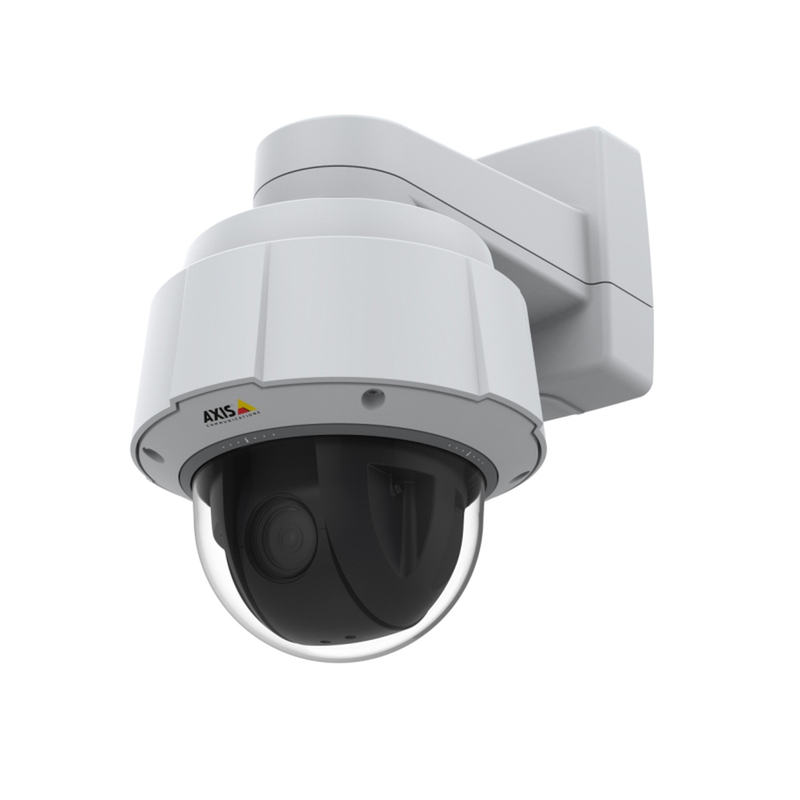

AXIS Q6074 offers HDTV 720p resolution that delivers superior video quality and 30x optical zoom for excellent details. It features Axis Lightfinder 2.0 which captures low-light images with more saturated colors and sharper images of moving objects. And, Zipstream with support for H.264 and H.265 preserves all the important forensic detail you need, while significantly lowering bandwidth and storage requirements.
This high-performance outdoor PTZ camera with IP66/67, NEMA 4X, and IK10-ratings is protected from dust, rain, snow and impacts. Arctic temperature control ensures startup from a deeply frozen state and operation in temperatures ranging from -40 °C to 50 °C (-40 °F to 122 °F). Autotracking 2 with click and track functionality and an orientation aid allows for active object tracking and quick orientation. AXIS Q6075-E comes with AXIS Guard Suite analytics for detecting motion, intrusion and loitering. Furthermore, where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property.
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
Product Specification
| Image sensor | 1/2.8" progressive scan CMOS |
| Lens | 4.25-170 mm, F1.6-4.95 Horizontal field of view: 65.1°-2.00° (1080p) Vertical field of view: 39.1°-1.18° (1080p) Autofocus, auto-iris |
| Minimum illumination | Color: 0.1 lux at 30 IRE, F1.6 B/W: 0.002 lux at 30 IRE, F1.6 Color: 0.15 lux at 50 IRE, F1.6 B/W: 0.003 lux at 50 IRE, F1.6 |
| Shutter time | 1/11000 s to 1/3 s with 50 Hz 1/11000 s to 1/3 s with 60 Hz |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolution | HDTV 720p 1280x720 to 320x180 |
| Frame rate | Up to 50/60 fps (50/60 Hz) in HDTV 720p |
| Video streaming | g Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
| Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Event triggers | Analytics,edge storage events |
| Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
