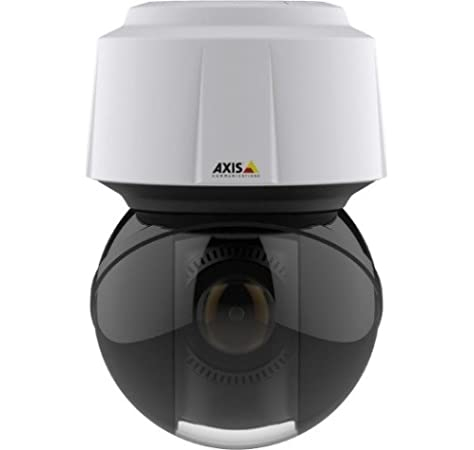

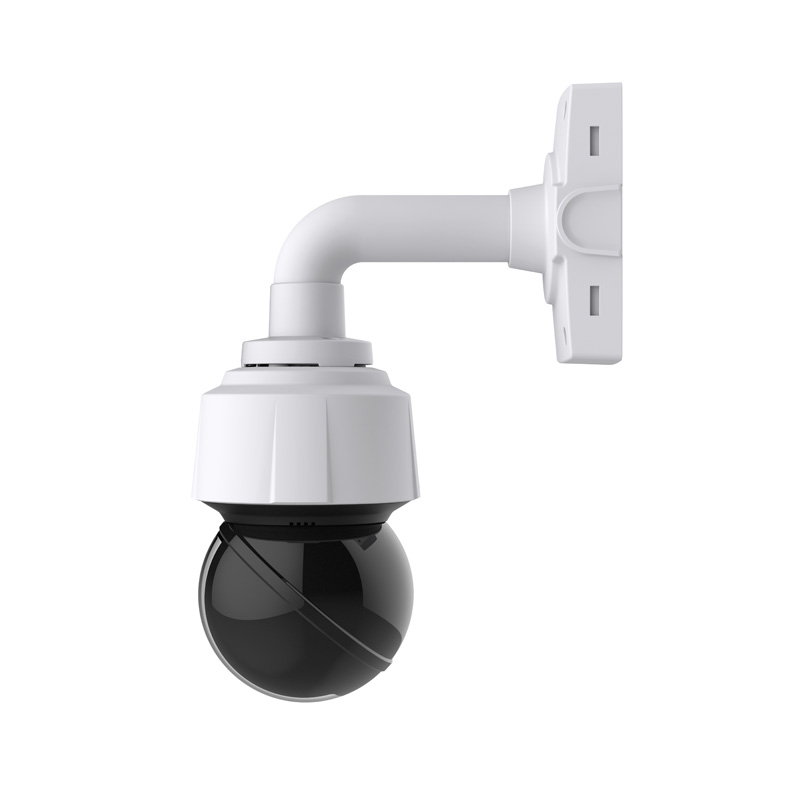

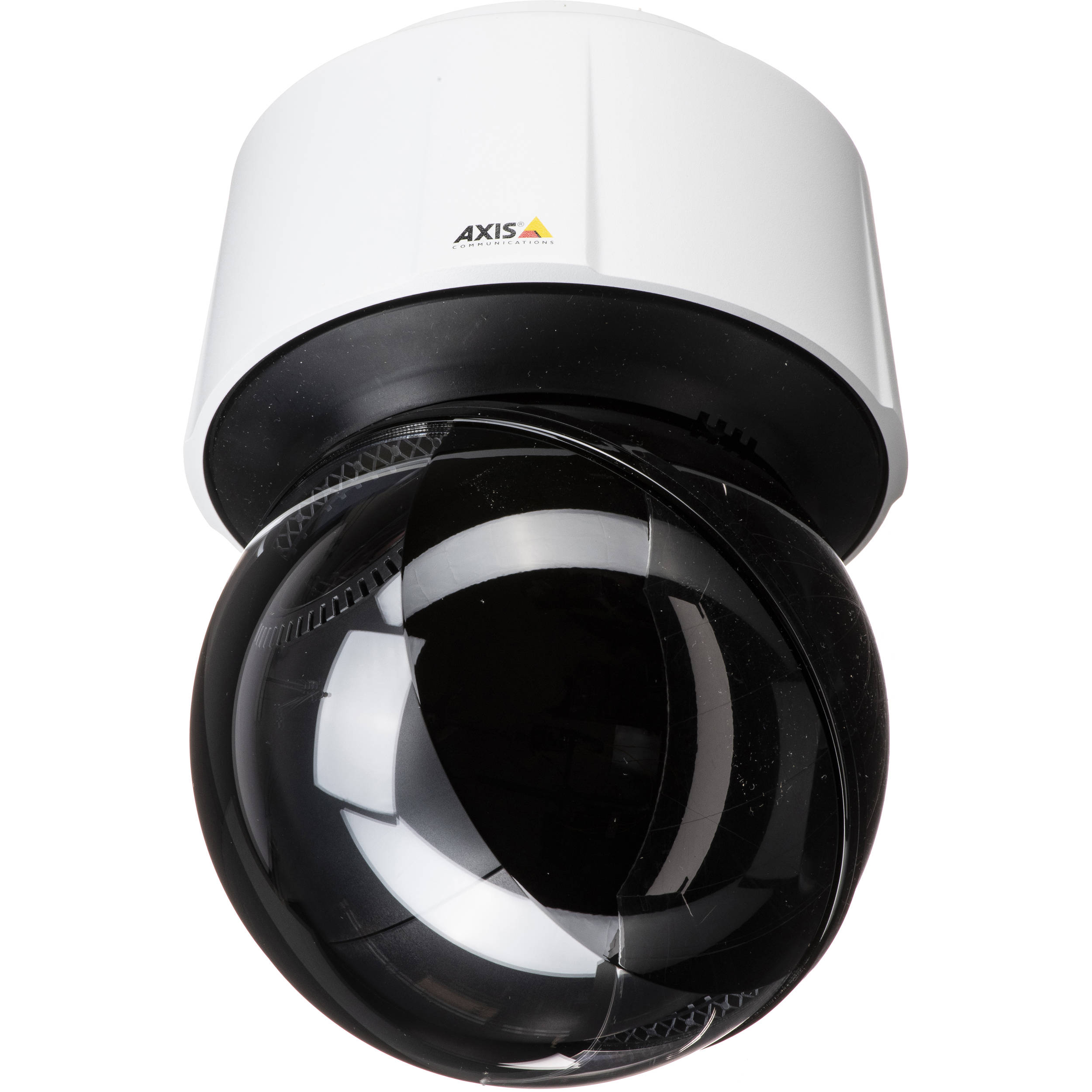

AXIS Q6128-E PTZ Network Camera

  • Q6128-E
  • AXIS
  • 6-8weeks
  • New
  • 3years
Quantity:

Product Overview

Q6128-E 1

  • 4K resolution at 30 fps

  • Sharpdome technology with speed dry

  • Electronic image stabilization

  • Pan performance up to 700°/s

  • Repaintable

AXIS Q6128-E Network Camera delivers great image quality in 4K resolution. All in an outdoor-ready camera that delivers the kind of wide-area coverage and flawless detail you expect from a high-performance PTZ from Axis. The camera is ideal for sports stadiums, squares, street junctions, open parking places and large open areas in shopping malls.

Excellent overview and details in UltraHD

AXIS Q6128-E is a high-performance PTZ camera offering (8.3 MP) 4K resolution at 30 frames per second, 12x optical zoom and autofocus. The 4K resolution provides four times as much detail as the standard HDTV 1080p resolution, improving the video quality significantly. To save bandwidth, you can view live video in HDTV 1080p while recording in 4K for forensic purposes.

The camera provides quick and precise pan of up to 700° per second which makes it easy to change viewing position and follow fast moving objects.  AXIS Q6128-E also offers Electronic Image Stabilization, giving smoother video in windy conditions.

Axis' Sharpdome technology and Speed Dry function

Axis' Sharpdome technology provides full scene fidelity and perfect image quality in all directions - above as well as below the horizon - making AXIS Q6128-E suitable also for uneven terrain. The Sharpdome technology includes Axis' unique Speed Dry function that gives clear images in rainy weather. It can also simplify dome cleaning, allowing for more efficient methods such as high pressure cleaning.

Optimized for maximum reliability

AXIS Q6128-E is designed for reliable, weatherproof installations with built-in protection against dust, strong water jets, rain, snow and sunlight (IP66 and NEMA 4X rating), and impact resistance (IK08 rating). The camera features defogging and is protected by shock detection that sends an alarm if someone tries to vandalize it.




Product Specification

Image sensor 1/2.3" Progressive scan CMOS
Lens 3.9-46.8 mm, F1.8-2.0 Horizontal field of view: 70.7˚-6.2˚ Vertical field of view: 43.5˚-3.5˚ Autofocus, auto-iris
Minimum illumination Color: 0.45 lux at 30 IRE, F1.8 B/W: 0.03 lux at 30 IRE, F1.8 Color: 0.6 lux at 50 IRE, F1.8 B/W: 0.05 lux at 50 IRE, F1.8
Shutter time  1/10000 s to 1 s
Video compression H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Resolution 3840x2160 UltraHD 4K to 640x360
Frame rate Up to 50/60 fps (50/60Hz) @1080p Up to 25/30 fps (50/60Hz) @4K
Video streaming Multiple, individually configurable streams in H.264 and Motion JPEG, Controllable frame rate and bandwidth, VBR/MBR H.264, HDMI SDI, SMPTE 292-1
Image settings Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR
Security Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection
Supported protocols  IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP
Analytics  Included AXIS Video Motion Detection, active tampering
Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications,

Event triggers Analytics,edge storage events
Event actions File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video
Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese
