Product Overview
Laser focus
Axis Sharpdome technology with Speed Dry
Lightfinder and WDR - Forensic Capture
Zipstream
HDTV 1080p and 30x optical zoom

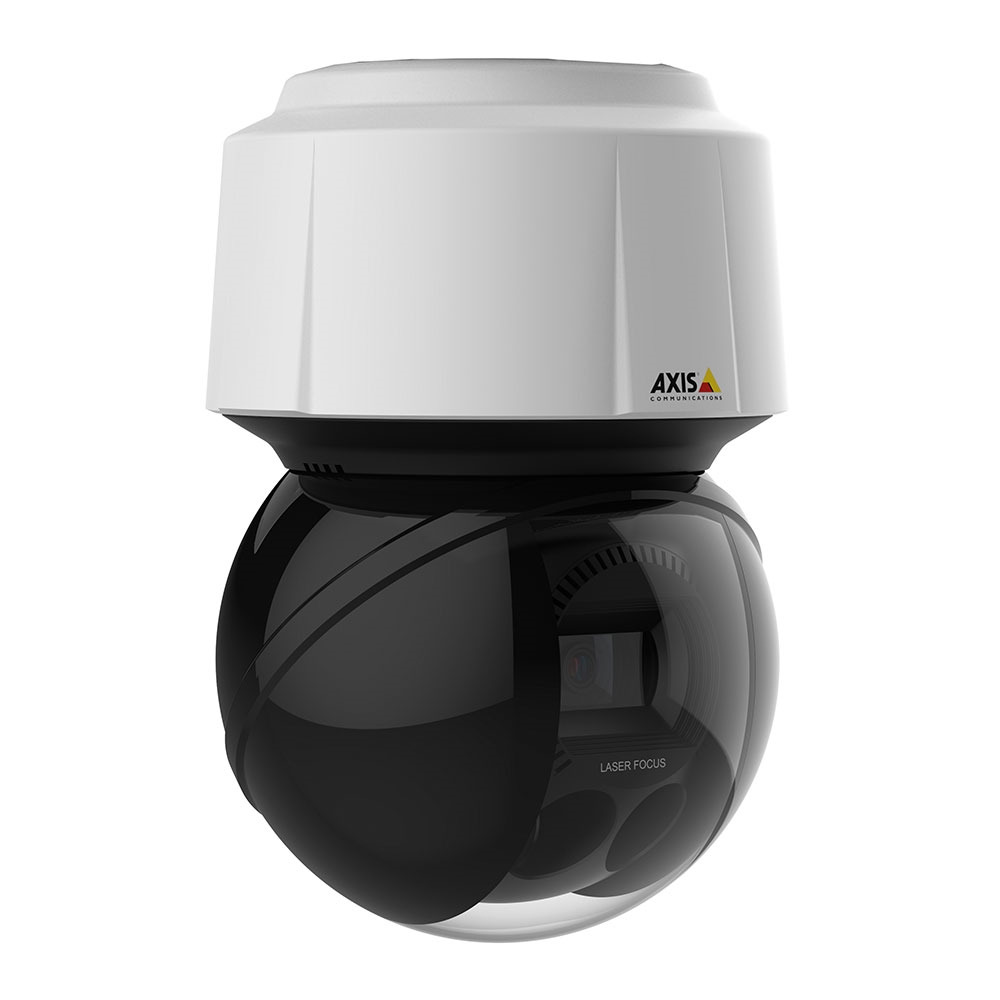

Perfect, instantaneous focus is a challenge for PTZ cameras - especially in low light. AXIS Q6154-E PTZ Network Camera uses advanced laser technology to always give flawless focus - even in the dark. This camera is ideal for city surveillance, critical infrastructure and other applications where instant focus on moving objects and fast-changing scenes is needed.
Under difficult circumstances, like scenes with low light, low contrast, or point-shaped light, AXIS Q6154-E really stands out. Its 100% safe laser beam measures the distance between the camera and an object in a fraction of a second, delivering perfectly focused images every time.
Axis Lightfinder technology delivers high-resolution, full color video with a minimum of motion blur even in near darkness. Thanks to Axis Sharpdome technology AXIS Q6154-E lets you see above the horizon with the same sharp, clear image quality as below the horizon. And speed dry helps to provide sharp images in rainy weather.
AXIS Q6154-E also features Zipstream, which preserves all the important forensic detail you need, while lowering bandwidth and storage requirements
Product Specification
| Image sensor | 1/2.8" Progressive scan CMOS |
| Lens | 4.3-129 mm, F1.6-4.7 Horizontal angle of view: 63.7°-2.3° Vertical angle of view: 34.5°-1.2° Autofocus, P-iris control |
| Minimum illumination | Color: 0.25 lux at 50 IRE F2.0 B/W: 0.05 lux at 50 IRE F2.0, 0 lux with IR illumination on |
| Shutter time | 1/60000 s to 2 s |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG |
| Resolution | 1280x720 (HDTV 720p) to 320x180 |
| Frame rate | Up to 50/60 fps (50/60 Hz) in 720p |
| Video streaming | Multiple, individually configurable streams in H.264 and Motion JPEG, Controllable frame rate and bandwidth, VBR/MBR H.264, HDMI SDI, SMPTE 292-1 |
| Image settings | Compression, color, brightness, sharpness, contrast, white balance, exposure control, day/night shift level, rotation: 0°, 180°, text and image overlay, privacy masks, mirroring of images, WDR |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log WPA/WPA2-PSK, WPA, WPA2 Enterprise, WLAN pairing button (WPS) PBC-compatible, Brute force delay protection |
| Supported protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, LLDP |
| Analytics | Included AXIS Video Motion Detection, active tampering Supported AXIS Cross Line Detection, AXIS Digital Autotracking Support for AXIS Camera Application Platform enabling installation of third-party applications, |
| Event triggers | Analytics,edge storage events |
| Event actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP, HTTPS and TCP Video recording to edge storage, activation of IR-LED, overlay text Pre- and post-alarm video |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
