| Technical specifications |
| Indicators |
| System LEDs | • System (OK) (chassis HW/SW status) • PWR (primary power supply status)
• PRI (virtual chassis primary)
• BPS (backup power status)
• STK (stacking indicator for 10 port models) |
| Per-port LEDs | • 10/100/1000: PoE, link/activity • SFP: Link/activity
• Stacking: Link/activity |
| Compliance and certifications |
| Commercial | EMI/EMC
• FCC CRF Title 47 Subpart B (Class A limits. Note: Class A with UTP cables)
• VCCI (Class A limits. Note: Class A with UTP cables)
• AS/NZS 3548 (Class A limits. Note: Class A with UTP cables)
• CE-Mark: Marking for European countries (Class A limits. Note: Class A with UTP cables) • CE-Mark ¬ 2006/95/EC: Low voltage
Directive ¬ 2004/108/EC: EMC-Directive ¬ 2011/65/EU: RoHS-Directive• EN 55022: 2010 (EMI and EMC requirement))
• EN 61000-3-3: 2008
• EN 61000-3-2: 2006+A1:2009+A2 (Limits for harmonic current
emissions)
• EN 55024: 2010 (ITE Immunity characteristics) ¬ EN 61000-4-2: 2008 ¬ EN 61000-4-3: 2010 ¬ EN 61000-4-4: 2011 ¬ EN
61000-4-5: 2005 ¬ EN 61000-4-6: 2008 ¬ EN 61000-4-8: 2009 ¬ EN 61000-4-11: 2004
• IEEE802.3: Hi-Pot Test (2250 V DC on all Ethernet ports)
• EN 50581: 2012 Standard for technical documentation for RoHS recast |
| Safety agency certifications | • CB Scheme: Certification per IEC 60950/EN 60950 with all different country deviations, IEC 60950-1:2005: 2nd Edition ¬ UL 60950
United States ¬ IEC 60950-1:2006; all national deviations ¬ EN 60950-1: 2nd Edition+A11: 2009+A1: 2010+A12: 2011 (Electric/ Health
& Safety) all national deviations ¬ CAN/CSA-C22.2 No. 60950-1-03 ¬ NOM-019 SCFI, Mexico ¬ AS/NZ TS-001 and 60950:2000, Australia ¬
UL-AR, Argentina ¬ UL-GS Mark, Germany • IEC 60825-1 Laser, IEC 60825-2 Laser
• CDRH Laser |
| Simplified management |
| Configuration management interfaces | • Intuitive Alcatel-Lucent commandline interface (CLI) with familiar interface reducing training costs • Easy-to-use,point-and-click web-based element manager (WebView) with built-in help for easy configuration
• Integration with AlcatelLucent OmniVista for network management
• Full configuration and reporting using SNMPv1/2/3 across all OmniSwitch families to facilitate third-party Network Management
System (NMS) integration
• Remote Telnet management or Secure Shell access using SSHv2
• File upload using USB, TFTP, FTP, SFTP, or SCP for faster configuration
• Human-readable ASCII-based configuration files for offline editing and bulk configuration
•Managed by Alcatel-Lucent 5620 Service Aware Manager |
| Monitoring and troubleshooting | Local (on the flash) and remote server logging: Syslog and command log
• Port-based mirroring for troubleshooting and lawful interception supporting four sessions with multiple sources-toone destination
• Policy-based mirroring – allows selection of the type of traffic to mirror by using quality of service (QoS) policies • Remote port mirroring that facilitates passing mirrored traffic through the network to a remotely connected device
• Port monitoring feature that allows capture of Ethernet packets to a
file, or for on-screen display to assist in troubleshooting
• sFlow v5 and RMON: For advanced monitoring and reporting capabilities for statistics, history, alarms, and events
• IP tools: Ping and trace route
• Digital Diagnostic Monitoring (DDM): Real-time diagnostics of fiber connections for early detection of optical signal deterioration
• Time Domain Reflectometry (TDR): For locating breaks or other discontinuity in copper cables |
| Network configuration | • Auto remote configuration download feature
• Auto-negotiating 10/100/1000 ports automatically configure port speed and duplex setting
• Auto MDI/MDIX automatically configures transmit and receive signals to support straight through and crossover cabling
• BootP/Dynamic Host Configuration Protocol (DHCP) client allows auto-config of switch IP information for simplified deployment
•DHCP relay to forward client requests to a DHCP server
• Alcatel-Lucent Mapping Adjacency Protocol (AMAP) for building topology maps
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP) with MED extensions for automated device discovery
• Multiple VLAN Registration Protocol (MVRP) for IEEE 802.1Q-compliant. VLAN pruning and dynamic VLAN creation
• Auto QoS for switch management traffic as well as traffic from Alcatel-Lucent IP phones
• IEEE 1588v2 Precision Timing Protocol (PTP) via end-to-end Transparent Clock (TC) for network-wide time synchronized applications: – “S” models only
• Network Time Protocol (NTP) for networkwide time synchronization • Stackable to 4 units |
| Resiliency and high availability | Rapid Ring Spanning Tree Protocol (RRSTP optimized for ring topology to provide less than 100 ms convergence time • IEEE 802.1s
Multiple Spanning Tree Protocol: Encompasses IEEE 802.1D STP and IEEE 802.1w Rapid Spanning Tree Protocol • Per-VLAN spanning tree(PVST) and Alcatel-Lucent 1x1 STP mode • IEEE 802.3ad Link Aggregation Control Protocol (LACP) and static LAG groups across
modules is supported
• Dual-home link (DHL) support for sub second link protection without STP • Virtual Router Redundancy Protocol (VRRP) to provide
highly available routed environments • Broadcast and multicast storm control to avoid degradation in overall system performance
• Unidirectional Link Detection (UDLD): Detects and disables unidirectional links on fiber optic interfaces
• Layer 2 port loopback detection for preventing customer loops on Ethernet access ports
• Redundant and hot- swappable power supplies, transceivers modules offering uninterruptable service
• Dual image and dual configuration files storage provides backup |
| Advanced security |
| Access control | • AOS Access Guardian framework for comprehensive user policybased Network Access Control (NAC)
• Autosensing 802.1X multi-client, multi-VLAN
• MAC-based authentication for non-802.1x hosts
• Web-based authentication (Captive Portal) – a customizable web portal residing on the switch that can be used for authenticating
supplicants as well as non-supplicants
• Group mobility rules and “guest” VLAN support
• The host integrity check (HIC) agent on each switch makes it a HIC enforcer and facilitates endpoint device control for company policy compliance.
• Supports dynamic Change of Authentication (CoA) and enforces traffic remediation or restriction for noncompliant devices.
• User Network Profile (UNP) – simplify NAC management and control by dynamically providing pre-defined policy configuration to authenticated clients — VLAN, ACL, BW, HIC
• SSH for secure CLI session with public key infrastructure (PKI) support
• Centralized RADIUS and Lightweight Directory Access Protocol (LDAP) user authentication
• Private VLAN feature for user traffic segregation |
| Containment, monitoring and quarantine | • Alcatel-Lucent Quarantine Manager and quarantine VLAN (not supported)• Learned Port Security (LPS) or MAC address lockdown –secures the network access on user or trunk ports based on MAC address
•DHCP Snooping, DHCP IP Spoof protection
• TACACS+ client allows for authentication authorization and accounting with a remote TACACS+ server
• Dynamic Address Resolution Protocol (ARP) protection and ARP poisoning detection
• Access control lists to filter out unwanted traffic including denial of service attacks; flow-based filtering in hardware(L1-L4)
• Bridge Protocol Data Unit (BPDU) blocking – automatically shuts down user ports if a STP BPDU packet is seen to prevent topology loops
• STP Root Guard –prevents edge devices from becoming Spanning Tree Protocol root node |
| Converged networks | PoE • The PoE models support AlcatelLucent IP phones and WLAN access points, as well as any IEEE 802.3af or IEEE 802.3at compliant end device. • The P10S PoE model supports IEEE 802.3af, IEEE 802.3at and is compliant the PoE section of the PoH (Power over HDBase-T) standard • Configurable per port PoE priority and max power for power allocation • Dynamic PoE allocation delivers only the power needed by the Powered Devices (PD) up to the total power budget for most efficient power consumption. QoS • Priority queues: Eight hardwarebased queues per port for flexible QoS management • Traffic prioritization: Flow-based QoS with internal and external (that is, remarking) prioritization • Bandwidth management: Flowbased bandwidth management, ingress rate limiting; egress rate shaping per port • Queue management: Configurable scheduling algorithm – Strict Priority (SQP), Weighted Round Robin (WRR) and Deficit Round Robin(DRR)
• Congestion avoidance: Support for End-to-End Head of Line (E2E-HOL) Blocking Protection
• Auto QoS for switch management traffic as well as traffic from Alcatel-Lucent IP phones
• Three color marker – single/dual rate – policing with commit BW, excess BW, burst size |

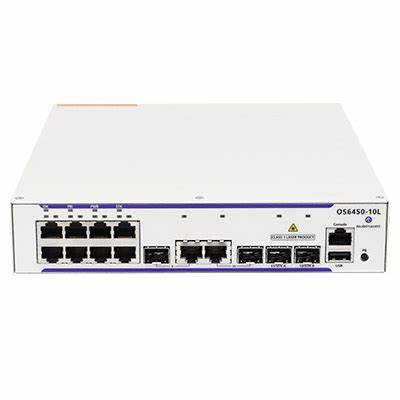

| RJ-45 10/100 ports | 8 |
| RJ-45 10/100/1000 ports | 0 |
| RJ-45/SFP 10/100/1000 combo ports | 2 |
| SFP uplink/ stacking ports | 2 |
| PoE ports | 0 |
| Maximum units stackable* | 4 |
| Dimensions |
| Width | 8.50 in. (21.5 cm) |
| Height | 1.73 in. (4.4 cm) |
| Depth | 11.5 in. (29.21 cm) |
