CU360
Avaya
Original New
1 year
| Quantity: | |
|---|---|

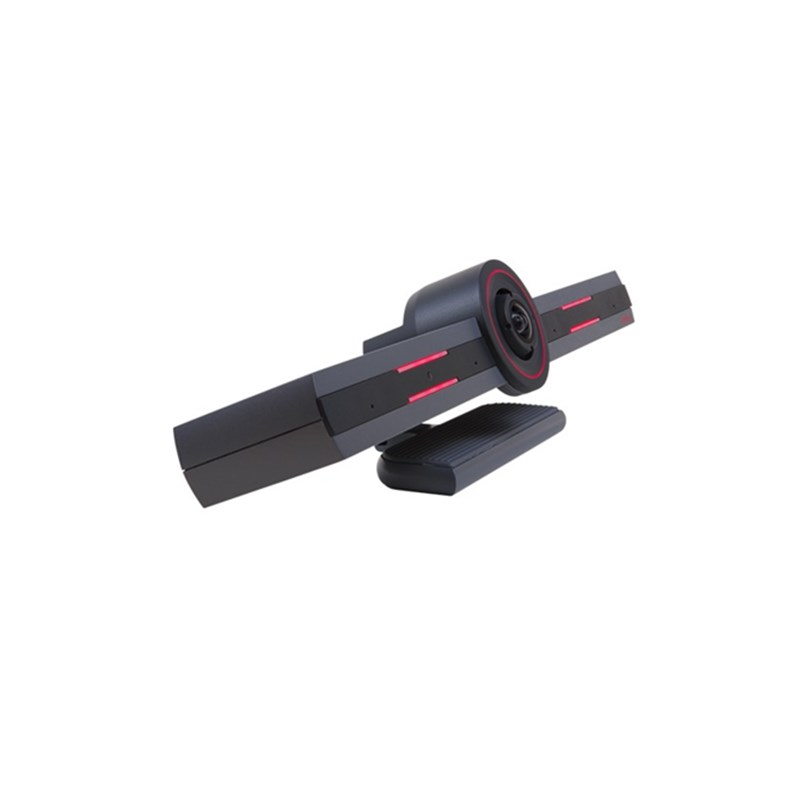

Avaya Collaboration Unit CU360
Combine the award-winning Avaya Collaboration Unit CU360 with Avaya Spaces® cloud-based team collaboration service to create a powerful and simple solution for the Home Office as well as Small Offices and any Corporate Huddle Space.
Features
▪ Delivers all the cloud has to offer to any business space
▪ All-in-one device delivers the ultimate in simplicity
▪ Seamless Avaya Spaces® integration
▪ Integrates with existing UC platform
▪ Interoperable with existing video infrastructure
▪ Higher quality & reliability than using a PC or laptop
| Avaya Collaboration Unit CU360 | |
| Communications | IP: H.323, SIP (RFC 3261) Bit rate: H.323, SIP: up to 4Mbps MCU compatibility: H.243, H.231 XMPP Presence supportn |
| Video Features | 2 simultaneous channels: camera + content |
| Video Protocols | H.264, H.264 High Profile Dual: H.239 (H.323); BFCP (SIP) SVC (Scalable Video Coding) H.263 + is supported with resolutions up to 4CIF @ 15fps. Only RFC2429 is supported. User-defined formats and attachments are not supported. |
| Camera | Sensor: 4kp30 Video resolution: 1080p30 Horizontal Field of View: 102° Vertical Field of View: 68° Digital zoom: 5x Preset up to 122 presets (web managed) - up to 10 presets (GUI managed) Speaker Auto-Tracking Mode Speaker Auto-Tracking Mode using third party Apps |
| Video Input | Live video from built in camera up to 1920 x 1080p30fps Wireless presentation with Screen Link and Miracast up to 1920 x 1080p15fps |
| Video Output | 1x HDMI @ 3840 x 2160 @ 25, 30fps; 1920 x 1080 @ 25, 30fps; 1280 x 720 @ 25, 30fps |
| Audio Features | Acoustic echo cancellation Audio error concealment Automatic Gain Control (AGC) Automatic noise suppression |
| Audio Protocols | G.711 G.719 G.728 and G.729 A/B G.722, G.722.1, G.722.1 Annex C Opus |
| Microphone | Microphone array (4mics) |
| Audio Inputs | Bluetooth |
| Audio Outputs | 1 x HDMI Bluetooth |
| Network Features | IPv4 and IPv6 simultaneous support Auto Gatekeeper discovery QoS support: IP Precedence, IP Type of Service (ToS), Differentiated Services (diffserv) Avaya NetSense bandwidth adaptation for high quality over unmanaged networks |
