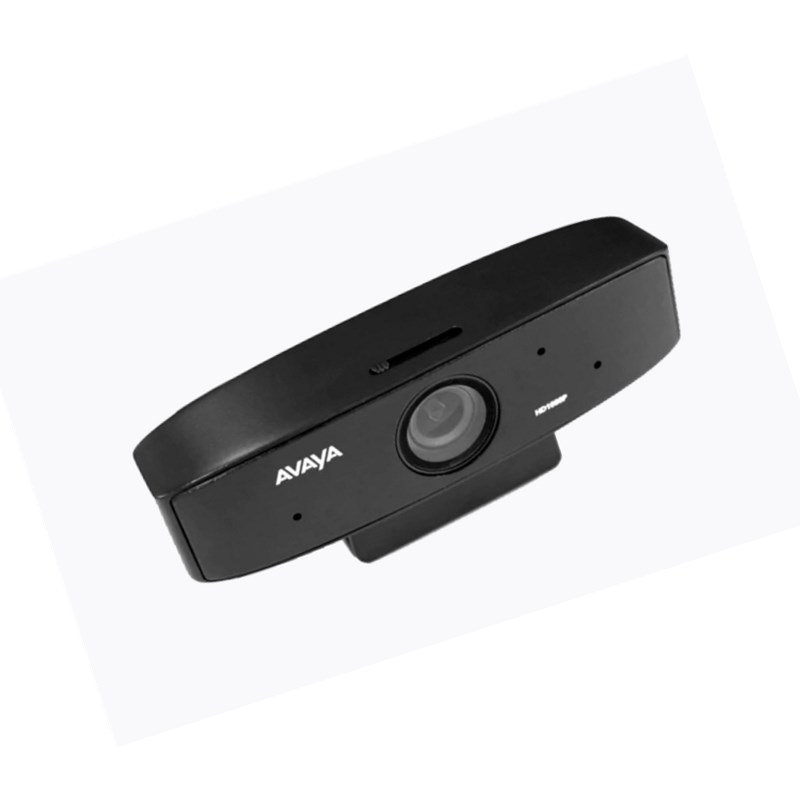

Avaya Huddle Cameras HC010 Simple, Powerful Conferencing Experience

Suitable as first or second camera for laptop for Avaya Spaces, Avaya Cloud Office (ACO), Workplace. A full HD USB fixed camera, providing a high quality 1080p30 video signal, with digital Pan Tilt Zoom. Perfect solution for laptops and NUCs.
  • HC010
  • Avaya
  • Original New
  • 1 year
Quantity:

1618383913(1)

Avaya Huddle Cameras  HC010

Avaya provides High Definition (HD) video conferencing room systems that  incorporate the latest state-of-theart video technology with capabilities  mandatory for today's room system deployments.

Avaya Huddle Cameras HC010/HC020/HC050 are the latest additions of cameras  for Huddle Rooms that can be used on XT as first or additional cameras. Users  can enjoy full control directly from XT Room System through Remote Control,  Scopia Control, Web Interface, APIs and so on.

The huddle cameras are great for enabling all of your small to medium meeting  rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a personal  connection. The ease of installation and use make them ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise  collaboration deployment.

Avaya Huddle Camera HC010

Suitable as first or second camera for laptop for Avaya Spaces, Avaya Cloud Office  (ACO), Workplace. A full HD USB fixed camera, providing a high quality 1080p30  video signal, with digital Pan Tilt Zoom. Perfect solution for laptops and NUCs.

1618383944(1)

Affordable for Huddle Room  audio/video conferencing

1080p30 resolution

4x digital zoom (EPTZ)

85° horizontal field of view

USB fixed camera

1618209775(1)

Camera Model HC010 1080p30
Image device CMOS 1/2.8''
Video Formats 1080p30 / 720p30
Video Signal Compressed (H.264) on USB
Focal Length f=2.8mm
Min Object Distance  (wide) 100 mm
Min Illumination 0.5 Lux @ (F2.0, AGC ON)
HFoV 85°
VFoV 55°
Optical Zoom N/A
Digital Zoom 4x
Pan Range ePTZ
Tilt Range ePTZ
Serial Control UVC via USB
Ceiling Mount N/A
Camera Mount Tripod screw hole  (1/4-20 UNC)
Weight 93 g
Dimensions w/h/d 118mm x37.2mm x 30.8mm
Current Consumption  (max) 200mA
Avaya Clients Supported Avaya Spaces, Avaya Cloud Office (ACO), Workplace, Equinox
3rd Party Clients  Supported MS® Teams, MS® SfB, Skype®, Zoom®, Bluejeans®, Starleaf®, Pexip®, Cisco Webex®,  Google Hangouts®
Video Configurations Same as other huddle cams,  but via UVC
Voltage Range 5V (USB power supply)
IR Repeater as TTL Signal Not available
Camera Output USB 2.0
Microphone Included
Presets 10 when controlled from  UVC commands, 122 when  controlled from XT
Far End Camera Control Through XT codec (H.224, H.281) or third party App
