HC020
Avaya
Original New
1 year
| Quantity: | |
|---|---|

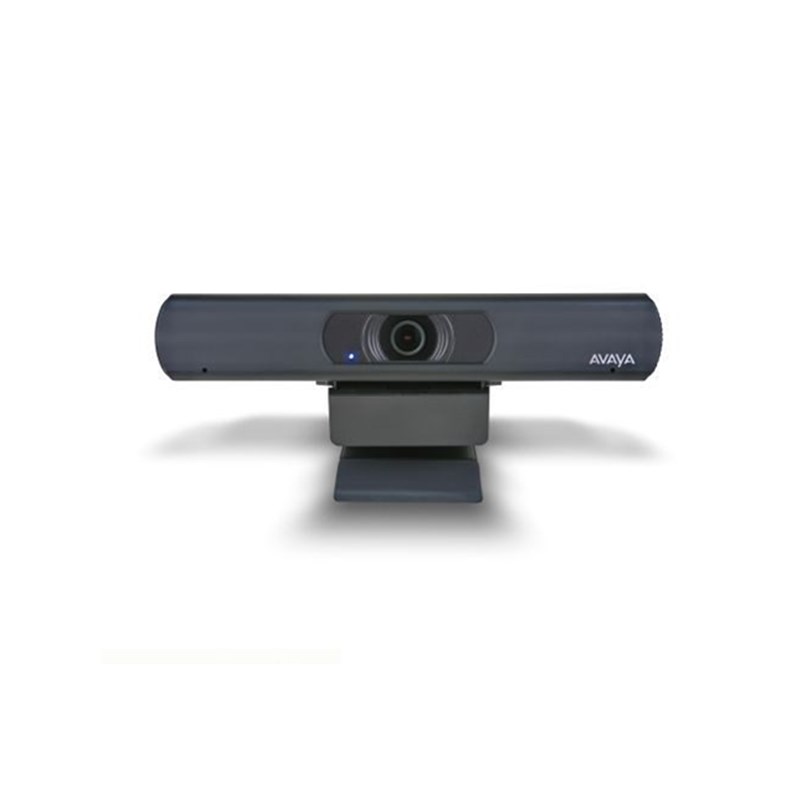

Avaya Huddle Cameras HC020
Avaya provides High Definition (HD) video conferencing room systems that incorporate the latest state-of-theart video technology with capabilities mandatory for today's room system deployments.

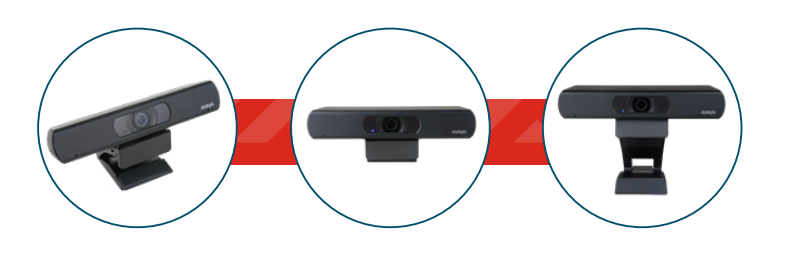

Avaya Huddle Cameras HC010/HC020/HC050 are the latest additions of cameras for Huddle Rooms that can be used on XT as first or additional cameras. Users can enjoy full control directly from XT Room System through Remote Control, Scopia Control, Web Interface, APIs and so on.
The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a personal connection. The ease of installation and use make them ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise collaboration deployment.

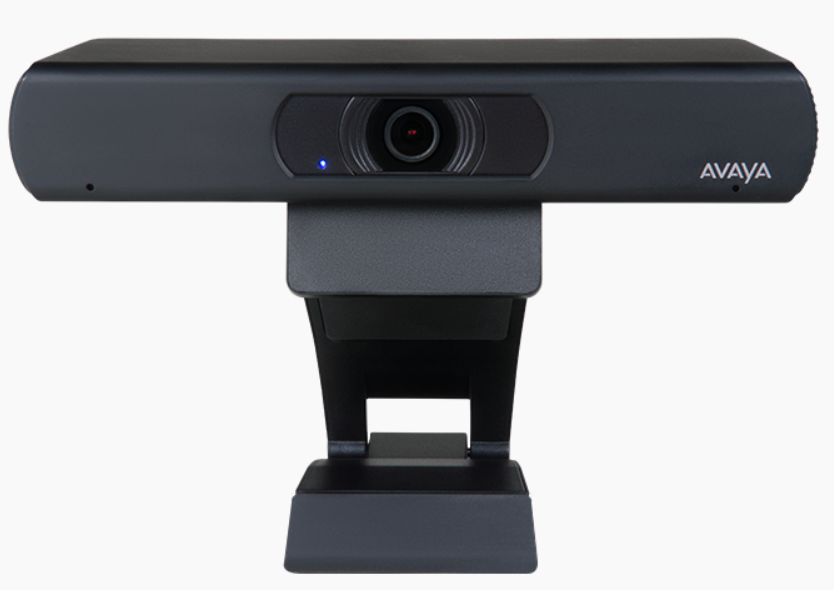

Avaya Huddle Camera HC020
Suitable as first or second camera of all the products of XT Series, or as laptop camera forAvaya Spaces, Avaya Cloud Office (ACO), Workplace. It is a full HD USB fixed camera, leveraging the quality of a UltraHD 4K sensor to provide a high quality 1080p30 video signal, with digital Pan Tilt Zoom (1080p resolution up to 2x zoom, 720p @3x zoom), and the option to send uncompressed signal on HDMI. There is an option to include 1-way POD microphone for small rooms.
Affordable enterprise capability for Huddle Room audio/video conferencing
1080p30 resolution
8x digital zoom (EPTZ)
104° up to 123° field of view horizontal
USB fixed camera (camera max 3m distance from codec. camera powered from codec)
| Camera Model | HC020 1080p@30 |
| Image device | 4K@30/25 CMOS 1/2.7'' |
| Video Formats | 4K@30/25 - 1080p60/50/30/25 (up to 1080p30 on XT) |
| Video Signal | Compressed (H.264) on USB |
| Focal Length | f=2.8mm |
| Min Object Distance (wide) | 500 mm |
| Min Illumination | 0.05 Lux @ (F1.8, AGC ON) |
| HFoV | 104° (up to 123°) |
| VFoV | 68° (up to 80°) |
| Optical Zoom | N/A |
| Digital Zoom | 8x |
| Pan Range | ePTZ |
| Tilt Range | ePTZ |
| Serial Control | UVC via USB |
| Ceiling Mount | Supported |
| Camera Mount | Tripod screw hole (1/4-20 UNC) |
| Weight | 0.34 Kg |
| Dimensions w/h/d | 194mm x 34mm x 42mm |
| Current Consumption (max) | 600mA |
| Avaya Clients Supported | Avaya Spaces, Avaya Cloud Office (ACO), Workplace, Equinox |
| 3rd Party Clients Supported | MS® Teams, MS® SfB, Skype®, Zoom®, Bluejeans®, Starleaf®, Pexip®, Cisco Webex®, Google Hangouts® |
| Video Configurations | White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/ manual) and WDR level |
| Voltage Range | 5V (USB power supply) |
| IR Repeater as TTL Signal | Not available |
| Camera Output | USB 3.0 |
| Microphone | Included |
| Presets | 10 when controlled from camera remote or UVC commands, 122 when controlled from XT |
| Far End Camera Control | Through XT codec (H.224, H.281) or third party App |
