HC050
Avaya
Original New
1 year
| Quantity: | |
|---|---|
Avaya Huddle Cameras HC050
Avaya provides High Definition (HD) video conferencing room systems that incorporate the latest state-of-theart video technology with capabilities mandatory for today's room system deployments.
Avaya Huddle Cameras HC010/HC020/HC050 are the latest additions of cameras for Huddle Rooms that can be used on XT as first or additional cameras. Users can enjoy full control directly from XT Room System through Remote Control, Scopia Control, Web Interface, APIs and so on.
The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a personal connection. The ease of installation and use make them ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise collaboration deployment.

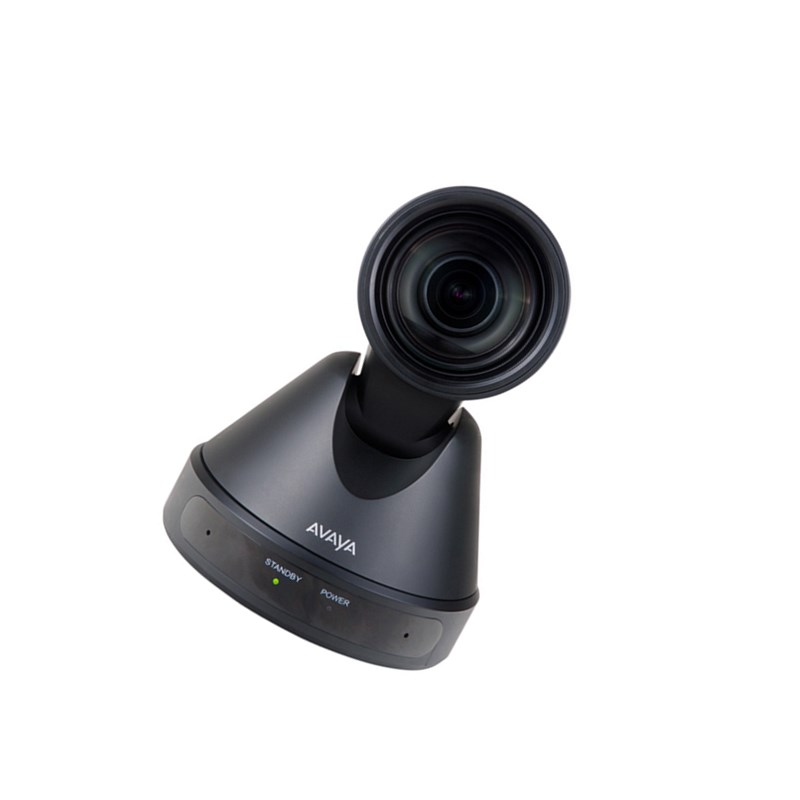

Avaya Huddle Camera HC050
Suitable as first or second camera of all the products of XT Series, or as laptop camera for Avaya Spaces, Avaya Cloud Office (ACO), Workplace. It is a full HD Pan Tilt Zoom USB camera, with 1080p30 video signal and optical zoom 12x. A perfect solution for small and medium rooms. There is an option to include 1-way POD microphone for small rooms and 3-way POD microphone for medium rooms.
Affordable enterprise capability for Huddle Room audio/video conferencing
1080p60 resolution
16x digital zoom (EPTZ)
72° horizontal field of view
USB fixed camera (camera max 3m distance from codec. camera powered from codec)
| Camera Model | HC050 12x 1080p30 |
| Image device | CMOS 1/2.7’’ |
| Video Formats | 1080p30/25/50/60 720p30/25/50/60 (up to 1080p30 on XT) |
| Video Signal | Compressed (H.264) on USB |
| Focal Length | f3.5mm ~ 42.3mm, F1.8 ~ F2.8 |
| Min Object Distance (wide) | 100 mm |
| Min Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| HFoV | 72° |
| VFoV | 43° |
| Optical Zoom | 12x |
| Digital Zoom | 16x |
| Pan Range | +/-170° |
| Tilt Range | +/- 30° |
| Serial Control | UVC via USB - Serial In-Out |
| Ceiling Mount | Supported |
| Camera Mount | Tripod screw hole (1/4-20 UNC) |
| Weight | 0.91 Kg |
| Dimensions w/h/d | 128.5mm x 118mm x 156.2mm |
| Current Consumption (max) | 1 A |
| Avaya Clients Supported | Avaya Spaces, Avaya Cloud Office (ACO), Workplace, Equinox |
| 3rd Party Clients Supported | MS® Teams, MS® SfB, Skype®, Zoom®, Bluejeans®, Starleaf®, Pexip®, Cisco Webex®, Google Hangouts® |
| Video Configurations | White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/ manual) and WDR level |
| Voltage Range | 12V nominal (10.8 to 13.0 V) |
| IR Repeater as TTL Signal | On pin 7 Serial In |
| Camera Output | USB 3.0 |
| Microphone | Included |
| Presets | 10 when controlled from camera remote or UVC commands, 122 when controlled from XT |
| Far End Camera Control | Through XT codec (H.224, H.281) or third party App |
