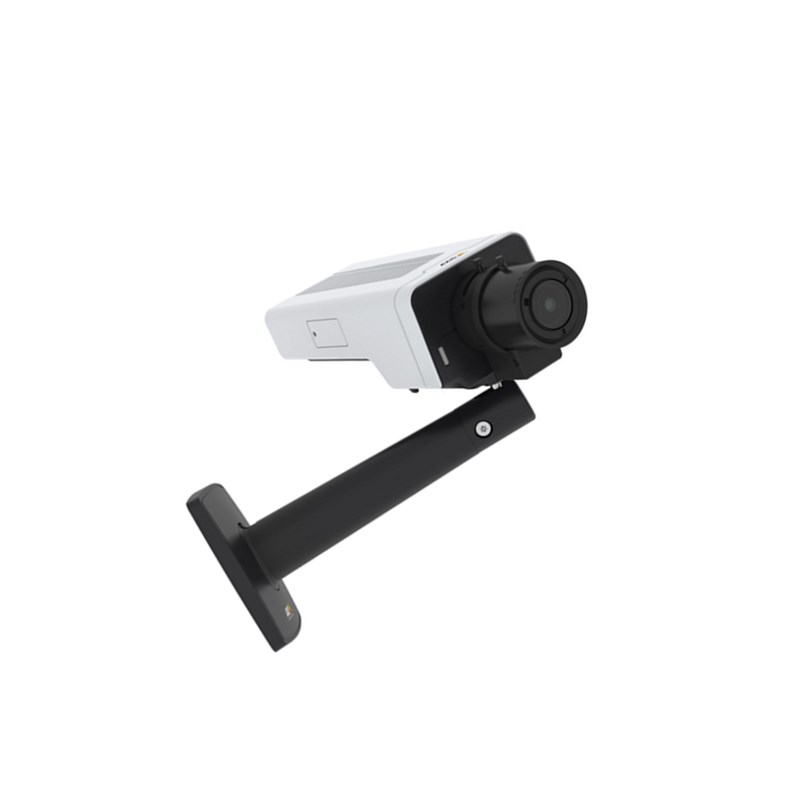

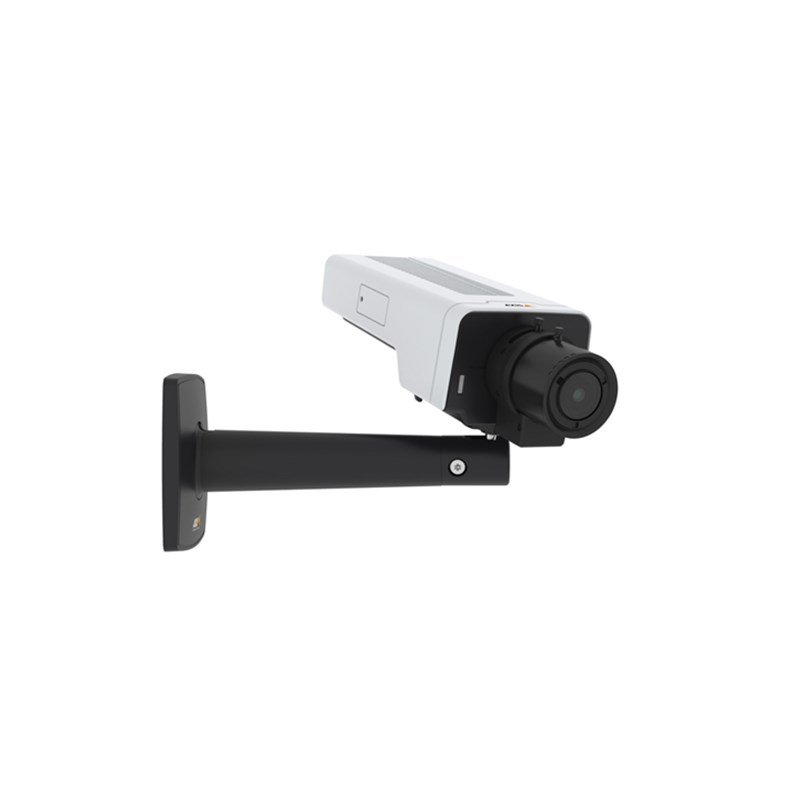

AXIS P1375 Mk II Network Camera
|
| Camera |
| Image sensor | 1/2.8” progressive scan RGB CMOS |
| | IR corrected, CS-mount lens, P-Iris
Varifocal 2.8–10 mm, F1.2
Horizontal field of view: 121°–33°
Vertical field of view: 63°–19°
|
| Day and night | Automatically removable infrared-cut filter |
| | HDTV 1080p 25/30 fps with Forensic WDR and Lightfinder:
Color: 0.05 lux, at 50 IRE F1.2
B/W: 0.01 lux, at 50 IRE F1.2
HDTV 1080p 50/60 fps with Lightfinder:
Color: 0.10 lux, at 50 IRE F1.2
B/W: 0.02 lux, at 50 IRE F1.2 |
| Shutter time | WDR: 1/34500 s to 2 s
No WDR: 1/66500 s to 2 s |
| Video |
| Video
compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265 (MPEG-H Part 2/HEVC) Motion JPEG |
| | 1920x1080 (HDTV) to 160x90 |
| Frame rate | WDR: 25/30 fps (50/60 Hz)
No WDR: 50/60 fps (50/60 Hz)
|
| | Multiple, individually configurable streams in H.264, H.265, and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/MBR H.264/H.265
Video streaming indicator |
| Multi-view streaming | Up to 8 individually cropped out view areas |
| | Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction, scene profiles: forensic, vivid, traffic overview
|
| Pan/Tilt/Zoom | Digital PTZ
Uploadable PTZ driver (Pelco D pre-installed) |
| Audio |
| Audio streaming | Two-way, full duplex |
| | AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz Configurable bit rate |
| | External microphone input, line input, digital input with ring power, line output, built-in microphone (can be disabled) |
| Network |
| | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot |
| | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| System integration |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org
|
| Onscreen controls | Electronic image stabilization Day/night shift Defogging Wide dynamic range |
| | Included
AXIS Video Motion Detection, AXIS Fence Guard,
AXIS Motion Guard, active tampering alarm, audio detection
Supported
AXIS Perimeter Defender
Support for AXIS Camera Application Platform enabling
installation of third-party applications
|
| | Analytics, shock detection, edge storage events, supervised external input, audio level, time scheduled Hardware: network, ring power overcurrent protection |
| | Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation, play audio clip, WDR mode, day/night mode
|
| Data streaming | Event data |
Built-in installation aids
| Focus assistant, pixel counter, remote back focus, autorotation |
| General |
| | Metal (zinc)
Color lid: White NCS S 1002-B
Color chassis: Black NCS S 9002-N
|
| Mounting | ¼”-20 tripod screw thread
Camera stand included |
| Sustainability | PVC free |
| Memory | 1 GB RAM, 512 MB Flash |
| | 12–28 V DC, max 9.6 W, typical 4.9 W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 9.6 W, typical 5.1 W |
| | RJ45 10BASE-T/100BASE-TX/1000BASE-T I/O: 6-pin 2.5 mm terminal block, for 2 supervised alarm inputs and 2 outputs RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block DC input, terminal block, 3.5 mm mic/line in, 3.5 mm line out i-CS connector (compatible with P-Iris and DC-iris) Security lock slot AXIS T92G20 connector |
| | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption
Support for recording to network-attached storage (NAS) |
| | -10 °C to 55 °C (14 °F to 131 °F)
Humidity 10-85% RH (non-condensing) |
| Storage conditions | -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing) |
| | EMC
EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A,
KCC KN32 Class A, KN35
Safety
IEC/EN/UL 60950-1
Network
NIST SP500–267
|
| Dimensions | 214 x 80 x 57 mm (8 7/16 x 3 1/8 x 2 1/4 in) |
| Weight | 750 g (1.7 lb) |
| | Connector kit, Installation Guide, Windows decoder 1-user
license, stand, Resistorx® L-key TR20, Torx® L-key T6 |
| | Axis mounts, Axis lenses, Axis midspans, Axis microphones
AXIS T92G20 Outdoor Housing
AXIS T8355 Digital Microphone |
