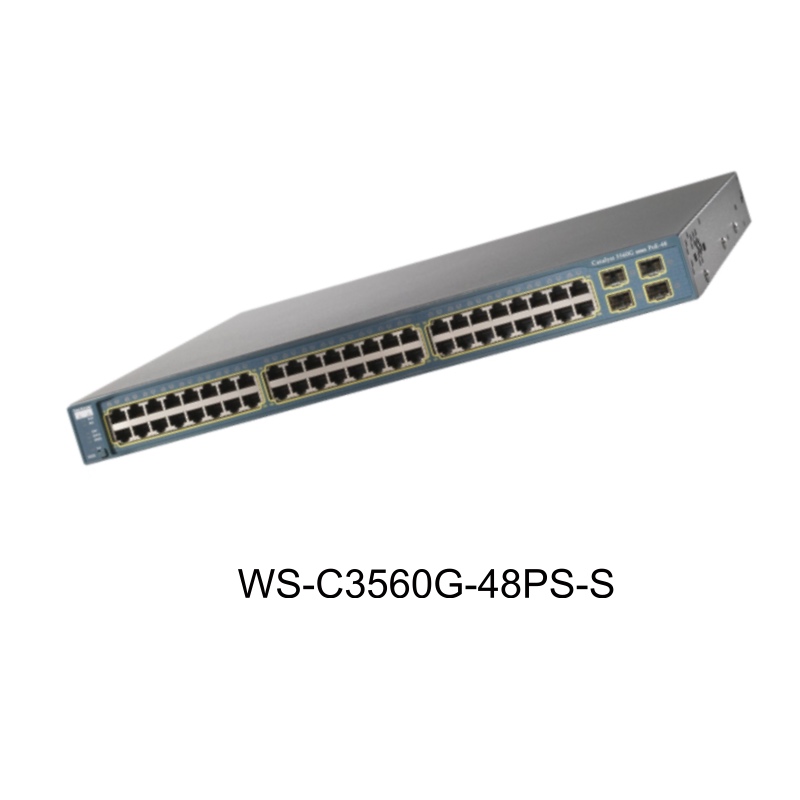

3560 48 10/100/1000T PoE + 4 SFP + IPB Image
Technical Specifications
General
Device Type:Switch 48 ports - managed - stackableEnclosure Type:Rack-mountable 1USubtype:Gigabit EthernetPorts:48 x 10/100/1000(PoE)Power Over Ethernet (PoE):PoEPerformance:Switching fabric bandwidth: 160 GbpsCapacity:Virtual interfaces (VLANs): 255JumboFrame Support:9216 bytesMax Units In A Stack:9Remote Management Protocol:SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet,SNMP 3, SNMP 2c, TFTP, SSH, CLIAuthentication Method:Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features
Hot swap module replacement, layer 2 switching, dynamic IP address assignment, DHCP support, power over Ethernet (PoE),auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, trafficshaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol(RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, StackWise Technology, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE
802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
RAM:125 MBFlash Memory:128 MB flashStatus Indicators:Port status, port transmission speed, port duplex mode, power, system, link/activity
Expansion / Connectivity
Interfaces:48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE ¦ 1 x USB Type A ¦ 1 x console - mini-USB Type B management ¦ 1 x RS-232 - RJ-45 management ¦ 1 x 10Base-T/100Base-TX - RJ-45 management ¦ 2 x network stack deviceExpansion Slots:1 (total) / 1 (free) x expansion slot
Power
Power Device:Internal power supplyInstalled Qty:1 (installed) / 2 (max)Power Redundancy:OptionalPower Redundancy Scheme:1+1 (with optional power supply)Voltage Required:AC 120/230 V (50/60 Hz)Features:Redundant Power System (RPS) connector
Miscellaneous
Rack Mounting Kit:IncludedMTBF:139,913 hoursCompliant StandardsTUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1Software Included: IOS LAN Base
Width:17.5 in
Depth:18.1 in
Height:1.8 in
Weight:16.53 lb
