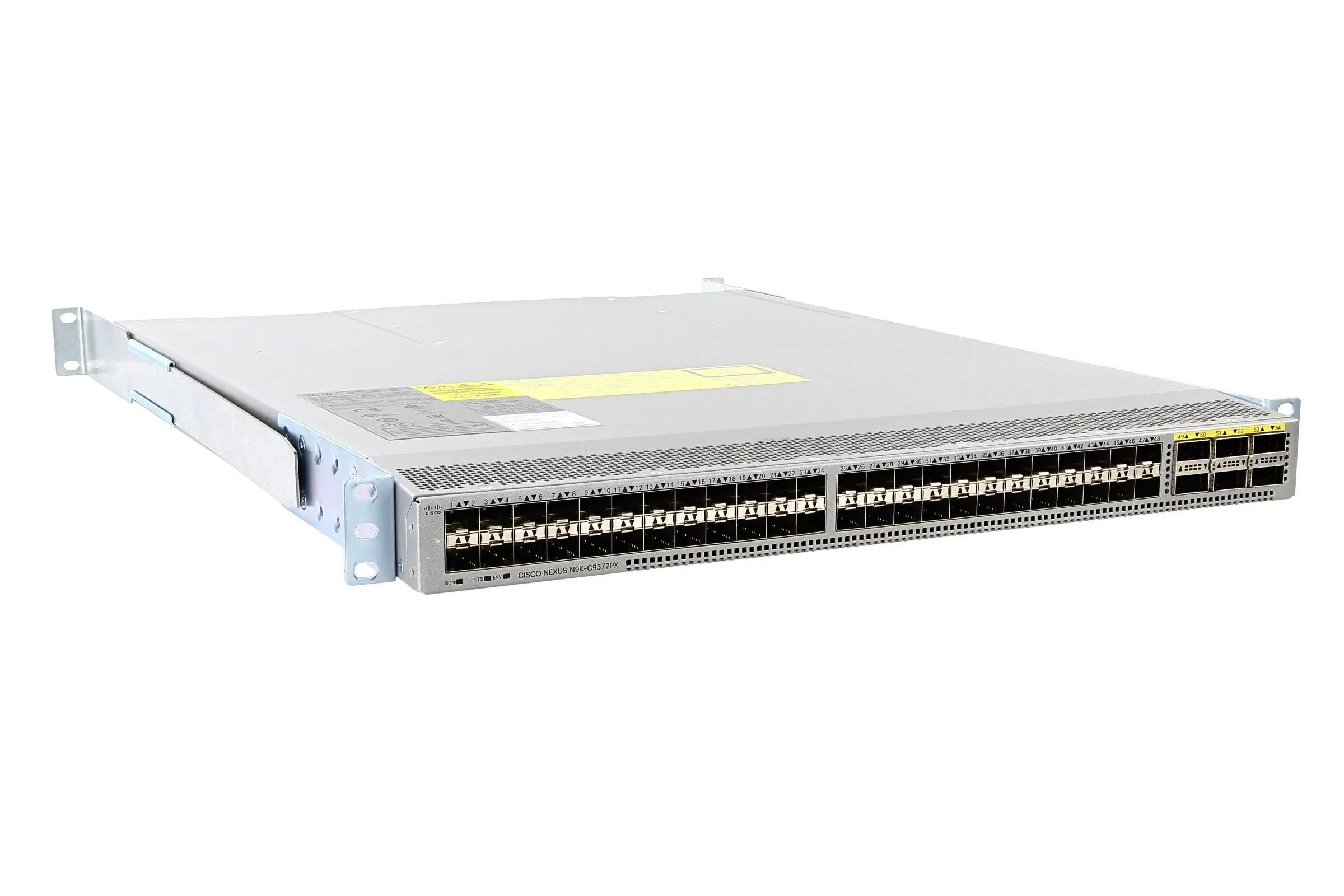

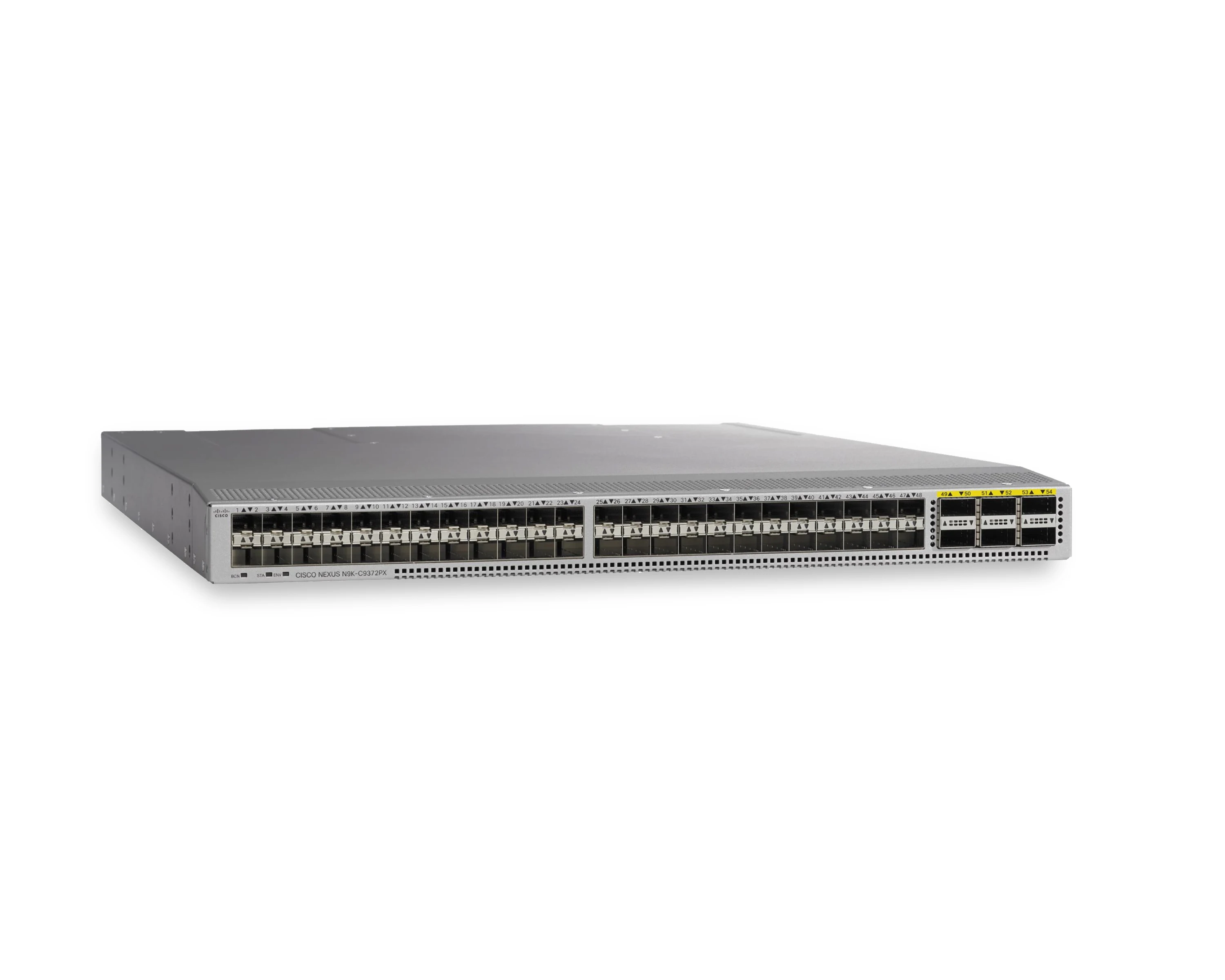

N9K-C9372PX-E
Cisco
Original New
1 year
| Quantity: | |
|---|---|
N9K-C9372PX-E
Cisc0 Ne xus 9372PX-E Switch (N9K-C9372PX-E) is a minor hardware revision of the Cisc0 Ne xus 9372PX. Enhancements include hardware capability for IP-based endpoint group (EPG) classification in Cisc0 ACI mode.
| Product Code | N9K-C9372PX-E |
| Ports | 48 fixed 1/10GBASE-T and 6 QSFP+ ports |
| Form factor | 1 RU |
| Throughput (Tbps) | 1.44 |
| Supported speeds | 1/10 Gigabit Ethernet speeds |

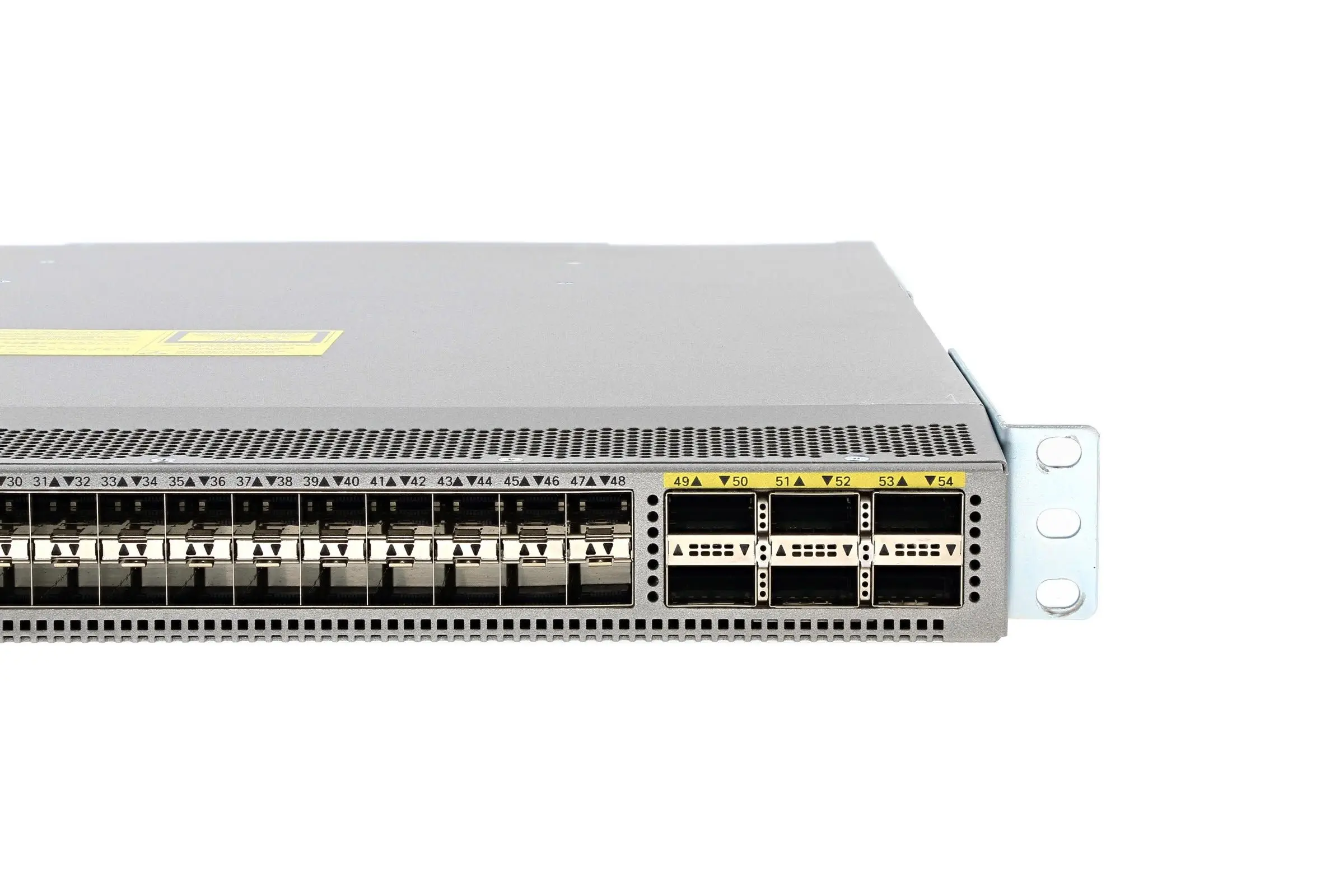

| 40 Gigabit Ethernet uplink port | 6 fixed QSFP+ ports ·Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber. ·The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations |
| Typical power(AC & DC) | 210W |
| Maximum power(AC & DC) | 537W |
| Maximum number of longest prefix match (LPM) routes | 128,000 |
| CPU, SSD, and memory | Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance. |
| Buffer (MB) | 37 |
| Operating System | NX-OS, ACI |
| Fans | 4 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed |
| Weight without power supplies or fans | 22.2 lb (10.1 kg) |
| Category | Model | Description |
| 40G Transceiver and CableOptions | QSFP-H40G- ACU10M | Cisc0 QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-ACU10M |
| QSFP-H40G-CU1M | Cisc0 QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-CU1M | |
| QSFP-H40G-CU3M | Cisc0 QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-CU3M | |
| QSFP-H40G-CU5M | Cisc0 QSFP to QSFP copper direct-attach 40GBASE-CR4 cable QSFP-H40G-CU5M | |
| 1/10GTransceiver and Cable Options | SFP-10G-SR | 10GBASE-SR SFP Module |
| SFP-10G-LR | 10GBASE-LR SFP+ Module for SMF 10 Gbps | |
| GLC-LH-SMD | Cisc0 GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| N9K-C9372PX-E | |
| Port | 48 fixed 1/10-Gbps SFP+ and 6 QSFP+ ports |
| Supported speeds | 1/10 Gigabit Ethernet speeds |
| 40 Gigabit Ethernet uplink port | 6 fixed QSFP+ ports |
| Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber. | |
| The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations. | |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power*(AC & DC) | 210W |
| Maximum power* (AC & DC) | 537W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | -40V to -72V DC (min-max) -48V to -60V DC (nominal) |
| Input voltage (HVDC) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed |
| RoHS compliance | Yes |
| Maximum number of longest prefix match (LPM) routes | 128,000* |
| Maximum number of IP host entries | 208,000* |
| Maximum number of MAC address entries | 96,000* |
| Number of multicast routes | ● 32,000 (without virtual PortChannel [vPC]) ● 32,000 (with vPC) |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | ● 32,000 (without vPC) ● 32,000 (with vPC) |
| Maximum number of Cisc0 Ne xus 2000 Series Fabric Extenders per switch | 16 |
| Number of access control list (ACL) entries | ● 4000 ingress ● 1000 egress |
| Maximum number of VLANs | 4096 |
| Maximum number of Virtual Routing and Forwarding (VRF) instances | 1000 |
| Maximum number of links in a PortChannel | 32 |
| Maximum number of ECMP paths | 64 |
| Maximum number of PortChannels | 528 |
| Number of active SPAN sessions | 4 |
| Maximum number of Rapid per-VLAN Spanning Tree (RPVST) instances | 507 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Maximum number of VXLAN tunnel endpoints (VTEP) | 256 |
| Environmental Properties | |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Weight | |
| Cisc0 Ne xus 9372PX/9372PX-E without power supplies or fans | 22.2 lb (10.1 kg) |
| Cisc0 Ne xus 9372TX/9372TX-E without power supplies or fans | 22.6 lb (10.25 kg) |
| Safety and EMC | |
| Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety | ● UL 60950-1 Second Edition ● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943 |
| EMC: Emissions | ● 47CFR Part 15 (CFR 47) Class A ● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A |
| EMC: Immunity | ● EN55024 ● CISPR24 ● EN300386 ● KN 61000-4 series |
| RoHS | The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors |
| Product Code | N9K-C9372PX-E | N9K-C9372TX |
| Ports | 48 fixed 1/10GBASE-T and 6 QSFP+ ports | 48 fixed 1/10GBASE-T and 6 QSFP+ ports |
| Form factor | 1 RU | 1 RU |
| Throughput (Tbps) | 1.44 | 1.44 |
| Supported speeds | 1/10 Gigabit Ethernet speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
| Typical power(AC & DC) | 210W | 374.5W |
| Maximum power(AC & DC) | 537W | 694W |
| Maximum number of longest prefix match (LPM) routes | 128,000 | 128,000 |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed | 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed |
| weight without power supplies or fans | 22.2 lb (10.1 kg) | 22.6 lb (10.25 kg) |
