8010
Cisco
New
1 Year
| Quantity: | |
|---|---|
● 1 Rack-Unit (1RU) fixed form factor
● Versatile Ethernet interface options: 1/10/25G and 40/100G
● G.8273.2 Class C Timing compliant
● Modular GNSS with Primary Reference Time Clock Class B (PRTC-B) for better performance
● Suitable for indoor or outdoor (sealed IP65/IP66 cabinet with heat exchanger conforming to GR487 specs with sufficient cooling) cabinets
● MACsec and IPsec support for secure data communication1
● Fully compliant with the MEF 3.0 standard for wireline networks2
● Rich packet Ethernet Operations, Administration, and Management (OAM) capabilities, including Y.1564 SADT
● Power-optimized router with advanced algorithms for reduced Operating Expenses (OpEx)
● Based on Cisco IOS XR Flexible Consumption Model (FCM) 2.0
Cisco 8010 Series Large Density Routers
Table 1. Key attributes of the 8011-4G24Y4H-I model
Chassis product ID | 8011-4G24Y4H-I |
CPU | 4 cores 2.2GHz |
Memory | 16GB DRAM |
Storage | 32GB eMMC |
Interfaces | 4 ports 40/100G QSFP28 24 ports 1/10/25G SFP28 4 ports 10/100/1000M RJ-45 |
Performance | 1004 Gbps |
Power supplies | Modular redundant (AC/DC) |
Fans | Fixed fans with redundancy |
Airflow | Front to back |
Operating temperature range | I-Temp –40° to +65°C (–40° to +149°F) at 305 m (1000 ft) –40° to +60°C (–40 to +140°F) at 1829 m (6000 ft) –40° to +53°C (–40 to +127°F) at 3960 m (13,000 ft) |
Nonoperating (storage) temperature | –40° to +70°C (–40° to +158°F) |
Operating humidity range | 5% to 95% RH, noncondensing |
Storage (relative) humidity | 5% to 95% at 40°C (104°F) per NEBS GR-63-Core |
Altitude | Up to 3960 meters (13,000 feet) |
Power | Worldwide ranging AC (90 to 264V; 50 to 60 Hz) Worldwide ranging DC (–40V to –72V) |
Surge rating* | DC: 2kV CM, 1kV DM AC: 2kV CM, 2kV DM |
Timing ports | Time of Day (ToD) and Building Integrated Timing Supply (BITS) 8000-TIC: 1 PPS, 10 MHz 8000-TIC-GNSS (internal GNSS PRTC-B module): 1 PPS, 10 MHz, ANT |
Physical specifications | Height: 43.6 mm (1.72 in.) Width: 439.4 mm (17.3 in.) Depth: 260 mm (10.24 in.) Weight: 4.5 kg (no PSU) |

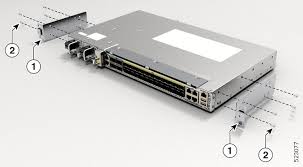

Mounting options | 19 in. (48 cm), 23 in. (58 cm), ETSI |
Management interfaces | USB console port USB memory port RS-232 console port 10/100/1000M RJ-45 Ethernet out-of-band management port |
