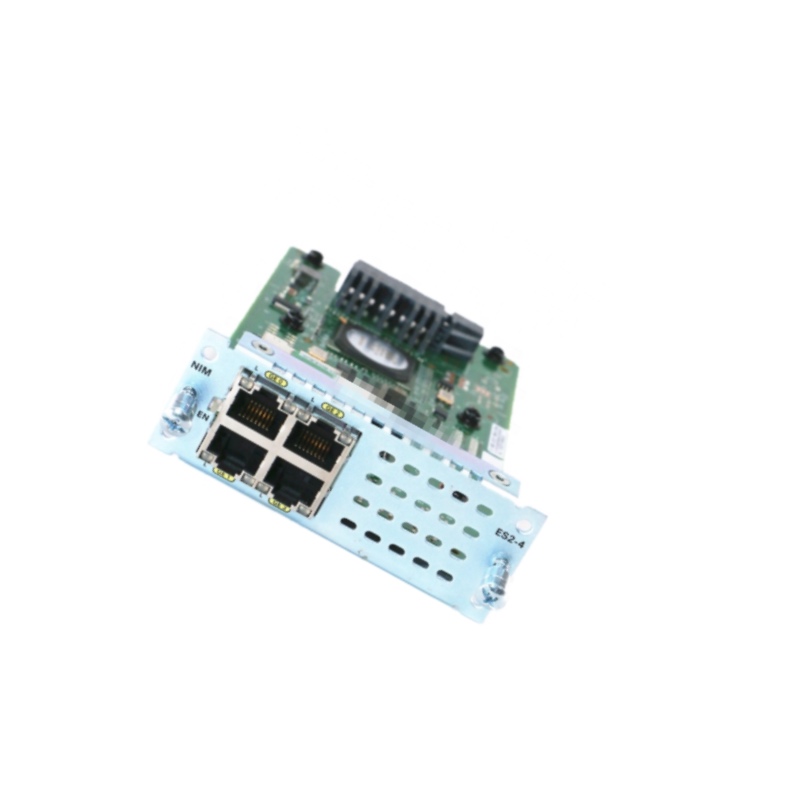

NIM-ES2-4
Cisco
2-3 days
cisco original new in box
1 year
| Quantity: | |
|---|---|
Product Code | NIM-ES2-4= |
| Form factor | Single-wide NIM form factor |
| Ports | 4-port Gigabit Ethernet |
| Dimensions (H x W x D) | 0.8 x 3.1 x 4.8 in. (2.1 x 7.9 x 12.2 cm) |
| Weight | 79g (0.17 lb) |
| Platform | Platform Maximum Support |
| Cisco 4221 | 2 |
| Cisco 4321 | 2 |
| Cisco 4331 | 2 |
| Cisco 4351 | 3 |
| Cisco 4431 | 3 |
| Cisco 4451 | 3 |
| Model | NIM-ES2-4= | NIM-ES2-8= |
| Form factor | Single-wide NIM form factor | Single-wide NIM form factor |
| Ports | 4-port Gigabit Ethernet | 8-port Gigabit Ethernet |
| Dimensions (H x W x D) | 0.8 x 3.1 x 4.8 in. (2.1 x 7.9 x 12.2 cm) | 0.8 x 6.2 x 4.8 in. (2.1 x 18.8 x 12.2 cm) |
| Weight | 0.8 x 3.1 x 4.8 in. (2.1 x 7.9 x 12.2 cm) | 108g (0.24 lb) |
NIM-ES2-4= Specification | |
| Form factor | Single-wide NIM form factor |
| Dimensions (H x W x D) | 0.8 x 3.1 x 4.8 in. (2.1 x 7.9 x 12.2 cm) |
| Weight | 79g (0.17 lb) |
| Standards | |
| IEEE protocols | Gigabit Ethernet: IEEE 802.3 and 10BASE-T · Gigabit Ethernet: IEEE 802.3u, 100BASE-TX, and 1000BASE-TX · IEEE 802.1d Spanning Tree Protocol · IEEE 802.1p CoS for Traffic Prioritization · IEEE 802.1q VLAN · IEEE 802.1X Security · IEEE 802.3x Full Duplex · IEEE 802.3af Power over Gigabit Ethernet Standard |
| RFC | RFC 2284, PPP Extensible Authentication Protocol (EAP) |
| MIBs | RFC 1213 · IF MIB · RFC 2037 ENTITY MIB · CISCO-CDP-MIB · CISCO-IMAGE-MIB · CISCO-FLASH-MIB · OLD-CISCO-CHASSIS-MIB · CISCO-VTP-MIB · CISCO-HSRP-MIB · OLD-CISCO-TS-MIB · CISCO-ENTITY-ASSET-MIB · CISCO-ENTITY-FRU-CONTROL-MIB · BRIDGE MIB (RFC 1493) · CISCO-VLAN-MEMBERSHIP-MIB · CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB · RMON1-MIB · PIM-MIB · CISCO-STP-EXTENSIONS-MIB · OSPF MIB (RFC 1253) · IPMROUTE-MIB · CISCO-MEMORY-POOL-MIB · ETHER-LIKE-MIB (RFC 1643) · CISCO-ENTITY-FRU-CONTROL-MIB.my · CISCO-RTTMON-MIB · CISCO-PROCESS-MIB · CISCO-COPS-CLIENT-MIB |
| Connectors and cabling | 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted pair (UTP) cabling · 100BASE-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling · 1000BASE-TX ports: RJ-45 connectors; two-pair Category 5e and Category 6 UTP cabling |
| LED indicators | Link status LED: One LED per port for indicating link status · PoE LED: One LED per port system for PoE status indication |
| Power Requirements | |
| Internal power supply | Optional PoE system power supply available for all Cisco 4000 Series routers |
| DC power support | DC system power input available on the Cisco 4351, 4431, and 4451 routers · PoE option not available with DC system power input |
| DC power support | DC system power input available on the Cisco 4351, 4431, and 4451 routers · PoE option not available with DC system power input |
| Software support | Minimum Cisco IOS-XE Software Release 3.15 for Cisco 4000 Series routers: IP Base License of the Universal image |
| Environmental | |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Operating humidity | 10 to 90 percent, noncondensing |
| Nonoperating temperature | -4° to 149°F (-20° to 65°C) |
| Operating altitude | 15,000 ft (4,570m) |
| Regulatory compliance, safety, and EMC | When installed in a Cisco 4000 Series router, the Cisco Gigabit Ethernet LAN Switch NIM meets the standards (regulatory compliance, safety, and EMC) of the router itself. Refer to the data sheets for the Cisco 4000 Series routers for more details. |
