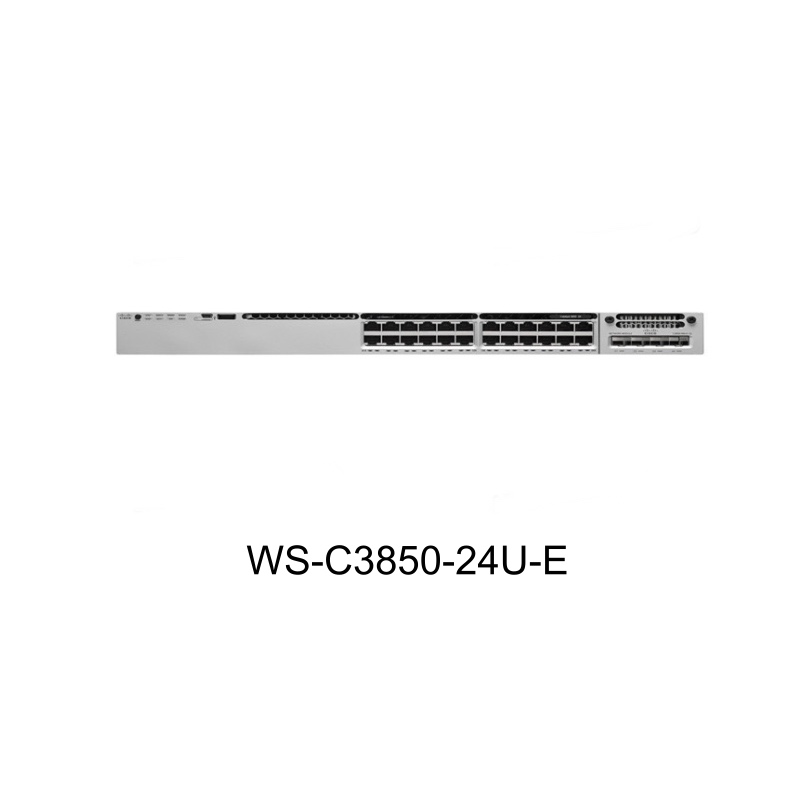

WS-C3850-24U-E
cisco
2-3 days
cisco original new in box
1 year
| Quantity: | |
|---|---|
Overview(WS-C3850-24U-E)
The Catalyst 3850 switch currently offers the industry high 480 Gbps stacking bandwidth to meet network demand, including Gigabit desktop and 802.11ac wireless. The switch delivers advanced capabilities such as a high-performance 24/48 ports GE switch, 480G stacking, Power over Ethernet Plus, StackPower and flexible NetFlow on all ports.The Cisc Catalyst 3850 switch brings Cisc o IOS excellence to wireless by extending wired infrastructure features, resiliency, granular QoS, and scalability. It provides built-in wireless controller capabilities with 40G wireless throughput, support for 50 access points and 2000 wireless clients per switch or stack, and support for 802.11ac.
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Header | |
| Compatibility | PC |
| Manufacturer | CISC0 Systems |
| Packaged Quantity | 1 |
| Product Line | Catalys t |
| Model | WS-C3850-24U-E |
| Brand | CISC0 |
| Interface Provided | |
| Interface | 24 |
| Connector Type | USB |
| PoE Power | yes |
| 48Qty | 15.4 W |
| Type | 1000Base-T |
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 269,450 hours |
| Color Category | Gray |
| Networking | |
| Connectivity Technology | Wired/Wireless |
| Remote Management Proto | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | PoE, Port duplex mode, Port transmission speed, Status, System |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Cisc o StackPower technology, Cisc o StackWise-480 technology, DHCP snooping, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Flexible NetFlow (FNF), IGMP snooping, IPv4 support, IPv6 support, Layer 3 load balancing, Link Aggregation Control Protocol (LACP), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), STP Root Guard, Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Uni-Directional Link Detection (UDLD), Universal power over Ethernet (UPOE), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support |
| Power Over Ethernet (PoE) | UPOE |
| Advanced Switching | Layer 3 |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| PoE Budget | 435 W |
| Performance | |
| Frequency Required | 50/60 Hz |
| Power Provided | 715 Watt |
| RAM | |
| Installed Size | 4 GB |
| Software | |
| Type | Cisc o IOS IP Services |
| Networking | |
| Type | Switch |
| Connectivity Technology | Wired/Wireless |
| Remote Management Proto | HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Port duplex mode, Port transmission speed, Status, System |
| Ports Qty | 24 |
| Features | Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, DHCP snooping, DHCP support, DiffServ support, Dynamic IP address assignment, Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), Load balancing, MAC Address Notification, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Port Security, Power over Ethernet (PoE), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Syslog support, Unicast Storm Control, VLAN support |
| Subcategory | Network hubs and switches |
| MAC Address Table Size | 32000entries |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | no |
| Advanced Switching | Layer 3 |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | Jumbo Frame Support 9018 bytes |
| Subtype | 10 Gigabit Ethernet |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Nominal Voltage | AC 120/230 V |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Type | Internal power supply |
| Service | |
| Support Details Type | Technical support |
| Support Details Service Inc | Consulting |
| Support Details Full Contract Period | 1 years |
| Slot Provided | |
| Type | Expansion slot |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | CISC0 IOS IP Services |
| Dimensions & Weight | |
| Width | 17.7 in |
| Depth | 11.5 in |
| Height | 1.7 in |
| Weight | 10.25 lbs |
| Service & Support | |
| Type | Limited lifetime warranty |
| Capacity | |
| Type | VLANs supported |
| Value | 4049 |
| Flash Memory | |
| Installed Size | 256 MB |
| Performance | |
| Type | Switching capacity |
| Value | 640 Gbps |
| Ports | |
| Qty | 24 |
| Type | 1 Gigabit / 10 Gigabit SFP+ |
| RAM | |
| Installed Size | 4 G |
