OPVXG
FLuke
New
1 year
| Quantity: | |
|---|---|

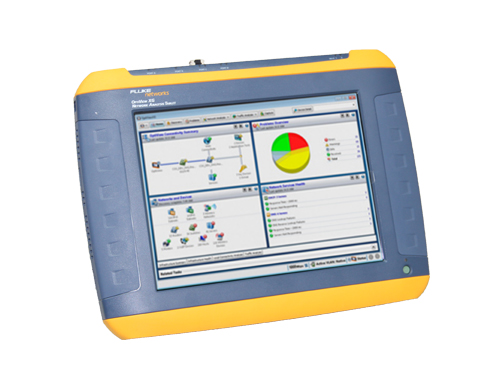

The OptiView® XG is the first tablet specifically designed for the network engineer. It automates root-cause analysis of wired and wireless network and application problems allowing the user to spend less time on troubleshooting and more time on other initiatives. It is designed to support the deployment and troubleshooting of new technologies, including unified communications, virtualization, wireless and 10 Gbps Ethernet. The result is that new initiatives get up and running faster and networks stay productive even in these days of smaller teams.
Integrates the latest wired and wireless technologies with powerful dedicated hardware in a unique tablet form factor to connect, analyze and solve network and application problems anywhere.
Displays your network exactly the way you want to see it through intuitive, customizable dashboards and interactive maps
Provides performance testing, 'on-the-wire' and 'in-the-air' automated analysis up to 10 Gbps
Enables proactive analysis by analyzing the information you need before issues arise, monitoring for problems, and notifying you immediately
Out-of-the-box and customizable reports and maps
Portable
Multiple wireless adapters
High-resolution display
Extendable 2 hours of battery life
Connectivity
Performance
Operating Temperature: 10°C to 30°C (50°F to 86°F) with up to 95% Relative Humidity. 0°C to 50°C (32°F to 122°F) with up to 75% Relative Humidity
Storage Temperature: -40°F to +160°F (-40°C to +71°C)
Shock and Vibration: Meets requirements of MIL-PRF-28800F for Class 3 equipment
Safety: EN 61010-1 2nd Edition
Altitude: 4600 m (15000 ft) on batteries
Dimensions: (H,W,D) 9.45" x 12.43" x 2.03" (240 mm x 315.7 mm x 51.6 mm)
Weight: 5.6 lb. (2.5 kg) with batteries; 4.5 lb. (1.8 kg) without batteries
Display: Color active matrix TFT LCD, 1024 x 768 pixels, LED backlight, touch panel with 2 touch points
Security: Kensington® security slot on rear panel for connection of security cable
Operating System: Window 7 Professional, 64 Bit, Service Pack 1
PC - Processor: Intel® Core™ Duo CPU U9300 @ 1.2GHz
PC - RAM: 4 GB
Capture Buffer: 4 GB
| Category | Specification |
|---|---|
| Model Name | OptiView XG Network Analysis Tablet |
| Form Factor | Handheld, ruggedized tablet with integrated carrying handle |
| Hardware & Display | |
|---|---|
| Display | 12.5-inch HD (1366x768) sunlight-readable capacitive touchscreen |
| Processor | Intel Core i5 |
| Memory (RAM) | 8 GB DDR3 |
| Storage | 256 GB Solid State Drive (SSD) |
| Ports & Interfaces | Network Interfaces: 2 x 10/100/1000BASE-T Copper RJ-45 (Gigabit), 2 x SFP/SFP+ Fiber slots (1G/10G) Other Ports: 2 x USB 3.0, 1 x HDMI-out, Audio In/Out, SD Card slot, Dock connector |
| Wireless | Integrated 802.11a/b/g/n/ac dual-band (2.4 & 5 GHz) Wi-Fi |
| Battery Life | Up to 4 hours (standard), optional high-capacity battery available |
| Camera | 5 MP rear-facing camera for documenting physical infrastructure |
| Analysis & Capabilities | |
|---|---|
| Core Analysis | Integrated expert analysis, automated troubleshooting, network path analysis, application analysis, security scanning. |
| Analysis Modes | AutoTest: One-touch comprehensive network health check. Discover: Layer 2/Layer 3 network discovery and topology mapping. Capture: Deep packet capture and analysis (Wireshark compatible). Throughput: RFC 2544 performance testing. Wi-Fi Analyzer: Spectrum analysis (with optional adapter) and Wi-Fi network analysis. |
| Packet Capture | Capture Engine: Custom FPGA-based hardware accelerator for full-line rate capture on all ports. Capture-to-Disk Rate: Up to 10 Gbps (with SFP+ interfaces). Buffer: Up to 8 GB RAM buffer for captures. File Format: Standard .pcap format, fully compatible with Wireshark. |
| Protocol Decodes | Over 1,200 protocols supported. |
| Throughput Testing | Rate: Up to 10 Gbps line rate (RFC 2544). Metrics: Throughput, Latency, Frame Loss, Burstability. |
| Network Discovery | Devices: Discovers up to 15,000 devices per minute. VLANs: Auto-discovers all VLANs. Topology: Generates Layer 2 and Layer 3 topology maps. |
| Wireless (Wi-Fi) Analysis | |
|---|---|
| Integrated Radio | 2x2 MIMO 802.11a/b/g/n/ac (2.4 & 5 GHz) for connectivity and analysis. |
| Optional Adapter | AirCheck™ G2 Spectrum Analyzer Adapter: - Identifies non-Wi-Fi interference. - Spectrum analysis and Wi-Fi analysis simultaneously on the same screen. |
| Wi-Fi Analysis Metrics | AP and client details, channel utilization, signal strength, security settings, and data rates. |
| Physical & Environmental | |
|---|---|
| Dimensions (H x W x D) | 13.3 x 9.9 x 2.3 in (33.8 x 25.1 x 5.8 cm) |
| Weight | 7.5 lbs (3.4 kg) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Ruggedization | Designed to withstand a 3-foot (1-meter) drop. |
| Software & Support | |
|---|---|
| Operating System | Windows 10 IoT Enterprise |
| Licensing | Standard: Includes core analysis, discovery, and capture features. Optional: Protocol decodes and expert analysis are licensed features. |
| Updates | Regular software and protocol decode updates via Fluke Networks. |
| Included Applications | OptiView XG Analysis Suite, LinkRunner Config Generator, Wireshark, Report Player, Microsoft .NET Framework |
| Included Accessories | |
|---|---|
| Typical Contents | Main unit, AC power adapter/charger, (2) copper test leads, (2) fiber loopbacks, soft travel case, printed Quick Start guide. |
| Optional Accessories | High-capacity battery, docking station, vehicle power adapter, variety of SFP/SFP+ transceivers, AirCheck G2 Spectrum Adapter, hard carrying case. |
All-in-One Tool: Combines a powerful protocol analyzer, network tester, and Wi-Fi analyzer in a single handheld unit.
10 Gbps Capable: One of the first handheld analyzers capable of capturing and generating traffic at full 10 Gbps line rates using the SFP+ ports.
Hardware Acceleration: Dedicated FPGA for packet capture ensures zero packet loss at high speeds, unlike software-only solutions.
Expert Analysis: Built-in expert system automatically identifies and diagnoses hundreds of common network problems.
Integrated Wireshark: Provides the deep-dive capabilities of the industry-standard Wireshark analyzer in a portable form factor.
Comprehensive Discovery: Rapidly discovers and maps entire network segments, including devices, VLANs, and topology.
