H3C IE4300-12P-AC Industrial Gigabit Ethernet 8-Port IP41 Surveillance/PLC Switch

                                     H3C IE4300-12P-AC Router

H3C Industrial Ethernet 4300 switch series is H3C’s latest industrial Ethernet switches designed for rugged environment and wide operating temperature. IE4300 switch series adhere to industrial grade hardware design and adopts highly reliable industrial grade components, while using the highly developed and tested Comware platform to provide a trustworthy Ethernet solution in wide operating temperature scenarios. IE4300 industrial switch series offer extensive industrial environmental compliance and certifications, and can be widely used in public transport, traffic management, smart building and other extreme temperature scenarios.

H3C IE4300 Industrial switch series come in the following models:

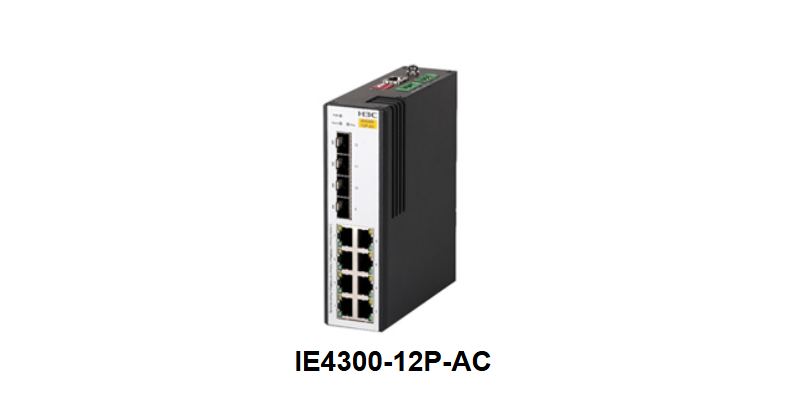

H3C IE4300-12P-AC: 8 × 10/100/1000 BASE-T Ethernet ports, 4 × 1000 BASE-X SFP optical ports;

H3C IE4300-12P-PWR: 8 × 10/100/1000 BASE-T Ethernet ports (PoE+), 4 × 1000 BASE-X SFP optical ports;

Exceptional Quality, Solid as a Rock

The IE4300 industrial switch series are the latest Ethernet switches developed with industrial compliance and wide operating temperature in mind. All models are built with industrial grade components, with reliability significantly higher than commercial counterparts running under the same conditions.

Fanless natural cooling design. Multiple heat dissipation components such as embedded heatsink and thermal adhesive make it perform consistently under harsh environment. Operating temperature ranges from -40°C to 75°C。

Shock and vibration resistant, dust proof, IP40 compliant.

Support high level electromagnetic shielding, capable of withstanding electrostatic discharge, surge/burst/electrical fast transients, pulse magnetic field, radiated electrical field.

Rich Software Features

IE 4300 industrial switch series integrated the switching, routing, ring network protection and security.

Support full layer-2 Ethernet feature sets, with 802.1Q VLAN, protocol based VLAN, Voice VLAN, Guest VLAN, Q-in-Q, flexible Q-in-Q encapsulation, and multicast VLAN. STP/RSTP/MSTP, 802.3x Ethernet flow control protocol; support QoS congestion management through data classification and prioritization to ensure transmission of mission critical data; support Link Layer Discovery Protocol (LLDP), Link Aggregation Control Protocol (LACP), Device Link Detection Protocol (DLDP), Generic Attribute Registration Protocol (GARP), multicasting at layer 2 and layer 2 features such as VLAN registration protocol and broadcast storm suppression.

IE4300 switch series supports IPv4 and IPv6 dual stack protocols as well as IPv4 and IPv6 forwarding at full line speed on hardware. It supports IPv4/v6 static routing, routed port, RIP and OSPF (in small scale). In addition, it supports IGMP Snooping, DHCP Server, DHCP Client, DHCP Snooping, DHCP Relay (option 82) and Domain Name System (DNS).

IE4300 switch series supports Rapid Ring Protection Protocol (RRPP). The Rapid Ring Protection Protocol (RRPP) is a link layer protocol dedicated to Ethernet rings. It prevents broadcast storms caused by data loops when an Ethernet ring is healthy, and rapidly restores the communication paths between the nodes after a link is disconnected on the ring by bringing up the backup link. Compared with STP, RRPP has the following advantages: fast topology convergence (within 50 milliseconds); convergence time independent of Ethernet ring size. On intersecting rings, topology update of an RRPP ring does not ripple to other rings, data transmission thus becomes more stable. RRPP also supports load balancing in Ethernet rings, which improves physical link bandwidth utilization.

IE4300 industrial switch series implements full Ethernet security features. By enforcing multiple sets of security mechanisms, they effectively limit malware spread and traffic flow attack. The switches support layer 2 to 4 ACL control, block CPU, ARP, and DoS attacks. IEEE 802.1x port-based authentication is a client-server-based access control and authentication protocol that restricts unauthorized clients from connecting to a LAN through publicly accessible ports. TACACS+ and RADIUS authentication can implement centralized management for switches, and prevent unauthorized change in user allocation. They also support rapid deployment of End-point Admission Domination (EAD), as well as SAVI-based IPv6 source address validation.

Ethernet Ring Protection Switching (ERPS) is a ring network protection protocol defined by ITU, G.8032. It is a link layer protocol specially applied to the Ethernet ring network. When the Ethernet ring network is complete, it can prevent broadcast storms caused by the data loop, and when a link on the Ethernet ring network is disconnected, it can quickly restore the communication between various nodes on the ring network.

Visualization

H3C IE4300 series industrial switches support Telemetry technology. The real-time resource information and alarm information of the switch can be sent to the operation and maintenance platform through the GRPC protocol. The operation and maintenance platform analyzes real-time data, which can realize network quality backtracking, troubleshooting, risk warning, structure optimization and other functions to accurately guarantee user experience.

Green Features

IE4300 switch series implements a variety of green energy saving features, including auto-power-down (port automatic energy saving). If the interface status is always down for a period of time, the system automatically stops the interface power and the system enters power-saving mode. They also support EEE energy feature, by which if a port stays idle for a period of time, the system will set the port to energy-saving mode. The switches are also compliant with material environmental protection and the EU RoHS safety standard.

Comprehensive Authentication Strategies

IE4300 industrial switch series supports AAA, RADIUS authentication, user-based account, IP, MAC, VLAN and port based dynamic or static user identification and binding. The switches also support H3C iMC to implement real-time user management, diagnose and remove illicit network attack.

Outstanding Management

IE4300 industrial switch series management interface supports SNMPv1/V2/v3, Intelligent Management Center (iMC), Command Line Interface (CLI), Web based management, TELNET and FTP configuration. They also support SSH2.0 and SSL encryption to make management safer.

Power Failure Alarms

H3C IE4300 industrial switch series provides redundant power supply and support alarms based on power failure.

H3C IE4300 industrial Switch Series support IEEE Dying Gasp for alarms when a power outage occurs.

Hardware specifications

Software Specifications
