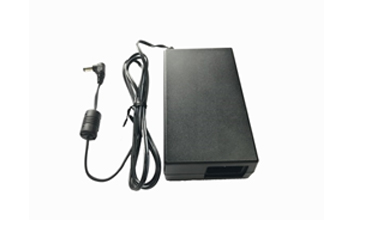

ADP040-54V-GL
H3C
New
1 Year
| Quantity: | |
|---|---|
Item | Specification |
Size（L×W×H） | 110mm × 62mm × 31.5mm |
Weight | 220g |
Input Voltage | 90V AC～264V AC; 47~63Hz |
Input Current | 1.5A Max, at 115Vac, Full load 0.8A Max, at 230Vac, Full load |
Input Connector* | IEC320 C14 |
Output Voltage | 54V |
Output rated current | 0.74A |
Output Power | 40W |
Output Connector |
|
Power Efficiency | Level VI |
Protection | OCP,OVP,SCP |
Temperature | Operation: -10℃～45℃ Non-operation: -40℃～70℃ |
Humidity（Non-condensing） | 5%～95% |
Altitude | Up to 5000m |
EMC | EN 55032: RE,CE CISPR 32: RE,CE IEC 61000-4-2: ESD IEC 61000-4-3: RS IEC 61000-4-4: EFT IEC 61000-4-5: Surge IEC 61000-4-6: CS IEC 61000-4-11: DIPS |
Safety Approvals | CE,TUV,UL,CCC |
* Note: AC power cord will be configured with the adapter according to the country or areas
Item | Specification |
Size（L×W×H） | 110mm × 62mm × 31.5mm |
Weight | 220g |
Input Voltage | 90V AC～264V AC; 47~63Hz |
Input Current | 1.5A Max, at 115Vac, Full load 0.8A Max, at 230Vac, Full load |
Input Connector* | IEC320 C14 |
Output Voltage | 54V |
Output rated current | 0.74A |
Output Power | 40W |
Output Connector |
|
Power Efficiency | Level VI |
Protection | OCP,OVP,SCP |
Temperature | Operation: -10℃～45℃ Non-operation: -40℃～70℃ |
Humidity（Non-condensing） | 5%～95% |
Altitude | Up to 5000m |
EMC | EN 55032: RE,CE CISPR 32: RE,CE IEC 61000-4-2: ESD IEC 61000-4-3: RS IEC 61000-4-4: EFT IEC 61000-4-5: Surge IEC 61000-4-6: CS IEC 61000-4-11: DIPS |
Safety Approvals | CE,TUV,UL,CCC |
* Note: AC power cord will be configured with the adapter according to the country or areas
