SR6602-FL
H3C
New
1 Year
| Quantity: | |
|---|---|

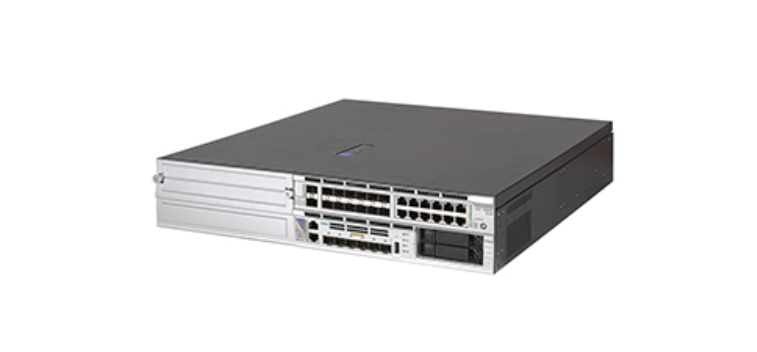

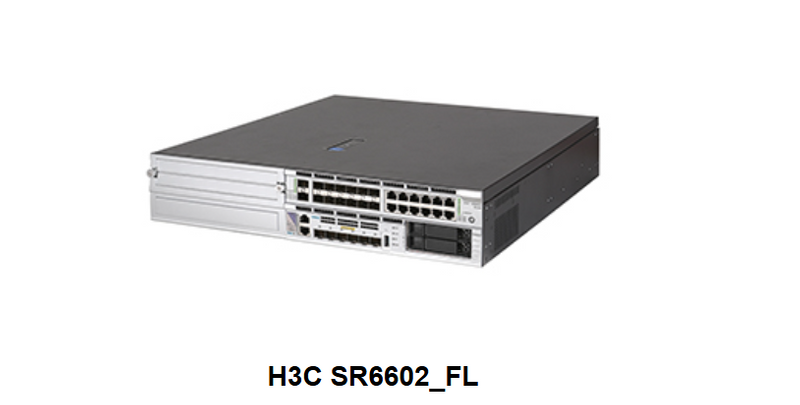

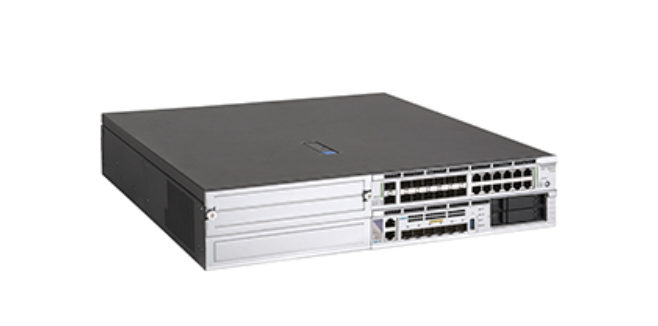

H3C SR6602_FL
Runs Comware 9, a containerized network operating system for the cloud era, which is a truly open, highly efficient network platform capable of building a multiservice all-scenario ecosystem.
Provides professional computing resources, including an Intel Xeon CPU, two external drive slots, and a standard PCIe slot in which you can install a GPU to deliver AI computing power.
Uses an advanced hardware virtualization solution that groups hardware resources including CPU, memory, storage, and interfaces into resources pools to enable flexible and dynamic resource allocation and adjustment based on the actual requirements.
Innovative electromechanical designs allow quick chassis disassembly without using tools, facilitating memory expansion and standard PCIe device installation.
Modular, redundant, and hot swappable designs for components such as power supplies and fan trays and the front-to-rear air aisle make the device highly available and easy to maintain.
Two-drive RAID configuration enhances data availability.
Provide an OpenStack Nova compute component that can interact with OpenStack control nodes for lifecycle management of virtual machines.
Offer Docker and Kubelet functions and support using Docker or Kubernetes technologies to deploy third-party applications on the device as containers.
Support using the AD-WAN solution to achieve rapid WAN deployment, security tunnel establishment, optimal link selection, and traffic visibility.
The SR6602-I comes with twenty 10-GE ports and twelve GE ports and allows you to increase the port quantity to 32 and 28, respectively, to meet the requirements in high-density Ethernet convergence scenarios.
The SR6602-I can provide OC3/STM-1 POS interfaces that can be channelized into E1 interfaces to deliver E1 line rate convergence with the narrowband access capacity, density, and performance all reaching the industry-leading level.
Outstanding encryption performance and rich VPN features
When deployed with the ADVPN solution, the SR6602-I supports dynamic and agile establishment of IPsec tunnels between branch and headquarters (hub-spoke), and between branch and branch (full mesh) across the WAN.
The SR6602-I can be used as an LNS device at the 4G/5G VPDN user side to aggregation data from massive L2TP and GRE tunnels, and use IPsec to encrypt and decrypt tunnel data in high speed.
Item | SR6602-I | SR6602-IE |
IP Forwarding Performance (IMIX) | 35Gbps | 75Gbps |
Forwarding Performance with ACL+NAT+QOS (IMIX) | 35Gbps | 50Gbps |
20Gbps | 35Gbps | |
AD-WAN TypicalEncryption Performance (IMIX) | 6Gbps | 10Gbps |
CPU | 8 cores, 2.5 GHz | 12 cores, 2.3 GHz |
Built-in WAN port | 6 × 10GE SFP+ ports | 6 × 10GE SFP+ ports |
Built-in LAN port (supports LAN/WAN switching) | 14 × 10GE SFP+ ports and 12 × GE RJ-45 ports | 14 × 10GE SFP+ ports and 12 × GE RJ-45 ports |
FIP slot | 1 × FIP slot (supports the FIP-30) | 1 × FIP slot (supports the FIP-30) |
PCIe slot | 1 | 1 |
Memory slot | 4CH DDR4 RDIMM slots | 4CH DDR4 RDIMM slots |
Memory size (default/maximum) | 8 G/128 G | 32 G/128 G |
Built-in storage | 4 GB | 64 GB |
External SATA drive slot | 2 × 2.5-inch slots | 2 × 2.5-inch slots |
Internal M.2 SSD slot | 1 | 1 |
USB 3.0 port | 1 | 1 |
Console port | 1 | 1 |
Open-source application management platforms supported | KVM, Docker | KVM, Docker |
Maximum power consumption (aggregation mode/converged mode) | 224 W/558 W | 239 W/567 W |
Power supply redundancy | Supported | Supported |
Removable fan trays | 2 | 2 |
Power input voltage | AC: 100 V to 240 V DC: –48 V to –60 V HVDC: 240 V to 380 V | AC: 100 V to 240 V DC: –48 V to –60 V HVDC: 240 V to 380 V |
Height | 2 RU | 2 RU |
Dimensions (H × W × D) | 88 × 440 × 480 mm (3.46 × 17.32 × 18.90 in) | 88 × 440 × 480 mm (3.46 × 17.32 × 18.90 in) |
Operating Temperature | Without drives or GPUs: 0°C to 45°C With drives or GPUs: 0°C to 40°C | |
Operating Altitude | < 5000m | |
Operating Humidity | 5 to 95%, non-condensing | |
Storage Temperature | –40°C to 70°C | |
EMC Standards Compliance | FCC Part 15 Subpart B CLASS A ICES-003 CLASS A VCCI-CLASS A CISPR 32 CLASS A EN 55032 CLASS A AS/NZS CISPR32 CLASS A CISPR 35 EN 55035 EN 61000-3-2 EN 61000-3-3 ETSI EN 300 386 GB/T 9254.1 | |
Safety Standards Compliance | FDA 21 CFR Subchapter J UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 | |
Environment Standards Compliance | IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-78 IEC 60068-2-30 IEC 60068-2-14 | |
Shock and vibration Standards Compliance | IEC 60068-2-64 IEC 60068-2-31 IEC 60068-2-27 | |
Item | Specification |
Layer 2 protocol | Ethernet, Ethernet II, VLAN, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server |
IP services | Unicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream ECMP UCMP |
IP application | Ping, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, SNTP |
IPv4 routing | Static routing Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS Routing policy Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP |
IPv6 | IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 tunnel, 6PE IPv6 tunneling technologies: manual tunneling, automatic tunneling, GRE tunnel, 6to4, ISATAP Static routing Dynamic routing: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 multicast: MLDv1/v2, PIM-DM, PIM-SM |
QoS | LR Committed access rate (CAR) FIFO, WFQ, CBQ Generic Traffic Shaping (GTS) Traffic classification |
Security | Portal, 802.1X, IP source guard Local authentication, RBAC, RADIUS, TACACS ACL, filter, connection limit IKE/IKEv2, IPsec ADVPN L2TP, NATPKI, RSA, SSHv1.5/2.0, URPF, and GRE ARP attack prevention Endpoint Admission Defense (EAD) |
MPLS | LDP, Static LSP L3VPN: MCE/multirole host L2VPN: Martini, Kompella, CCC, SVC |
High availability | VRRP, VRRPv3 Bandwidth-based load balancing and backup IP address-based load balancing and backup NQA collaboration with routing, VRRP or interface backup |
Management and maintenance | SNMPv1/v2c/v3, MIB, Syslog, RMON Branch Intelligent Management System (BIMS), deployment from a USB drive CLI, file system, and dual image DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP NQA tests Console port login, Telnet (VTY) login, SSH login, FTP login EAA |
Virtualization | Integration of a highly available and high-performance open virtualization platform that supports third-party operating systems, such as Windows, CentOS, Ubuntu, and RedHat Complete lifecycle management of virtual machines, including VM creation, modification, startup, suspend, recovery, hibernation, reboot, shutdown, and power-off Monitoring of critical VM resources, such as vCPU, memory, disk I/O, and network I/O Support of high-performance virtualization Ethernet adapter and SR-IOV Support of fast app deployment, app deployment to VMs through a USB drive, and unified app deployment across the network Complete troubleshooting and recovery mechanism Scheduled backup and manual backup Real-time monitoring of VM state VM anomaly detection and auto reboot Integration of Docker and Kubelet functions, allowing deployment of third-party applications on the device as containers through Docker or Kubernetes |

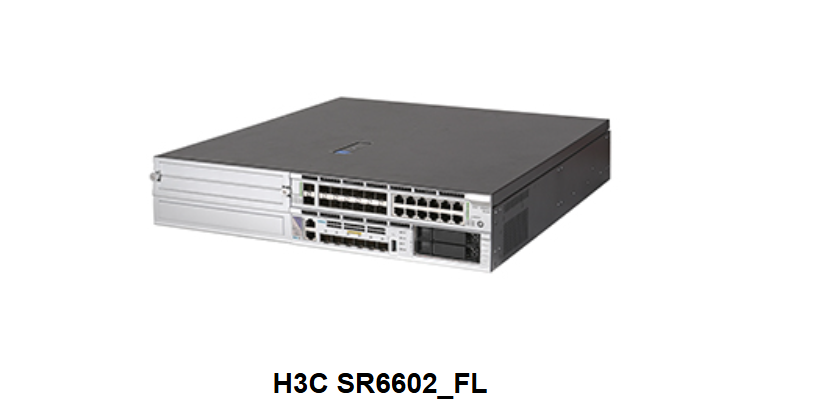

H3C SR6602_FL
