IE-4010-4S24P
Cisco
factory new
1 year
| Quantity: | |
|---|---|
Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces, are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The IE 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, Intelligent Transportation Systems (ITS), and city surveillance programs. The IE 4010 has built-in SW image verification to ensure authenticity of the Cisco Software. The IE 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3200, IE 3300, IE 3400, IE 4000, and IE 5000 Series Switch families.
The IE 4010 Series can also be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways etc. using powerful enterprise-grade intent-based network management platform such as Cisco Catalyst Center.
The IE 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
Table 1 lists the features and benefits of Cisco IE 4010 Series Switches.
Table 1. Features and benefits of Cisco IE 4010 Series Switches
Feature | Benefit |
Robust industrial design | ● A utility grade, fully managed 1 RU rack mount Ethernet access switch with PoE capabilities.● Fanless, convection cooled with no moving parts.● Extended operational temperature range (-40 to 75C).● Hardened for vibration, shock, surge, and electrical noise immunity.● Complies with multi-industry specifications for industrial automation, ITS, and electrical substation environments.● Improves uptime, performance, and safety of industrial systems and equipment.● IEEE 1588v2 Precision Time Protocol (PTP - both power profile for utility and default profile for manufacturing are supported).● Alarm I/O for monitoring and signaling to external equipment. |
User-friendly GUI device manager | ● Allows easily configuration and monitoring via a web browser.● Eliminates the need for terminal emulation programs.● Multiple Language Support - English, Chinese (Traditional), Chinese (Simplified), French, German, Japanese, Spanish (LATAM) |
Swap drive: “zero-config” replacement | ● True zero-configuration replacement for easy middle-of-the-night or middle-of-nowhere failure recovery.● Simple switch replacement in case of a failure.● No networking expertise required.● Helps ensure fast recovery. |
High-density industrial Power over Ethernet (PoE/PoE+) | ● Supports up to 24 total PoE/PoE+ ports with power budget up to 385W available with two power supplies.● Enables ready-to-use PoE devices, such as High Definition (HD) IP cameras, wireless access points, and IP phones. |
Complete Gigabit Ethernet switch | ● Total of 28 Gigabit Ethernet ports provide multiple resilient design options.● Connects new wireless access points● Enables new HD IP cameras and future proof Gigabit speed automation devices.● Allows IP-based Supervisory Control And Data Acquisition (SCADA) connectivity.● Supports very-delay-sensitive applications and time-sensitive networks.● Delivers multiple rings; redundant ring topology for new network configurations.● Extends geographical scalability where longer distance connectivity is required. |
Cisco Industrial Ethernet (IE) 4010 Series Switches offer:
● Bandwidth and capacity to grow with your networking needs: high performance nonblocking switching capacity with 28 Gigabit Ethernet ports per switch
● High-density Power over Ethernet - 24 ports of PoE of 12 ports of PoE+ capable ports to connect IP cameras, IP phones, badge readers, wireless access points, etc.
● Cisco IOS Software features for easy IT integration and management consistency
● Cisco Catalyst Center management and support for software-defined access extension for IoT
● Robust resiliency enabled by dual ring design through 4x Gigabit Ethernet uplink ports, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), PROFINET - Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel and Flexlink support, integrated and redundant power supplies, dying gasp, etc.
● True zero-touch replacement for middle-of-night or middle-of-nowhere failure
● Line-rate, low-latency forwarding with advanced hardware assist features (such as NAT, IEEE1588)
● Simplified software upgrade path with universal images
● Support of Industrial automation protocols EtherNet/IP (CIP) and Profinet
Cisco ONE Software offers a simplified consumption model, centered on common customer scenarios in the industrial automation and extended enterprise environments. Cisco ONE Software and services provide customers with four primary benefits:
● Software suites that address typical customer use scenarios at an attractive price
● Investment protection for their software purchase through software services-enabled license portability
● Access to ongoing innovation and new technology with Cisco Software Support Service (SWSS)
● Flexible licensing models to smoothly distribute customers' software spending over time
Figure 1 shows switch models, Table 2 shows all the available 4010 models, Table 3 lists the power supplies and Table 4 shows the available power budget for PoE/PoE+ for Cisco IE 4010 Series Switches

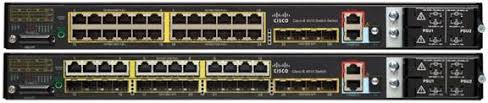

Figure 1.
Cisco IE 4010 series model
Table 2. Cisco IE 4010 Series switch models
Product number | Total ports | SFP Uplinks | SFP fiber ports (S) | Copper PoE/PoE+ Ports2(P) | Default software |
IE-4010-16S12P | 28 | 4 FE/GE | 12 FE/GE | 12 FE/GE | LAN Base1 |
IE-4010-4S24P | 28 | 4 FE/GE | 24 FE/GE | LAN Base1 |
1Can be upgraded to IP Services license with the license product number in Table 152All copper Gigabit Ethernet interfaces support speed negotiation to 10/100/1000 Mbps and duplex negotiation
Table 3. Power supplies for Cisco IE 4010 Series Switches1
Product number | Wattage | Rated nominal input operating range | Supported input voltage operating range | PoE/PoE+ support | Use case scenario |
PWR-RGD-AC-DC-H | 150W | AC 100-240V/2.0A 50-60Hz or DC 100-250V/2.0A | AC 85-264V or DC 88-300V | Yes | High voltage AC or DC power source, for hazardous locations PoE power application |
PWR-RGD-LOW-DC-H | 150W | DC 24-60V/10A | DC 18-75V | Yes | Low voltage DC power source, for hazardous locations PoE power application |
PWR-RGD-AC-DC-250 | 250W | AC 100-240V 3.3A 50-60Hz or DC 100-250V 3.3A | AC 85-264V or DC 88-300V | Yes | High voltage AC or DC power source, for hazardous locations PoE power application |
1All power supplies have their power output galvanically isolated from the power input
Table 4. Available power budget for PoE/PoE+ with different power supply wattage
Product number | 150W | 150W (dual) | 250W | 250W + 150W | 250W (dual) |
IE-4010-16S12P | 80 | 200 | 180 | 285 | 360 |
IE-4010-4S24P | 80 | 200 | 180 | 285 | 385 |
Table 5 lists specifications, Table 6 lists information about switch’s physical specifications, Table 7 lists information about switch performance and scalability, Tables 8 and 9 list important software license features. Tables 10-11 list the Cisco Catalyst Center Essentials and Advantage license features. Table 12 lists compliance specifications, and Table 13 lists information about management and standards and Table 14 lists the supported SFPs on Cisco IE 4010 Series Switches.
Table 5. Product specifications
Description | Specification |
Hardware | ● 1 GB DRAM● 128 MB onboard flash memory● 1-GB removable SD flash memory card (Included)● Mini-USB and traditional RJ-45 console connector |
Alarm | Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
Accessories | ● SD-IE-1GB= - Spare SD card● L-IE4000-RTU= - Electronic RTU IP services software license for 4010 switches● 21–in. and 23–in. ETSI rack mount brackets |
Table 6. Physical specifications
Description | IE-4010-4S24P | IE-4010-16S12P | |
Dimensions, (H x W x D) | ● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H● 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250 | ||
System Weight | Without power supply: 12.1 lb (5.46 kg) | Without power supply: 12.7 lb (5.78 kg) | |
Power Supply Weight | ● PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg)● PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg)● PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) | ||
Power consumption | Maximum of 70W not including PoE consumption | ||
Table 7. Switch performance and scalability
Description | Specification |
Forwarding bandwidth | 28 Gbps (line rate/non-blocking) |
Switching bandwidth | 56 Gbps(Switching bandwidth is full-duplex capacity) |
Forwarding rate | 41.67 mpps with 64 byte packets (line rate for all ports and packet sizes) |
Number of queues | 4 egress |
Unicast MAC addresses | 16,000 |
IGMP multicast groups | 1000 |
Number of VLANs | 1000 |
IPv4 MAC security ACEs | 1000 with default TCAM template |
NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
Table 8. Cisco IE 4010 LAN base license: Key software features
LAN base license (default) | Features |
Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling |
Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Cisco TrustSec®security, FIPS 140-2, ACT2, Secure Boot, Full flexible Netflow1 |
Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
Management | Fast Boot, Express Setup, HTTP Web Config, SmartPort, MIB, SNMP, syslog, Storm Control—Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Energywise, PnP, Customized TCAM/SDM size configuration, DOM (digital optical management), Port-based DHCP |
Industrial Ethernet | CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2 Default Profile |
Quality of Service (QoS) | Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, Modular QoS CLI (MQC), PROFINET QoS |
Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
Layer 3 routing | IPv4 Static Routing |
Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
Utility | IEEE 1588v2 PTP Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP Memory Maps, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag), PTP over Port Channel (TC Mode) |
Redundancy | Redundancy Ethernet Protocol ring (REP), REP Negotiated, REP Segment-ID Auto-Discovery Parallel Redundancy Protocol (PRP), PTP over PRP High Availability Seamless Redundancy (HSR), PTP over HSR Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) |
1Full flexible Netflow is included on all IE-4010 Switches and requires either one of the following licenses per switch:
● Cisco ONE™ Foundation Perpetual license
● Cisco Catalyst Center Essentials license
● Cisco IP Services license
Table 9. Cisco IE 4010 IP Services license: Key software features
IP services license | Additional features |
IP multicast | PIM Sparse Mode (PIM-SM), PIM Dense Mode (PIM-DM), and PIM sparse-dense mode |
Industrial management | Embedded Event Manager (EEM) |
IP unicast routing protocols | OSPF, EIGRP, BGPv4, IS-IS, RIPv2, Policy-Based Routing (PBR), HSRP |
IPv6 routing | RIPng, OSPFv6, and EIGRPv6 support |
Security | IEEE 802.1AE MACsec (including PSK based MKA support), Cisco TrustSec®, SGT inline tagging and SGACL, Full flexible Netflow, SGACL Monitor Mode, SGACL Logging, CA Based MKA MACSec Support, Private VLAN |
Virtualization | VRF-lite |
Table 10. Cisco IE 4010 Catalyst Center Essentials license features
Feature | Description |
Element Management | Discovery, topology, inventory, software image management |
Basic Assurance | Health Dashboards – Network, Client Basic Switch and Wired Client Health Monitoring |
Basic | Cisco Network Plug-and-Play application |
Table 11. Cisco IE 4010 Catalyst Center Advantage license features
Feature | Description |
Cisco Catalyst Center Essentials | All Cisco Catalyst Center Essentials features |
Advanced Automation | Software Defined Access (SDA), IE 4010 can function as an SDA extended node REP ring Workflow |
Assurance and Analytics | Compliance, Custom Reports, Device 360 and Wired Client 360 |
Table 12. Compliance specifications
Type | Standards |
Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A EN 300 386 CNS 13438 Class A |
Electromagnetic immunity | EN55024 CISPR 24 AS/NZS CISPR 24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-11 AC Power Voltage EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips |
Industry standards | EN 61000-6-1 Light Industrial EN 61000-6-2 Industrial EN 61000-6-4 Industrial EN 61326 Industrial Control EN 61131-2 Programmable Controllers IEEE 1613 Electric Power Stations Communications Networking IEC 61850-3 Communication networks for power utility automation EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50121-3-2 Railway - Apparatus for Rolling Stock PROFINET conformance B IP30 NEMA TS-2 (EMC, environmental, mechanical) |
Safety standards and certifications | Information technology equipment: UL/CSA 60950-1 UL/CSA 62368-1 IEC 62368-1 CB with all country deviations EN 60950-1 IEC 60950-1 CB with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): UL 508 UL 61010-2 CSA C22.2, No 142 Hazardous locations: Class 1, Div2, gas groups IIC ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Class I Zone 2) (Cabinet enclosure required) |
Operating environment | Operating Temperature: -40C to +75C ● -40C to +70C (Vented Enclosure - 40 LFM Air Flow)● -40C to +60C (Sealed Enclosure - 0 LFM Air Flow)● -34C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow)● -40C to +85C (IEC 60068-2-2 Environmental Type Testing, 16 hours)● Operating altitude: Up to 13,800ft● EN 60068-2-1, EN 61163 |
Storage environment | Temperature: -40C to +85C Altitude: Up to 15,000 feet IEC 60068-2-14 |
Humidity | Relative humidity of 5% to 95% noncondensing IEC 60068-2-3 IEC 60068-2-30 |
Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Nonoperational Vibration) |
Corrosion | ISO 9223: Corrosion class C3-Medium class C4-High IEC 60068-2-52 (Salt Mist) IEC 60068-2-60 (Flowing Mixed Gas) |
Others | RoHS Compliance China RoHS Compliance TAA (Government) CE (Europe) |
Warranty | Five-year limited hardware warranty on all IE-4010 PIDs and power supplies (see Table 3). See link that follows for more details on warranty. |
Mean Time Between Failures (MTBF) | IE-4010-4S24P: 429,620 hours IE-4010-16S12P: 415,160 hours |
Table 13. Management and standards
Description | Specification | |
IEEE standards | ● IEEE 802.1D MAC Bridges, STP● IEEE 802.1p Layer2 COS prioritization● IEEE 802.1q VLAN● IEEE 802.1s Multiple Spanning-Trees● IEEE 802.1w Rapid Spanning-Tree● IEEE 802.1x Port Access Authentication● IEEE 802.1AB LLDP● IEEE 802.3ad Link Aggregation (LACP)● IEEE 802.3af Power over Ethernet provides up to 15.4W DC power to each end device● IEEE 802.3at Power over Ethernet provides up to 25.5W DC power to each end device | ● IEEE 802.3af Power over Ethernet● IEEE 802.3at Power over Ethernet Plus● IEEE 802.3ah 100BASE-X SMF/MMF only● IEEE 802.3x full duplex on 10BASE-T● IEEE 802.3 10BASE-T specification● IEEE 802.3u 100BASE-TX specification● IEEE 802.3ab 1000BASE-T specification● IEEE 802.3z 1000BASE-X specification● IEEE 1588v2 PTP Precision Time Protocol |
RFC compliance | ● RFC 768: UDP● RFC 783: TFTP● RFC 791: IPv4 protocol● RFC 792: ICMP● RFC 793: TCP● RFC 826: ARP● RFC 854: Telnet● RFC 951: BOOTP● RFC 959: FTP● RFC 1157: SNMPv1● RFC 1901,1902-1907 SNMPv2● RFC 2273-2275: SNMPv3● RFC 2571: SNMP Management● RFC 1166: IP Addresses● RFC 1256: ICMP Router Discovery | ● RFC 1305: NTP● RFC 1492: TACACS+● RFC 1493: Bridge MIB Objects● RFC 1534: DHCP and BOOTP interoperation● RFC 1542: Bootstrap Protocol● RFC 1643: Ethernet Interface MIB● RFC 1757: RMON● RFC 2068: HTTP● RFC 2131, 2132: DHCP● RFC 2236: IGMP v2● RFC 3376: IGMP v3● RFC 2474: DiffServ Precedence● RFC 3046: DHCP Relay Agent Information Option● RFC 3580: 802.1x RADIUS● RFC 4250-4252 SSH Protocol |
SNMP MIB objects | ● BRIDGE-MIB● CALISTA-DPA-MIB● CISCO-ACCESS-ENVMON-MIB● CISCO-ADMISSION-POLICY-MIB● CISCO-AUTH-FRAMEWORK-MIB● CISCO-BRIDGE-EXT-MIB● CISCO-BULK-FILE-MIB● CISCO-CABLE-DIAG-MIB● CISCO-CALLHOME-MIB● CISCO-CAR-MIB● CISCO-CDP-MIB● CISCO-CIRCUIT-INTERFACE-MIB● CISCO-CLUSTER-MIB● CISCO-CONFIG-COPY-MIB● CISCO-CONFIG-MAN-MIB● CISCO-DATA-COLLECTION-MIB● CISCO-DHCP-SNOOPING-MIB● CISCO-EMBEDDED-EVENT-MGR-MIB● CISCO-ENTITY-ALARM-MIB● CISCO-ENTITY-VENDORTYPE-OID-MIB● CISCO-ENTITY-SENSOR-MIB● CISCO-ENVMON-MIB● CISCO-ERR-DISABLE-MIB● CISCO-FLASH-MIB● CISCO-FTP-CLIENT-MIB● CISCO-IGMP-FILTER-MIB● CISCO-IMAGE-MIB● CISCO-IP-STAT-MIB● CISCO-LAG-MIB● CISCO-LICENSE-MGMT-MIB● CISCO-MAC-AUTH-BYPASS-MIB● CISCO-MAC-NOTIFICATION-MIB● CISCO-MEMORY-POOL-MIB● CISCO-PAE-MIB● CISCO-PAGP-MIB● CISCO-PING-MIB● CISCO-PORT-QOS-MIB● CISCO-PORT-SECURITY-MIB● CISCO-PORT-STORM-CONTROL-MIB● CISCO-PRIVATE-VLAN-MIB● CISCO-PROCESS-MIB● CISCO-PRODUCTS-MIB● CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB● CISCO-RTTMON-ICMP-MIB● CISCO-RTTMON-IP-EXT-MIB● CISCO-RTTMON-MIB● CISCO-RTTMON-RTP-MIB | ● CISCO-SNMP-TARGET-EXT-MIB● CISCO-STACK-MIB● CISCO-STACKMAKER-MIB● CISCO-STP-EXTENSIONS-MIB● CISCO-SYSLOG-MIB● CISCO-TCP-MIB● CISCO-UDLDP-MIB● CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB● CISCO-VLAN-MEMBERSHIP-MIB● CISCO-VTP-MIB● ENTITY-MIB● ETHERLIKE-MIB● HC-RMON-MIB● IEEE8021-PAE-MIB● IEEE8023-LAG-MIB● IF-MIB● IP-FORWARD-MIB● LLDP-EXT-MED-MIB● LLDP-EXT-PNO-MIB● LLDP-MIB● NETRANGER● NOTIFICATION-LOG-MIB● OLD-CISCO-CHASSIS-MIB● OLD-CISCO-CPU-MIB● OLD-CISCO-FLASH-MIB● OLD-CISCO-INTERFACES-MIB● OLD-CISCO-IP-MIB● OLD-CISCO-MEMORY-MIB● OLD-CISCO-SYS-MIB<● OLD-CISCO-SYSTEM-MIB● OLD-CISCO-TCP-MIB● OLD-CISCO-TS-MIB● RMON-MIB● RMON2-MIB● SMON-MIB● SNMP-COMMUNITY-MIB● SNMP-FRAMEWORK-MIB● SNMP-MPD-MIB● SNMP-NOTIFICATION-MIB● SNMP-PROXY-MIB● SNMP-TARGET-MIB● SNMP-USM-MIB● SNMP-VIEW-BASED-ACM-MIB● SNMPv2-MIB● TCP-MIB● UDP-MIB |
Table 14. SFP support
Part number | Specification | SFP type | Max distance | Cable type | Temp range* | DOM support |
GLC-FE-100FX-RGD= | 100BASE-FX | FE | 2 km | MMF | IND | Yes |
GLC-FE-100LX-RGD= | 100BASE-LX10 | FE | 10 km | SMF | IND | Yes |
GLC-FE-100FX= | 100BASE-FX | FE | 2 km | MMF | COM | No |
GLC-FE-100LX= | 100BASE-LX10 | FE | 10 km | SMF | COM | No |
GLC-FE-100EX= | 100BASE-EX | FE | 40 km | SMF | COM | No |
GLC-FE-100ZX= | 100BASE-ZX | FE | 80 km | SMF | COM | No |
GLC-FE-100BX-D= | 100BASE-BX10 | FE | 10 km | SMF | COM | No |
GLC-FE-100BX-U= | 100BASE-BX10 | FE | 10 km | SMF | COM | Yes |
GLC-SX-MM-RGD= | 1000BASE-SX | GE | 550 m | MMF | IND | Yes |
GLC-LX-SM-RGD= | 1000BASE-LX/LH | GE | 550 m/10 km | MMF/SMF | IND | Yes |
GLC-ZX-SM-RGD= | 1000BASE-ZX | GE | 70 km | SMF | IND | Yes |
GLC-BX-U-I= | 1000BASE-BX | GE | 10 km | SMF | IND | Yes |
GLC-BX-D-I= | 1000BASE-BX | GE | 10 km | SMF | IND | Yes |
GLC-BX40-U-I= | 1000BASE-BX40 | GE | 40 km | SMF | IND | Yes |
GLC-BX40-D-I= | 1000BASE-BX40 | GE | 40 km | SMF | IND | Yes |
GLC-BX40-DA-I= | 1000BASE-BX40 | GE | 40km | SMF | IND | Yes |
GLC-BX80-U-I= | 1000BASE-BX80 | GE | 80km | SMF | IND | Yes |
GLC-BX80-D-I= | 1000BASE-BX80 | GE | 80km | SMF | IND | Yes |
GLC-SX-MMD= | 1000BASE-SX | GE | 550m | MMF | EXT | Yes |
GLC-LH-SMD= | 1000BASE-LX/LH | GE | 550m/10km | MMF/SMF | EXT | Yes |
GLC-EX-SMD= | 1000BASE-EX | GE | 40 km | SMF | EXT | Yes |
GLC-ZX-SMD= | 1000BASE-ZX | GE | 70 km | SMF | EXT | Yes |
GLC-BX-D= | 1000BASE-BX10 | GE | 10 km | SMF | COM | Yes |
GLC-BX-U= | 1000BASE-BX10 | GE | 10 km | SMF | COM | Yes |
CWDM-SFP-xxxx= (8 freq) | CWDM 1000BASE-X | GE | SMF | COM | Yes | |
DWDM-SFP-xxxx= (40 freq) | DWDM 1000BASE-X | GE | SMF | COM | Yes | |
SFP-GE-S= | 1000BASE-SX | GE | 550 m | MMF | EXT | Yes |
SFP-GE-L= | 1000BASE-LX/LH | GE | 550 m/10 km | MMF/SMF | EXT | Yes |
SFP-GE-Z= | 1000BASE-ZX | GE | 70 km | SMF | EXT | Yes |
GLC-SX-MM= | 1000BASE-SX | GE | 550 m | MMF | COM | No |
GLC-LH-SM= | 1000BASE-LX/LH | GE | 550 m/10 km | MMF/SMF | COM | No |
GLC-ZX-SM= | 1000BASE-ZX | GE | 70 km | SMF | COM | Yes |
GLC-TE= | 1000BASE-T | GE | 100 m | Copper | EXT | NA |
GLC-T= | 1000BASE-T | GE | 100 m | Copper | COM | NA |
GLC-T-RGD= | 1000BASE-T | GE | 100 m | Copper | IND | NA |
Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces, are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The IE 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
The IE 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, Intelligent Transportation Systems (ITS), and city surveillance programs. The IE 4010 has built-in SW image verification to ensure authenticity of the Cisco Software. The IE 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3200, IE 3300, IE 3400, IE 4000, and IE 5000 Series Switch families.
The IE 4010 Series can also be used to easily and securely extend the enterprise network to harsh environments with a software-defined access extension for the Internet of Things (IoT) enabling connectivity in outdoor areas, warehouses, distribution centers, roadways etc. using powerful enterprise-grade intent-based network management platform such as Cisco Catalyst Center.
The IE 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
Table 1 lists the features and benefits of Cisco IE 4010 Series Switches.
Table 1. Features and benefits of Cisco IE 4010 Series Switches
Feature | Benefit |
Robust industrial design | ● A utility grade, fully managed 1 RU rack mount Ethernet access switch with PoE capabilities.● Fanless, convection cooled with no moving parts.● Extended operational temperature range (-40 to 75C).● Hardened for vibration, shock, surge, and electrical noise immunity.● Complies with multi-industry specifications for industrial automation, ITS, and electrical substation environments.● Improves uptime, performance, and safety of industrial systems and equipment.● IEEE 1588v2 Precision Time Protocol (PTP - both power profile for utility and default profile for manufacturing are supported).● Alarm I/O for monitoring and signaling to external equipment. |
User-friendly GUI device manager | ● Allows easily configuration and monitoring via a web browser.● Eliminates the need for terminal emulation programs.● Multiple Language Support - English, Chinese (Traditional), Chinese (Simplified), French, German, Japanese, Spanish (LATAM) |
Swap drive: “zero-config” replacement | ● True zero-configuration replacement for easy middle-of-the-night or middle-of-nowhere failure recovery.● Simple switch replacement in case of a failure.● No networking expertise required.● Helps ensure fast recovery. |
High-density industrial Power over Ethernet (PoE/PoE+) | ● Supports up to 24 total PoE/PoE+ ports with power budget up to 385W available with two power supplies.● Enables ready-to-use PoE devices, such as High Definition (HD) IP cameras, wireless access points, and IP phones. |
Complete Gigabit Ethernet switch | ● Total of 28 Gigabit Ethernet ports provide multiple resilient design options.● Connects new wireless access points● Enables new HD IP cameras and future proof Gigabit speed automation devices.● Allows IP-based Supervisory Control And Data Acquisition (SCADA) connectivity.● Supports very-delay-sensitive applications and time-sensitive networks.● Delivers multiple rings; redundant ring topology for new network configurations.● Extends geographical scalability where longer distance connectivity is required. |
Cisco Industrial Ethernet (IE) 4010 Series Switches offer:
● Bandwidth and capacity to grow with your networking needs: high performance nonblocking switching capacity with 28 Gigabit Ethernet ports per switch
● High-density Power over Ethernet - 24 ports of PoE of 12 ports of PoE+ capable ports to connect IP cameras, IP phones, badge readers, wireless access points, etc.
● Cisco IOS Software features for easy IT integration and management consistency
● Cisco Catalyst Center management and support for software-defined access extension for IoT
● Robust resiliency enabled by dual ring design through 4x Gigabit Ethernet uplink ports, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), PROFINET - Media Redundancy Protocol (MRP) ring, High Availability Seamless Redundancy (HSR) ring, EtherChannel and Flexlink support, integrated and redundant power supplies, dying gasp, etc.
● True zero-touch replacement for middle-of-night or middle-of-nowhere failure
● Line-rate, low-latency forwarding with advanced hardware assist features (such as NAT, IEEE1588)
● Simplified software upgrade path with universal images
● Support of Industrial automation protocols EtherNet/IP (CIP) and Profinet
Cisco ONE Software offers a simplified consumption model, centered on common customer scenarios in the industrial automation and extended enterprise environments. Cisco ONE Software and services provide customers with four primary benefits:
● Software suites that address typical customer use scenarios at an attractive price
● Investment protection for their software purchase through software services-enabled license portability
● Access to ongoing innovation and new technology with Cisco Software Support Service (SWSS)
● Flexible licensing models to smoothly distribute customers' software spending over time
Figure 1 shows switch models, Table 2 shows all the available 4010 models, Table 3 lists the power supplies and Table 4 shows the available power budget for PoE/PoE+ for Cisco IE 4010 Series Switches

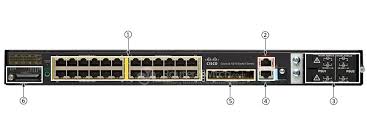

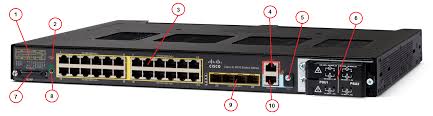

Figure 1.
Cisco IE 4010 series model
Table 2. Cisco IE 4010 Series switch models
Product number | Total ports | SFP Uplinks | SFP fiber ports (S) | Copper PoE/PoE+ Ports2(P) | Default software |
IE-4010-16S12P | 28 | 4 FE/GE | 12 FE/GE | 12 FE/GE | LAN Base1 |
IE-4010-4S24P | 28 | 4 FE/GE | 24 FE/GE | LAN Base1 |
1Can be upgraded to IP Services license with the license product number in Table 152All copper Gigabit Ethernet interfaces support speed negotiation to 10/100/1000 Mbps and duplex negotiation
Table 3. Power supplies for Cisco IE 4010 Series Switches1
Product number | Wattage | Rated nominal input operating range | Supported input voltage operating range | PoE/PoE+ support | Use case scenario |
PWR-RGD-AC-DC-H | 150W | AC 100-240V/2.0A 50-60Hz or DC 100-250V/2.0A | AC 85-264V or DC 88-300V | Yes | High voltage AC or DC power source, for hazardous locations PoE power application |
PWR-RGD-LOW-DC-H | 150W | DC 24-60V/10A | DC 18-75V | Yes | Low voltage DC power source, for hazardous locations PoE power application |
PWR-RGD-AC-DC-250 | 250W | AC 100-240V 3.3A 50-60Hz or DC 100-250V 3.3A | AC 85-264V or DC 88-300V | Yes | High voltage AC or DC power source, for hazardous locations PoE power application |
1All power supplies have their power output galvanically isolated from the power input
Table 4. Available power budget for PoE/PoE+ with different power supply wattage
Product number | 150W | 150W (dual) | 250W | 250W + 150W | 250W (dual) |
IE-4010-16S12P | 80 | 200 | 180 | 285 | 360 |
IE-4010-4S24P | 80 | 200 | 180 | 285 | 385 |
Table 5 lists specifications, Table 6 lists information about switch’s physical specifications, Table 7 lists information about switch performance and scalability, Tables 8 and 9 list important software license features. Tables 10-11 list the Cisco Catalyst Center Essentials and Advantage license features. Table 12 lists compliance specifications, and Table 13 lists information about management and standards and Table 14 lists the supported SFPs on Cisco IE 4010 Series Switches.
Table 5. Product specifications
Description | Specification |
Hardware | ● 1 GB DRAM● 128 MB onboard flash memory● 1-GB removable SD flash memory card (Included)● Mini-USB and traditional RJ-45 console connector |
Alarm | Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
Accessories | ● SD-IE-1GB= - Spare SD card● L-IE4000-RTU= - Electronic RTU IP services software license for 4010 switches● 21–in. and 23–in. ETSI rack mount brackets |
Table 6. Physical specifications
Description | IE-4010-4S24P | IE-4010-16S12P | |
Dimensions, (H x W x D) | ● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H● 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250 | ||
System Weight | Without power supply: 12.1 lb (5.46 kg) | Without power supply: 12.7 lb (5.78 kg) | |
Power Supply Weight | ● PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg)● PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg)● PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) | ||
Power consumption | Maximum of 70W not including PoE consumption | ||
Table 7. Switch performance and scalability
Description | Specification |
Forwarding bandwidth | 28 Gbps (line rate/non-blocking) |
Switching bandwidth | 56 Gbps(Switching bandwidth is full-duplex capacity) |
Forwarding rate | 41.67 mpps with 64 byte packets (line rate for all ports and packet sizes) |
Number of queues | 4 egress |
Unicast MAC addresses | 16,000 |
IGMP multicast groups | 1000 |
Number of VLANs | 1000 |
IPv4 MAC security ACEs | 1000 with default TCAM template |
NAT translation | Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
Table 8. Cisco IE 4010 LAN base license: Key software features
LAN base license (default) | Features |
Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flexlink, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling |
Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Cisco TrustSec®security, FIPS 140-2, ACT2, Secure Boot, Full flexible Netflow1 |
Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
Management | Fast Boot, Express Setup, HTTP Web Config, SmartPort, MIB, SNMP, syslog, Storm Control—Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Energywise, PnP, Customized TCAM/SDM size configuration, DOM (digital optical management), Port-based DHCP |
Industrial Ethernet | CIP Ethernet/IP, Profinet v2, IEEE 1588 PTP v2 Default Profile |
Quality of Service (QoS) | Ingress Policing, Rate-Limit, Egress Queueing/shaping, AutoQoS, Modular QoS CLI (MQC), PROFINET QoS |
Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
Layer 3 routing | IPv4 Static Routing |
Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
Utility | IEEE 1588v2 PTP Power Profile 2011 and 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP Memory Maps, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag), PTP over Port Channel (TC Mode) |
Redundancy | Redundancy Ethernet Protocol ring (REP), REP Negotiated, REP Segment-ID Auto-Discovery Parallel Redundancy Protocol (PRP), PTP over PRP High Availability Seamless Redundancy (HSR), PTP over HSR Media Redundancy Protocol (MRP) ring, MRP Auto Manager (MAM) |
1Full flexible Netflow is included on all IE-4010 Switches and requires either one of the following licenses per switch:
● Cisco ONE™ Foundation Perpetual license
● Cisco Catalyst Center Essentials license
● Cisco IP Services license
Table 9. Cisco IE 4010 IP Services license: Key software features
IP services license | Additional features |
IP multicast | PIM Sparse Mode (PIM-SM), PIM Dense Mode (PIM-DM), and PIM sparse-dense mode |
Industrial management | Embedded Event Manager (EEM) |
IP unicast routing protocols | OSPF, EIGRP, BGPv4, IS-IS, RIPv2, Policy-Based Routing (PBR), HSRP |
IPv6 routing | RIPng, OSPFv6, and EIGRPv6 support |
Security | IEEE 802.1AE MACsec (including PSK based MKA support), Cisco TrustSec®, SGT inline tagging and SGACL, Full flexible Netflow, SGACL Monitor Mode, SGACL Logging, CA Based MKA MACSec Support, Private VLAN |
Virtualization | VRF-lite |
Table 10. Cisco IE 4010 Catalyst Center Essentials license features
Feature | Description |
Element Management | Discovery, topology, inventory, software image management |
Basic Assurance | Health Dashboards – Network, Client Basic Switch and Wired Client Health Monitoring |
Basic | Cisco Network Plug-and-Play application |
Table 11. Cisco IE 4010 Catalyst Center Advantage license features
Feature | Description |
Cisco Catalyst Center Essentials | All Cisco Catalyst Center Essentials features |
Advanced Automation | Software Defined Access (SDA), IE 4010 can function as an SDA extended node REP ring Workflow |
Assurance and Analytics | Compliance, Custom Reports, Device 360 and Wired Client 360 |
Table 12. Compliance specifications
Type | Standards |
Electromagnetic emissions | FCC 47 CFR Part 15 Class A EN 55032 Class A VCCI Class A AS/NZS CISPR 22 Class A CISPR 11 Class A CISPR 32 Class A ICES 003 Class A EN 300 386 CNS 13438 Class A |
Electromagnetic immunity | EN55024 CISPR 24 AS/NZS CISPR 24 EN 61000-4-2 Electro Static Discharge EN 61000-4-3 Radiated RF EN 61000-4-4 Electromagnetic Fast Transients EN 61000-4-5 Surge EN 61000-4-6 Conducted RF EN 61000-4-8 Power Frequency Magnetic Field EN 61000-4-9 Pulse Magnetic Field EN 61000-4-11 AC Power Voltage EN 61000-4-18 Damped Oscillatory Wave EN-61000-4-29 DC Voltage Dips |
Industry standards | EN 61000-6-1 Light Industrial EN 61000-6-2 Industrial EN 61000-6-4 Industrial EN 61326 Industrial Control EN 61131-2 Programmable Controllers IEEE 1613 Electric Power Stations Communications Networking IEC 61850-3 Communication networks for power utility automation EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50121-3-2 Railway - Apparatus for Rolling Stock PROFINET conformance B IP30 NEMA TS-2 (EMC, environmental, mechanical) |
Safety standards and certifications | Information technology equipment: UL/CSA 60950-1 UL/CSA 62368-1 IEC 62368-1 CB with all country deviations EN 60950-1 IEC 60950-1 CB with all country deviations NOM to NOM-019-SCFI (through partners and distributor) Industrial floor (control equipment): UL 508 UL 61010-2 CSA C22.2, No 142 Hazardous locations: Class 1, Div2, gas groups IIC ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 60079-0, -15 IECEx test report EN 60079-0, -15 ATEX certification (Class I Zone 2) (Cabinet enclosure required) |
Operating environment | Operating Temperature: -40C to +75C ● -40C to +70C (Vented Enclosure - 40 LFM Air Flow)● -40C to +60C (Sealed Enclosure - 0 LFM Air Flow)● -34C to +75C (Fan or Blower equipped Enclosure - 200 LFM Air Flow)● -40C to +85C (IEC 60068-2-2 Environmental Type Testing, 16 hours)● Operating altitude: Up to 13,800ft● EN 60068-2-1, EN 61163 |
Storage environment | Temperature: -40C to +85C Altitude: Up to 15,000 feet IEC 60068-2-14 |
Humidity | Relative humidity of 5% to 95% noncondensing IEC 60068-2-3 IEC 60068-2-30 |
Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine) IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration) IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Nonoperational Vibration) |
Corrosion | ISO 9223: Corrosion class C3-Medium class C4-High IEC 60068-2-52 (Salt Mist) IEC 60068-2-60 (Flowing Mixed Gas) |
Others | RoHS Compliance China RoHS Compliance TAA (Government) CE (Europe) |
Warranty | Five-year limited hardware warranty on all IE-4010 PIDs and power supplies (see Table 3). See link that follows for more details on warranty. |
Mean Time Between Failures (MTBF) | IE-4010-4S24P: 429,620 hours IE-4010-16S12P: 415,160 hours |
Table 13. Management and standards
Description | Specification | |
IEEE standards | ● IEEE 802.1D MAC Bridges, STP● IEEE 802.1p Layer2 COS prioritization● IEEE 802.1q VLAN● IEEE 802.1s Multiple Spanning-Trees● IEEE 802.1w Rapid Spanning-Tree● IEEE 802.1x Port Access Authentication● IEEE 802.1AB LLDP● IEEE 802.3ad Link Aggregation (LACP)● IEEE 802.3af Power over Ethernet provides up to 15.4W DC power to each end device● IEEE 802.3at Power over Ethernet provides up to 25.5W DC power to each end device | ● IEEE 802.3af Power over Ethernet● IEEE 802.3at Power over Ethernet Plus● IEEE 802.3ah 100BASE-X SMF/MMF only● IEEE 802.3x full duplex on 10BASE-T● IEEE 802.3 10BASE-T specification● IEEE 802.3u 100BASE-TX specification● IEEE 802.3ab 1000BASE-T specification● IEEE 802.3z 1000BASE-X specification● IEEE 1588v2 PTP Precision Time Protocol |
RFC compliance | ● RFC 768: UDP● RFC 783: TFTP● RFC 791: IPv4 protocol● RFC 792: ICMP● RFC 793: TCP● RFC 826: ARP● RFC 854: Telnet● RFC 951: BOOTP● RFC 959: FTP● RFC 1157: SNMPv1● RFC 1901,1902-1907 SNMPv2● RFC 2273-2275: SNMPv3● RFC 2571: SNMP Management● RFC 1166: IP Addresses● RFC 1256: ICMP Router Discovery | ● RFC 1305: NTP● RFC 1492: TACACS+● RFC 1493: Bridge MIB Objects● RFC 1534: DHCP and BOOTP interoperation● RFC 1542: Bootstrap Protocol● RFC 1643: Ethernet Interface MIB● RFC 1757: RMON● RFC 2068: HTTP● RFC 2131, 2132: DHCP● RFC 2236: IGMP v2● RFC 3376: IGMP v3● RFC 2474: DiffServ Precedence● RFC 3046: DHCP Relay Agent Information Option● RFC 3580: 802.1x RADIUS● RFC 4250-4252 SSH Protocol |
SNMP MIB objects | ● BRIDGE-MIB● CALISTA-DPA-MIB● CISCO-ACCESS-ENVMON-MIB● CISCO-ADMISSION-POLICY-MIB● CISCO-AUTH-FRAMEWORK-MIB● CISCO-BRIDGE-EXT-MIB● CISCO-BULK-FILE-MIB● CISCO-CABLE-DIAG-MIB● CISCO-CALLHOME-MIB● CISCO-CAR-MIB● CISCO-CDP-MIB● CISCO-CIRCUIT-INTERFACE-MIB● CISCO-CLUSTER-MIB● CISCO-CONFIG-COPY-MIB● CISCO-CONFIG-MAN-MIB● CISCO-DATA-COLLECTION-MIB● CISCO-DHCP-SNOOPING-MIB● CISCO-EMBEDDED-EVENT-MGR-MIB● CISCO-ENTITY-ALARM-MIB● CISCO-ENTITY-VENDORTYPE-OID-MIB● CISCO-ENTITY-SENSOR-MIB● CISCO-ENVMON-MIB● CISCO-ERR-DISABLE-MIB● CISCO-FLASH-MIB● CISCO-FTP-CLIENT-MIB● CISCO-IGMP-FILTER-MIB● CISCO-IMAGE-MIB● CISCO-IP-STAT-MIB● CISCO-LAG-MIB● CISCO-LICENSE-MGMT-MIB● CISCO-MAC-AUTH-BYPASS-MIB● CISCO-MAC-NOTIFICATION-MIB● CISCO-MEMORY-POOL-MIB● CISCO-PAE-MIB● CISCO-PAGP-MIB● CISCO-PING-MIB● CISCO-PORT-QOS-MIB● CISCO-PORT-SECURITY-MIB● CISCO-PORT-STORM-CONTROL-MIB● CISCO-PRIVATE-VLAN-MIB● CISCO-PROCESS-MIB● CISCO-PRODUCTS-MIB● CISCO-RESILIENT-ETHERNET-PROTOCOL-MIB● CISCO-RTTMON-ICMP-MIB● CISCO-RTTMON-IP-EXT-MIB● CISCO-RTTMON-MIB● CISCO-RTTMON-RTP-MIB | ● CISCO-SNMP-TARGET-EXT-MIB● CISCO-STACK-MIB● CISCO-STACKMAKER-MIB● CISCO-STP-EXTENSIONS-MIB● CISCO-SYSLOG-MIB● CISCO-TCP-MIB● CISCO-UDLDP-MIB● CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB● CISCO-VLAN-MEMBERSHIP-MIB● CISCO-VTP-MIB● ENTITY-MIB● ETHERLIKE-MIB● HC-RMON-MIB● IEEE8021-PAE-MIB● IEEE8023-LAG-MIB● IF-MIB● IP-FORWARD-MIB● LLDP-EXT-MED-MIB● LLDP-EXT-PNO-MIB● LLDP-MIB● NETRANGER● NOTIFICATION-LOG-MIB● OLD-CISCO-CHASSIS-MIB● OLD-CISCO-CPU-MIB● OLD-CISCO-FLASH-MIB● OLD-CISCO-INTERFACES-MIB● OLD-CISCO-IP-MIB● OLD-CISCO-MEMORY-MIB● OLD-CISCO-SYS-MIB<● OLD-CISCO-SYSTEM-MIB● OLD-CISCO-TCP-MIB● OLD-CISCO-TS-MIB● RMON-MIB● RMON2-MIB● SMON-MIB● SNMP-COMMUNITY-MIB● SNMP-FRAMEWORK-MIB● SNMP-MPD-MIB● SNMP-NOTIFICATION-MIB● SNMP-PROXY-MIB● SNMP-TARGET-MIB● SNMP-USM-MIB● SNMP-VIEW-BASED-ACM-MIB● SNMPv2-MIB● TCP-MIB● UDP-MIB |
Table 14. SFP support
Part number | Specification | SFP type | Max distance | Cable type | Temp range* | DOM support |
GLC-FE-100FX-RGD= | 100BASE-FX | FE | 2 km | MMF | IND | Yes |
GLC-FE-100LX-RGD= | 100BASE-LX10 | FE | 10 km | SMF | IND | Yes |
GLC-FE-100FX= | 100BASE-FX | FE | 2 km | MMF | COM | No |
GLC-FE-100LX= | 100BASE-LX10 | FE | 10 km | SMF | COM | No |
GLC-FE-100EX= | 100BASE-EX | FE | 40 km | SMF | COM | No |
GLC-FE-100ZX= | 100BASE-ZX | FE | 80 km | SMF | COM | No |
GLC-FE-100BX-D= | 100BASE-BX10 | FE | 10 km | SMF | COM | No |
GLC-FE-100BX-U= | 100BASE-BX10 | FE | 10 km | SMF | COM | Yes |
GLC-SX-MM-RGD= | 1000BASE-SX | GE | 550 m | MMF | IND | Yes |
GLC-LX-SM-RGD= | 1000BASE-LX/LH | GE | 550 m/10 km | MMF/SMF | IND | Yes |
GLC-ZX-SM-RGD= | 1000BASE-ZX | GE | 70 km | SMF | IND | Yes |
GLC-BX-U-I= | 1000BASE-BX | GE | 10 km | SMF | IND | Yes |
GLC-BX-D-I= | 1000BASE-BX | GE | 10 km | SMF | IND | Yes |
GLC-BX40-U-I= | 1000BASE-BX40 | GE | 40 km | SMF | IND | Yes |
GLC-BX40-D-I= | 1000BASE-BX40 | GE | 40 km | SMF | IND | Yes |
GLC-BX40-DA-I= | 1000BASE-BX40 | GE | 40km | SMF | IND | Yes |
GLC-BX80-U-I= | 1000BASE-BX80 | GE | 80km | SMF | IND | Yes |
GLC-BX80-D-I= | 1000BASE-BX80 | GE | 80km | SMF | IND | Yes |
GLC-SX-MMD= | 1000BASE-SX | GE | 550m | MMF | EXT | Yes |
GLC-LH-SMD= | 1000BASE-LX/LH | GE | 550m/10km | MMF/SMF | EXT | Yes |
GLC-EX-SMD= | 1000BASE-EX | GE | 40 km | SMF | EXT | Yes |
GLC-ZX-SMD= | 1000BASE-ZX | GE | 70 km | SMF | EXT | Yes |
GLC-BX-D= | 1000BASE-BX10 | GE | 10 km | SMF | COM | Yes |
GLC-BX-U= | 1000BASE-BX10 | GE | 10 km | SMF | COM | Yes |
CWDM-SFP-xxxx= (8 freq) | CWDM 1000BASE-X | GE | SMF | COM | Yes | |
DWDM-SFP-xxxx= (40 freq) | DWDM 1000BASE-X | GE | SMF | COM | Yes | |
SFP-GE-S= | 1000BASE-SX | GE | 550 m | MMF | EXT | Yes |
SFP-GE-L= | 1000BASE-LX/LH | GE | 550 m/10 km | MMF/SMF | EXT | Yes |
SFP-GE-Z= | 1000BASE-ZX | GE | 70 km | SMF | EXT | Yes |
GLC-SX-MM= | 1000BASE-SX | GE | 550 m | MMF | COM | No |
GLC-LH-SM= | 1000BASE-LX/LH | GE | 550 m/10 km | MMF/SMF | COM | No |
GLC-ZX-SM= | 1000BASE-ZX | GE | 70 km | SMF | COM | Yes |
GLC-TE= | 1000BASE-T | GE | 100 m | Copper | EXT | NA |
GLC-T= | 1000BASE-T | GE | 100 m | Copper | COM | NA |
GLC-T-RGD= | 1000BASE-T | GE | 100 m | Copper | IND | NA |
