TA410
Yeastar
Original New
1 year
| Quantity: | |
|---|---|

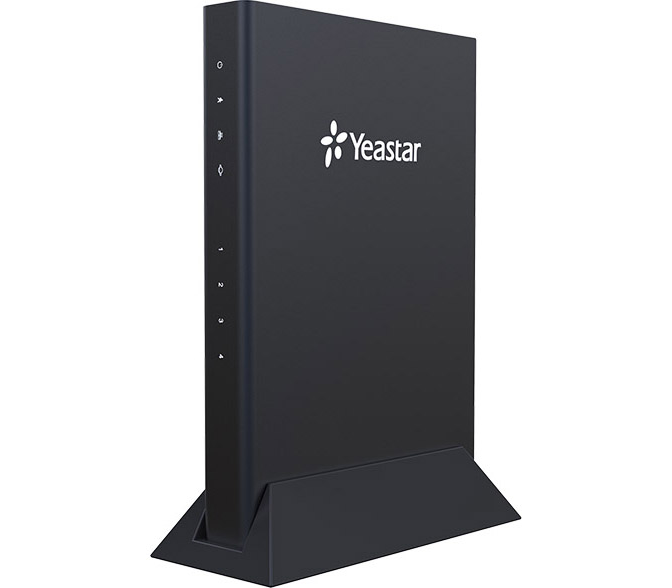

Yeastar TA410
Benefits
Connect analog telephone lines or PABX extension interface to VoIP networks.
Businesses of all sizes can rely on this innovative solution.
Toll-quality voice call and top performance and reliability.
Yeastar TA410
| Models | TA410 | TA810 | TA1610 |
| RJ11 FXO Ports | 4 | 8 | 16 |
| RJ 21 Ports | 一 | 一 | 1 |
| LAN | 1 10/100Mbps | ||
| WAN | 一 | 1 10/100Mbps | |
| Protocol | SIP (RFC3261), IAX2 | ||
| Transport | UDP, TCP, TLS, SRTP | ||
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM | ||
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC | ||
| DTMF Mode | RFC2833, SIP Info, In-band | ||
| Fax | T.30 | ||
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | ||
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN | ||
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | ||
| Management Protocol | RADIUS | – | |
| Remote Management | N/A | Yes | |
| Signaling | FXS Loop Start, FXS Kewl Start | ||
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | ||
| Disconnect Methods | Busy Tone, Polarity Reversal | ||
| FXO Connectivity | Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection | ||
| Power | 12V, 1A | AC 100-240V (12V 5A) | |
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 | 440 × 250 × 44 | |
| Operation Range | 0°C to 40°C, 32°F to 104°F; | ||
| Storage Range | -20°C to 65°C, -4°F to 149°F | ||
| Humidity | 10-90% non-condensing | ||
| Mounting | Desktop, Wall-mount | Desktop, Rack-mount | |
| Compatibility | Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix. | ||
Answer Detection
Attack Alert
Auto Provisioning with Yeastar IP-PBX
Backup and Restore
Call Back
Call Detail Records
Caller ID Display
Firewall
Firmware Upgrade by HTTP/TFTP
Hangup Detection
IP Blocklist
Nat Traversal
Packet Capture Tool
Programmable AC Impedance
System Logs
Web-based Management
TA1610 Supports Remote Management
