TA2400
Yeastar
Original New
1 year
| Quantity: | |
|---|---|

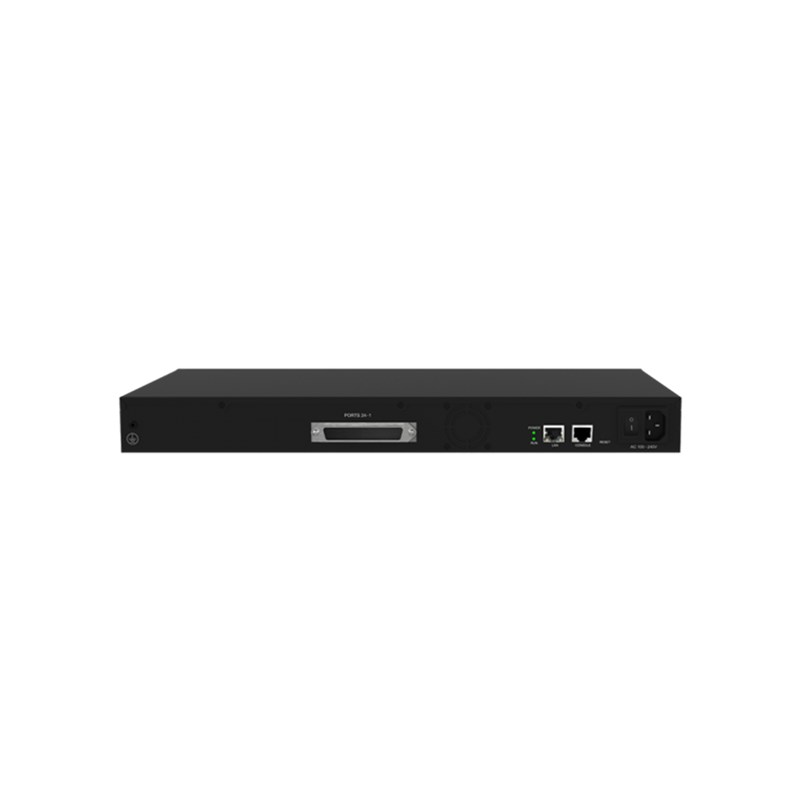

Yeastar TA2400
Benefits
Stand-alone FXS VoIP gateway with carrier-grade features and reliability.
Fully compliant with SIP and IAX2, also features flexible calling rules.
Yeastar TA2400
| Models | TA400 | TA800 | TA1600 | TA2400 | TA3200 |
| RJ11 FXS Ports | 4 | 8 | 16 | 24 | 32 |
| RJ 21 Ports | 一 | 一 | 1 | 1 | 2 |
| LAN | 1 10/100Mbps | ||||
| WAN | 一 | 1 10/100Mbps | |||
| Protocol | SIP (RFC3261), IAX2 | ||||
| Transport | UDP, TCP, TLS, SRTP | ||||
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM | ||||
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, PLC | ||||
| DTMF Mode | RFC2833, SIP Info, In-band | ||||
| Fax | T.38 and Pass-through | ||||
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | ||||
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN | ||||
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | ||||
| Management Protocol | SNMP, RADIUS, TR-069 | ||||
| Remote Management | N/A | Yes | |||
| Signaling | FXS Loop Start, FXS Kewl Start | ||||
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | ||||
| Disconnect Methods | Busy Tone, Polarity Reversal | ||||
| Power | 12V, 1A | AC 100-240V (12V 5A) | |||
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 | 440 × 250 × 44 | |||
| Operation Range | 0°C to 40°C, 32°F to 104°F; | ||||
| Storage Range | -20°C to 65°C, -4°F to 149°F | ||||
| Humidity | 10-90% non-condensing | ||||
| Mounting | Desktop, Wall-mount | Desktop, Rack-mount | |||
| Compatibility | Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft | ||||
3-way Conference
Attack Alert
Auto Provisioning with Yeastar IP-PBX
Blind Transfer
Caller ID Display
Call Waiting
Firewall
Hotline
IP Blocklist
Nat Traversal
Radius Accounting & Login
Speed Dial
TR-069
Web-based Management
API
Attended Transfer
Backup and Restore
Call Detail Records
Call Forward (Always, Busy, No Answer)
Do Not Disturb
Firmware Upgrade by HTTP/TFTP
Hunting Groups
MWI (FSK, Neon, Polarity Reversal)
Packet Capture Tool
SNMP
System Logs
Voice Menu for Basic Configuration
Remote Management
