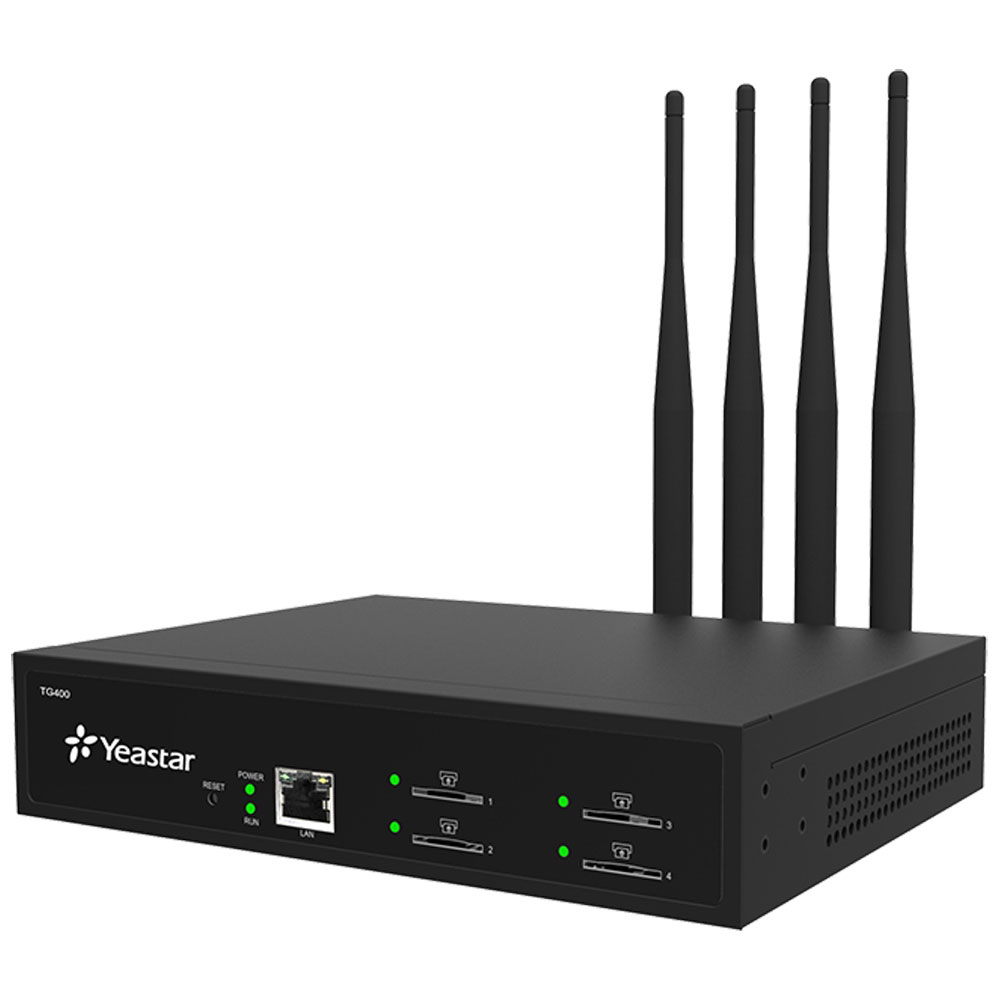

New original Yeastar TG Series VoIP GSM Gateway TG400

TG Series VoIP GSM Gateway- Connect GSM or WCDMA or 4G LTE to VoIP networks to provide two-way communication
  • TG400
  • Yeastar
  • Original New
  • 1 year
Quantity:

Yeastar TG400

 1617852198(1)

Yeastar-NeoGate-TG400-GSM-Gateway-3


Benefits

GSM Voice Calls

VoLTE for HD Calls

Mobile Connectivity for SMB

Top Quality and Reliability

Maximum Cost Reduction


Yeastar TG400

Models TG100 TG200 TG400 TG800 TG1600
Number of Ports 1 2 4 8 16
GSM Frequency 850/900/1800/1900 MHz
WCDMA Frequency 850/1900 MHz, 850/2100 MHz, 900/2100 MHz
4G Data
4G LTE Band Don’t support 4G LTE Depending on the module type.  Don’t support 4G LTE
Protocol SIP, IAX2
Antenna Splitter (4 in 1) Support
Transport UDP, TCP, TLS, SRTP
Voice Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
DTMF Mode RFC2833, SIP Info, In-band
Echo Cancellation ITU-T G.168 LEC
Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP)
Network Protocol FTP, TFTP, HTTP, SSH
LAN 1 10/100 Mbps Ethernet Interface 2 10/100 Mbps Ethernet Interfaces
NAT Traversal Static NAT, STUN
Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN
Operation Range 0°C to 40°C, 32°F to 104°F
Power Supply DC 12V, 1A AC 100-240V
Storage Range -20°C to 65°C, -4°F to 149°F
Dimensions (L × W × H) (mm) 110 x 70 x 24 213 x 160 x 44 340 x 210 x 44 440 x 250 x 44
Humidity 10-90% non-condensing

Key Features

  • 1 Stage/2 Stage Dial

  • Call Back

  • Call Duration Limitation

  • Call Status Display

  • Carrier Selection: Auto/Manual

  • Firmware upgrade by HTTP/TFTP

  • GSM/CDMA/UMTS Ports Group Manage

  • Incoming /Outgoing Routing rules

  • Network Attack Alert

  • Open API for SMS and USSD

  • PIN Modify

  • Send Bulk SMS

  • SIP Peer Mode: Support

  • SIP server for IP phones: Support

  • SMS Center

  • System Logs

  • VoIP Trunk Group

  • Block List

  • Balance Alarm

  • Call Detail Record (CDR)

  • Call Progress Tone Generation

  • Call Transfer

  • Caller ID/CLIR

  • Configure backup/restore

  • Gain Adjustment

  • Hotline

  • IP Blocklist

  • NTP

  • Packet Capture

  • Real Open API Protocol (Based on Asterisk)

  • Session Timer

  • SIP Response Code Switch

  • SIP Trunk: Support

  • SMS Sending and Receiving

  • USSD

  • Web based configuration

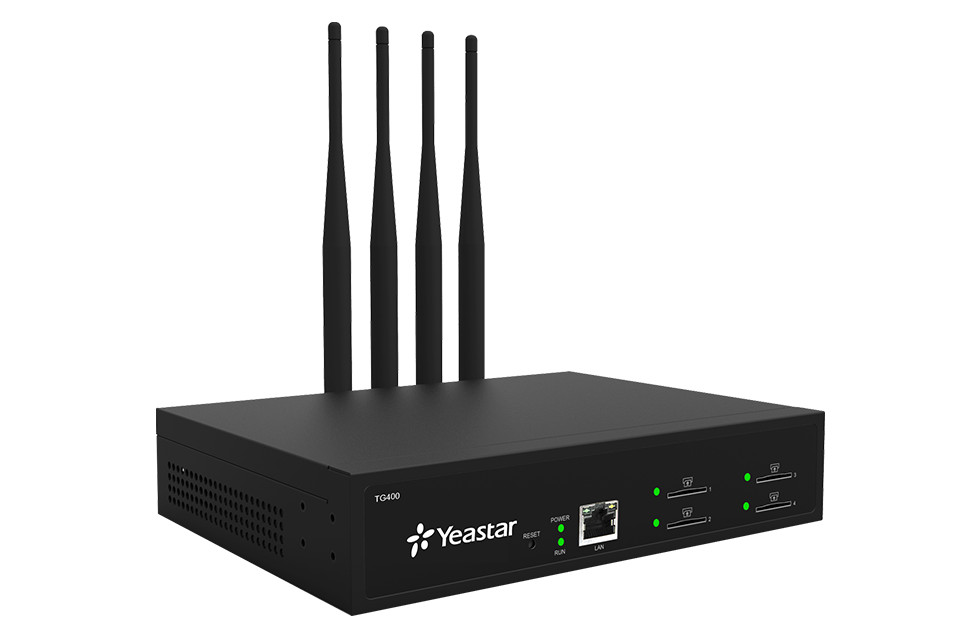

1617851517(1)
