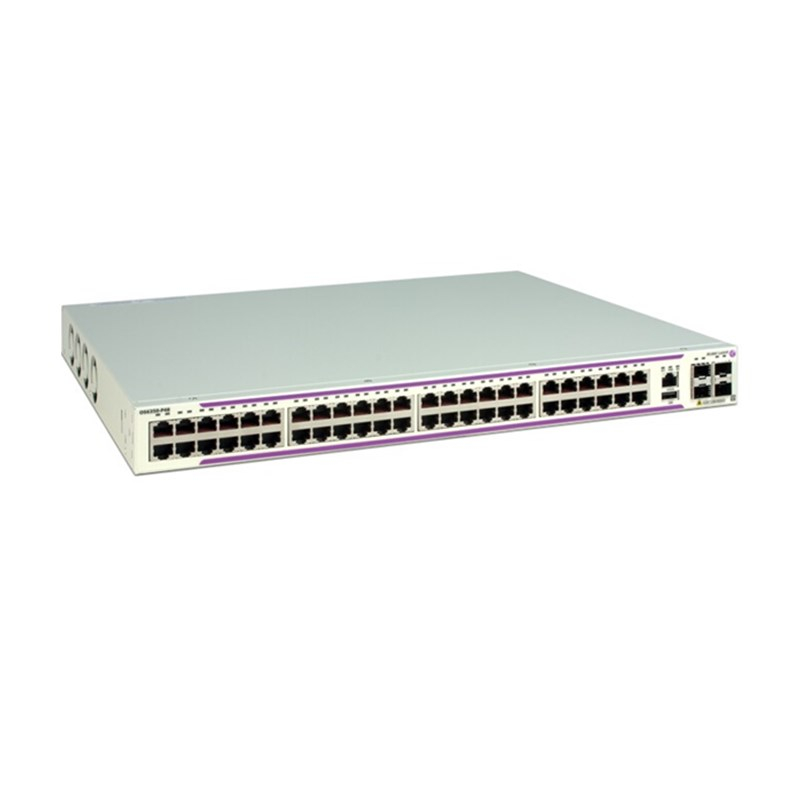

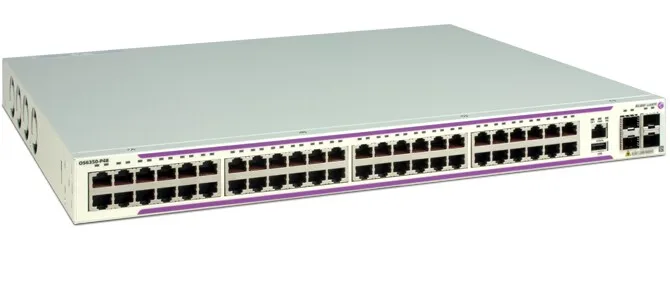

OS6350-P48 Alcatel-Lucent OmniSwitch 6350 Gigabit Ethernet LAN switch family

Gigabit Ethernet stackable chassis in a 1RU form factor with 48 10/100/1000 PoE Base-T ports, 2 Gigabit SFP ports and 2 SFP uplink/stacking ports
  • OS6350-P48
  • Alcatel-Lucent
  • Original New
  • 1 year
Quantity:
OS6350-P48
Alcatel-Lucent OmniSwitch 6350 Gigabit Ethernet LAN switch family
The Alcatel-Lucent OmniSwitch® 6350 Stackable family is a series of fixed-configuration Gigabit Ethernet switches available as 10-, 24- and 48-port, Power-over-Ethernet (PoE) and non-PoE models to create the exact network for your small business. The network capabilities of the OmniSwitch 6350 family include advanced security, quality of service and high availability features for your business-class data, voice and wireless technologies. These switches are simple to deploy, configure and manage.
Features
*  10-port PoE and non-PoE models with two RJ-45/SFP combo port uplinks
*  24-port and 48-port, PoE and non-PoE models, with four fixed small form-factor pluggable (SFP) Gigabit uplink interfaces
*  5 G/s stacking available on 24/48 port models up to 4 units using fixed SFP ports
*  Provides up to 48 ports of PoE connectivity for simplified IP phones, wireless and IP surveillance
deployments over a single Ethernet cable. All 6350 models are IEEE 802.3af as well as IEEE 802.3at PoE compliant
*  Provides native IPv4 and IPv6 support for routing, Access Control Lists (ACLs) and Dynamic Host
Configuration Protocol (DHCP) relay
*  Advanced IPv6 threat protection (DHCP snooping, router advertisement protection and source address filter protection) providing protection against a wide range of address spoofing attacks
*  Simplified Voice over IP (VoIP) deployments using the advanced Auto- Quality of Service (Auto-QoS)
feature that configures the IP telephony devices into the proper virtual LAN (VLAN) with the correct QoS parameters to prioritize voice traffic
OS6350-P48

Gigabit Ethernet stackable chassis in a 1RU form factor with 48 10/100/1000 PoE Base-T ports, 2 Gigabit SFP ports and 2 SFP uplink/stacking ports

Product Specification

OS6350-P48
Port
RJ-45 10/100/1000 ports
48
Switch capacity with 4xGb/suplinks
104 Gb/s
Switch frame rate with 4xGb/s uplinks
77.38 Mp/s
Gigabit SFP ports
4
Gigabit/5Gb/s Stacking Ports
2/2
PoE ports
48
Dimensions
Width
44.0 cm (17.32 in)
Height
4.4 cm (1.73 in)
Depth
38.6 cm (15.2 in)
Weight
6.8 kg (15.0 lb)
Operating conditions
Operating temperature
0°C to +45°C
32°F to +113°F
Storage temperature
-40°C to +75°C
-40°F to +167°F
Humidity (operating and storage)
5% — 95%
Fan (variable speed)
4 fans
Acoustic (dB) at 27°C
< 40dB (A)
Mean Time Between Failures (MTBF) at 25°C (hours)
448,312
System power consumption (W)
58 W
