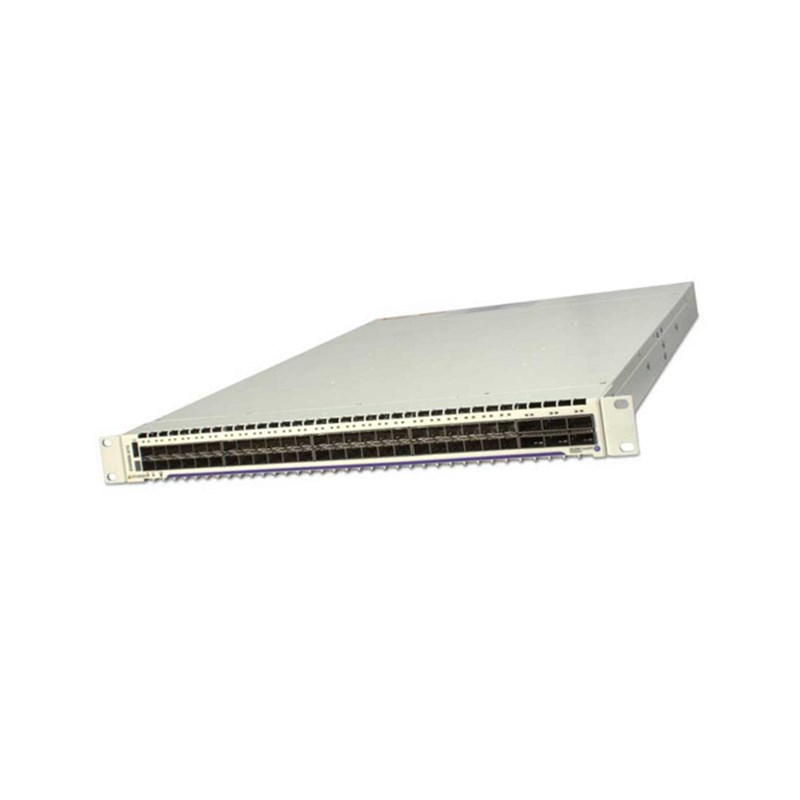

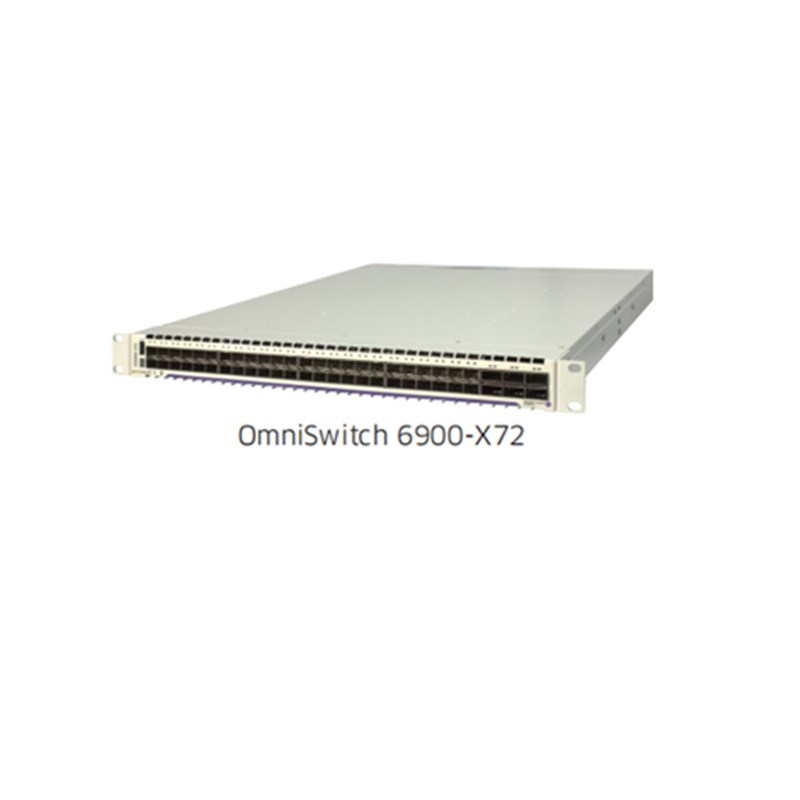

OS6900-X72D-F
Alcatel-Lucent
Original New
1 year
| Quantity: | |
|---|---|
| Feature | Model |
| OS6900-X72D-F | |
| Port count | 72 (48 SFP+ and 6 QSFP) |
| Expansion slots | N/A |
| Out-of-band Ethernet port | 1 |
| USB port | 1 |
| Console port | 1 |
| Primary slide in PSU slot | 1 |
| Backup slide-in PSU slot | 1 |
| Redundant fans | 3+1 |
| Flash | 4 GB |
| RAM | 8 GB |
| Data buffer | 12 MB |
| Max switching capacity | 1.44 Tb/s Non-blocking |
| Throughput | 1000 Mpps |
| Latency | <650ns |
| Power consumption | 242 W |
| Heat dissipation | 825 Btu/h |
| Mean time between failures (MTBF) with AC power supply | 192,778 h |
| MTBF with DC power supply | 206,968 h |
| Width | 43.3 cm (17.06 in) |
| Depth | 55.9 cm (22.00 in.) |
| Height | 4.4 cm (1.73 in.) |
| Weight (chassis & fan) | 7.78 kg (17.15 lb) |
| Weight (fully populated) | 10.86 kg (23.95 lb) |
| Operating temperature Front-to-rear airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
| Operating temperature Rear-to-front airflow | 0°C to 45°C (32°F to 113°F) 55°C shutdown |
| Storage temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity (operating) | 5% to 95% non-condensing |
| Humidity (storage) | 5% to 95% non-condensing |
