Original New Yeastar TA Series TA100 FXS VoIP Gateway

  • TA100

  • Yeastar

  • Original New

  • 1 Year

Availability:
Quantity:
Product Description

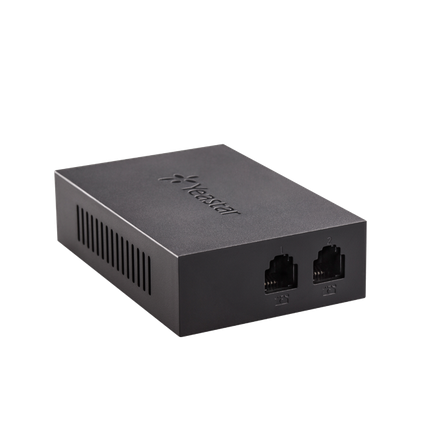

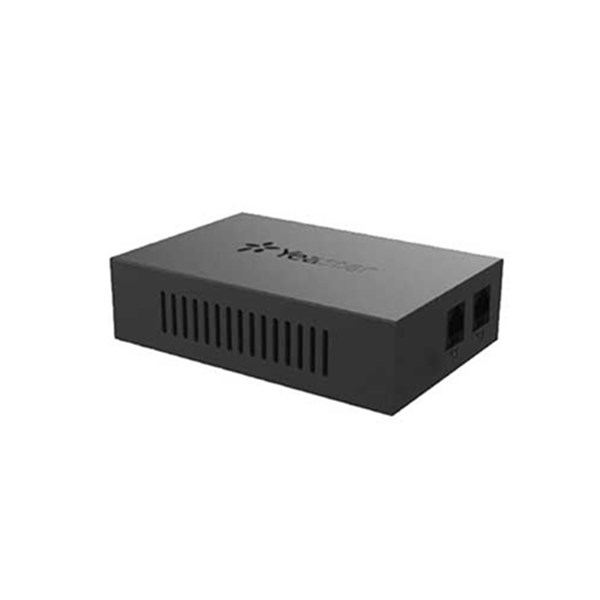

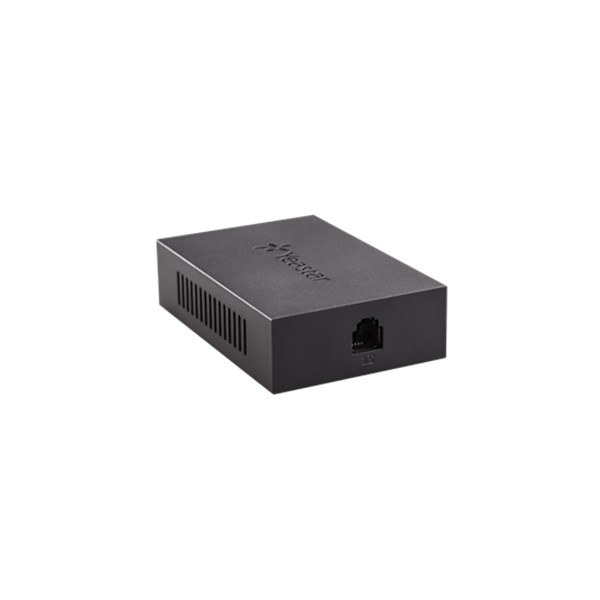

Yeastar TA Series FXS VoIP Gateway TA100
Yeastar TA FXS VoIP Gateways are cutting-edge products that connect legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. Featuring rich functionalities and easy configuration, TA is ideal for small and medium enterprises that wish to integrate a traditional phone system into any IP-based system, including the Yeastar S-Series.
TA100 is an Analog Telephone Adapter that provides 1 analog interface for residential users and small business to convert existing analog equipment to IP-based networks cost effectively.
Specification
Ports
1 FXS Port
Telephony Interfaces
RJ11
LAN
1 10/100Mbps
Micro USB Port
1
Protocol
SIP (RFC3261)
Transport
UDP, TCP, TLS, SRTP
Codec
G.711 (alaw/ulaw), G.729A/B
DTMF Mode
RFC2833, SIP Info, In-band
Voice Capability
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
Fax
T.30 Pass-through
QoS
DiffServ, ToS, 802.1 P/Q VLAN tagging
Network
DHCP, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol
FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol
TR-069*
Signaling
FXS Loop Start, FXS Kewl Start
Caller ID
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods
Busy Tone, Polarity Reversal
Power
DC 5V 1A
Dimensions (L × W × H) (mm)
85 x 58 x 24
Humidity
10-90% non-condensing
Storage Range
-20°C to 65°C, -4°F to 149°F
Operation Range
0°C to 40°C, 32°F to 104°F
Mounting
Desktop
Compatibility
Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
