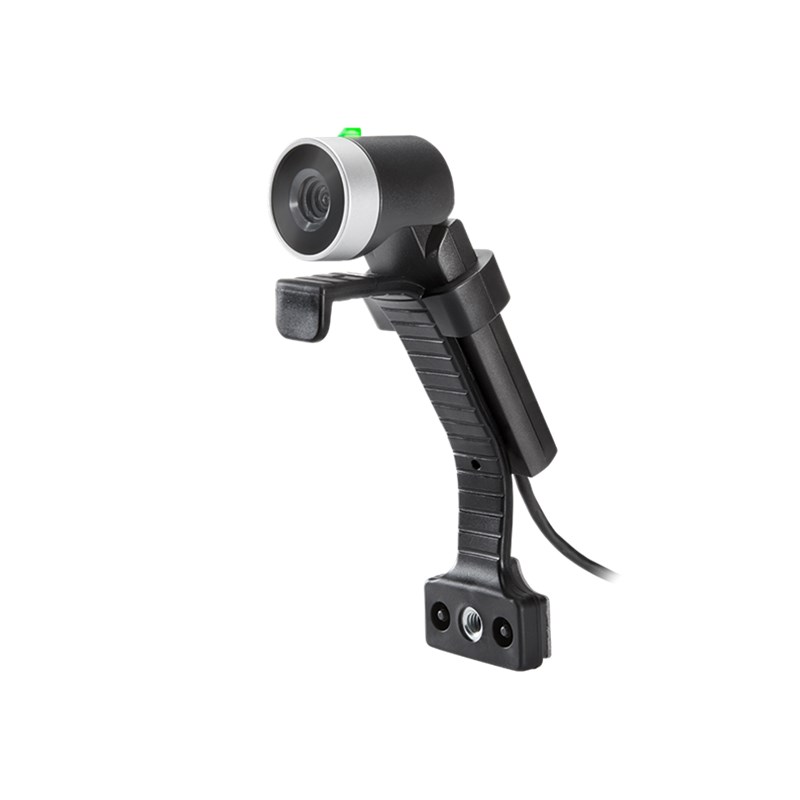

EagleEye Mini
Polycom
Original New
1 year
| Quantity: | |
|---|---|
| • Ideal for business, education, medical or even students classes virtually |
| • Security features include integrated privacy shutter and video mute/ unmute LED indicator |
| • Complements Poly headsets, VVX desktop phones, USB and Bluetooth® speakerphones |
| EagleEye Mini | |
| FEATURES | • Integrated privacy shutter • Mechanically adjustable tilt • Plug and Play setup • Uncompressed local video loopback • Normal, full, crop video screen modes • Adjustable levels and frame rate • Anti-flicker compensation • 2 color / 4 state status LED |
| VIDEO STANDARDS | • H.264 AVC, H.264 high profile encoding • H.264 SVC for Skype for Business encoding • RGB and YUV raw video |
| BANDWIDTH | • 280 Mbps max transmit bitrate |
| CONTENT VIDEO RESOLUTION | • 24-bit true color • Supports up to 1080p @ 30fps transmitvideo (H.264) • Multicast video streams |
| CAMERA | • f/2.0 aperture • 4 mega pixel sensor • Vertical tilt angle adjustable from +6° (up)to –22 (down) • 73.7° HFoV/ 82°DFoV • Automatic exposure and white balance • Autofocus, 8cm-infinity • 4x electronic zoom (1.4x lossless) |

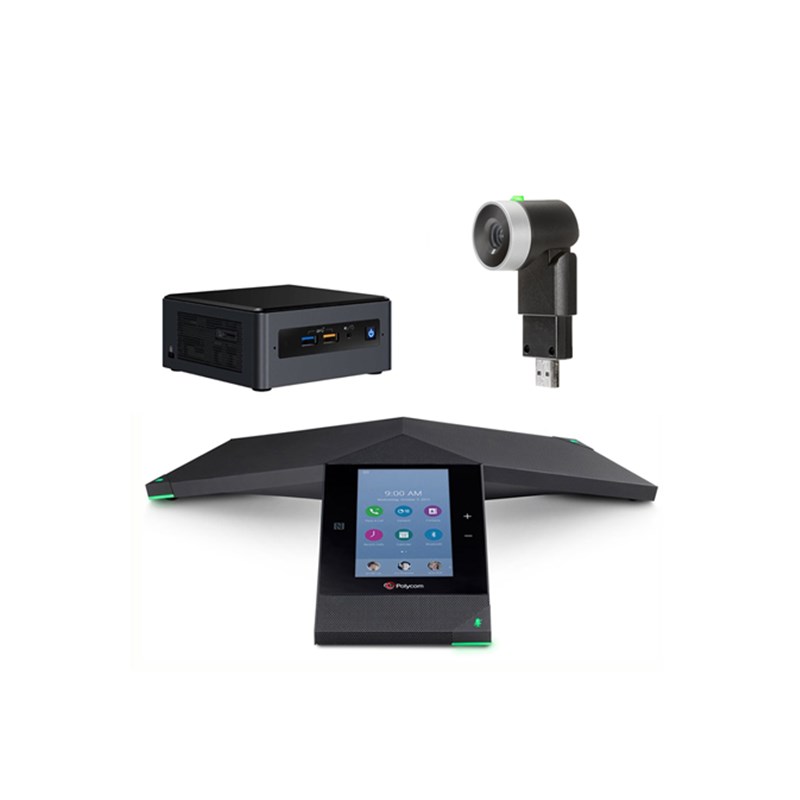

| COMPLEMENTS THE FOLLOWING POLY PHONES | • Poly VVX 601 v 5.8.1 or above • Poly VVX 501 v 5.8.1 or above • Poly Trio 8500* v 5.7.1 or above • Poly Trio 8800* v 5.7.1 or above |
| COMPATIBLE VIDEO COMMUNICATION CLIENTS | • All leading UVC applications • Skype for Business certified • Skype for Business (certified by Microsoft) |
| CAMERA FIRMWARE UPDATES | • The EagleEye Mini USB camera receives firmware updates through software updates for the connected VVX business media phone or Poly Trio Visual+. When using the EagleEye Mini USB camera with a Windows or Mac computer, users can update the camera’s firmware using the Poly Companion application, which users can download from Poly Support. |
| INTERFACE | • USB 2.0 (UVC 1.5 and UVC 1.1 compliant) |
| POWER | • 5V @ <500mA via USB port |
| APPROVALS | • FCC Part 15 (CFR 47) Class B • ICES-003 Class B • EN55032 Class B • CISPR32 Class B • VCCI Class B • EN55024 • EN61000-3-2; EN61000-3-3 • Korea KCC • ROHS compliant • Russia EAC • Australia C Tick |
| SAFETY | • UL 60950-1 • UL 62368-1 • CE Mark • CAN/CSA-C22.2 No. 60950-1-03 • EN 60950-1 • EN 62368-1 • IEC 60950-1 • IEC 62368-1 • AS/NZS 60950-1 |
| OPERATING CONDITIONS | • Temperature - +32 to 104°F (0 to 40°C) • Relative Humidity - 5% to 95%, noncondensing |
| STORAGE TEMPERATURE | • –40 to +160°F (–40 to +70°C) |
| WARRANTY | • Limited one year |
| PART NUMBERS | • EagleEye Mini Camera for VVX 501/601: 2200-85010-001 • EagleEye Mini Camera w/mounting kit: 7200-84990-001 |
