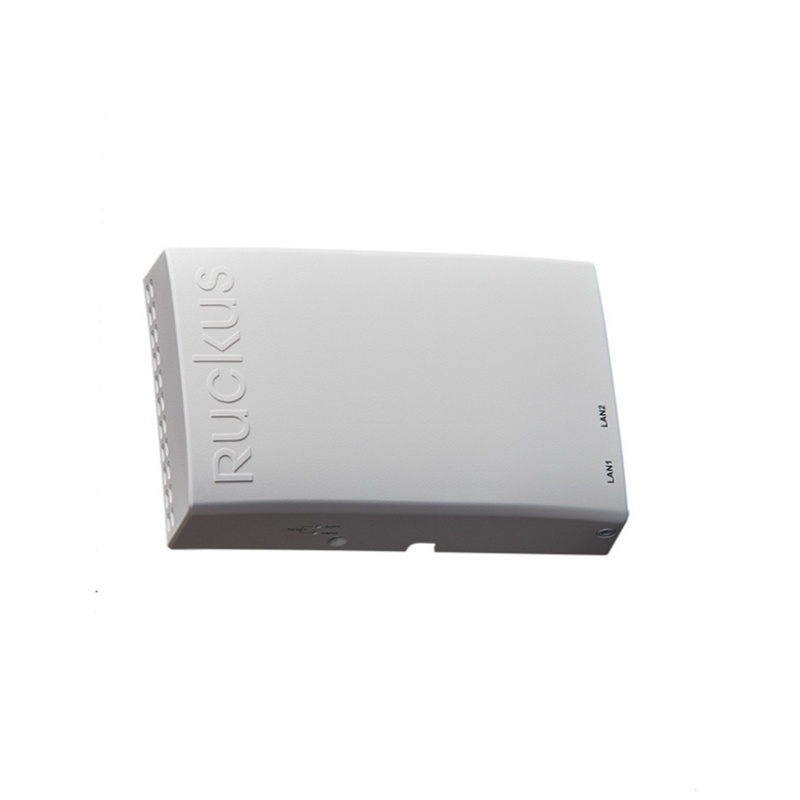

RUCKUS H320 Indoor Access Point Wall-Mounted 802.11AC Wave 2 Wi-Fi Indoor Access Point (AP) and Switch

RUCKUS H320 Wall-Mounted 802.11ac Wave 2 Wi-Fi Access Point and Switch
  • H320

  • Ruckus

  • Original New

  • 1 year

Availability:
Quantity:
RUCKUS H320 Wall-Mounted 802.11ac Wave 2 Wi-Fi Access Point and Switch

Wi-Fi is a critical amenity as users bring more devices into hotel rooms, meeting rooms, and classrooms. However, providing great Wi-Fi performance in every room is cost-prohibitive.

The RUCKUS H320 combines an 802.11ac Wave 2 Wi-Fi access point and wired switch into one wall-mount device. Designed specifically for per-room deployments, the H320 is compact, inconspicuous, secure, and easy to mount to an electrical junction box. Bottom facing Ethernet ports eliminate unsightly cabling and accommodates any furniture placement.

Easily supports converged wired and wireless services with one device, that include VoIP, IPTV, high-speed Internet access and in-room Wi-Fi device connectivity.

This 802.11ac Wave 2 Wi-Fi AP and switch incorporates patented technologies found only in the Ruckus Wi-Fi portfolio.

  • Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns

  • Improved throughput with ChannelFly which dynamically find less congested Wi-Fi channels to use

The H320 supports Multi-User MIMO (MU-MIMO) which increases network throughput by transmitting to multiple clients simultaneously.

Support per-room wired IP devices from TVs to phones with 2 onboard Ethernet ports. Also, with built-in visual troubleshooting tools within Ruckus Wi-Fi controllers, administrators can accelerate resolution of trouble tickets.

Whether organizations are deploying ten or ten thousand APs, the H320 can be deployed as a standalone AP or centrally managed by SmartZone or ZoneDirector management platforms.

RUCKUS H320 Indoor Access PointWall-Mounted 802.11AC Wave 2 Wi-Fi Indoor Access Point (AP) and Switch
BENEFITS

AFFORDABLE ALL-IN-ONE
Deliver great in-room Wi-Fi and concurrent wired IP connectivity with 802.11ac Wave 2 speed and a built-in 2-port switch.

STUNNING PERFORMANCE
Extends coverage with patentedBeamFlex+™ adaptive antenna technology while mitigating interference by utilizing multi-directional antenna patterns.

MULTIPLE MANAGEMENT OPTIONS
Manage the H320 from the cloud, or with on-premises physical/virtual appliances.

AUTOMATE OPTIMAL THROUGHPUT
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.

SERVICE MORE DEVICES
Connect more devices simultaneously with two MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device performance.

SUPPORT MORE SERVICES
Multiple SSIDs and switch ports help support services such as VoIP, IPTV, and high-speed Internet access and in-room device connectivity.

KEEP YOUR SWITCHES AND CABLES
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costs.

MORE THAN WI-FI
Support services beyond Wi-Fi with Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics.

RUCKUS H320 Indoor Access PointWall-Mounted 802.11AC Wave 2 Wi-Fi Indoor Access Point (AP) and Switch

ACCESS POINT ANTENNA PATTERN

Ruckus' BeamFlex+ adaptive antennas allow the h320 AP to dynamically choose among a host of antenna patterns in real-time to establish the best possible connection with every device. This leads to:

  • Better Wi-Fi coverage

  • Reduced RF interference

Traditional omni-directional antennas, found in generic access points, oversaturate the environment by needlessly radiating RF signals in all directions. In contrast, the Ruckus BeamFlex+ adaptive antenna directs the radio signals per- device on a packet by-packet basis to optimize Wi-Fi coverage and capacity in real- time to support high device density environments. BeamFlex+ operates without the need for device feedback and hence can benefit even devices using legacy standards.RUCKUS H320 Indoor Access PointWall-Mounted 802.11AC Wave 2 Wi-Fi Indoor Access Point (AP) and Switch
RUCKUS H320 Indoor Access PointWall-Mounted 802.11AC Wave 2 Wi-Fi Indoor Access Point (AP) and Switch


Specification

General Specifications

Antenna Gain Up to 3 dBi
Antenna Patterns, per band 4
BeamFlex Yes
ChannelFly Yes
Concurrent Users 100
Controller Support Cloud Wi-Fi | SmartZone | Standalone | Unleashed | ZoneDirector

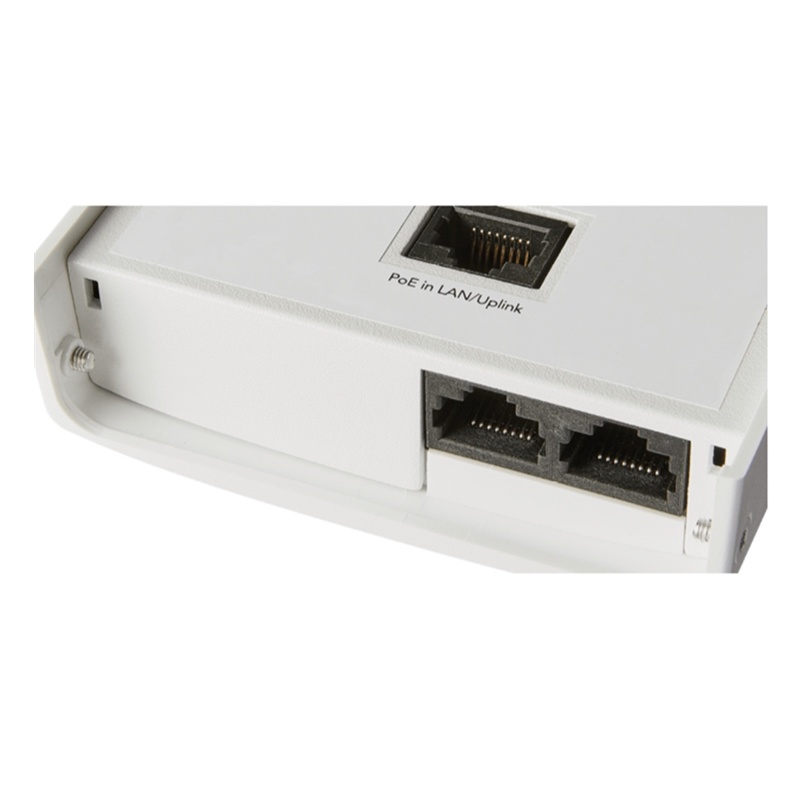

Ethernet Ports 1 x 1GbE | 2 x 10/100MbE
IoT Ready No
PD-MRC Yes
PHY Rate at 2.4 GHz, maximum 150 Mb/s
PHY Rate at 5 GHz, maximum 867 Mb/s
Radio Chains:Streams 2x2:2 MU-MIMO 1x1:1 SU-MIMO
Rx Sensitivity at 2.4 GHz -99 dBm
Rx Sensitivity at 5 GHz -96 dBm
SmartMesh No
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac Wave 2
Wi-Fi Interface Standard at 2.4 GHz 802.11n
Wi-Fi Interface Standard at 5 GHz 802.11ac
WI-FI

*Channel availability is country dependent according to the local regulations.

Wi-Fi Standards
  • IEEE 802.11a/b/g/n/ac Wave 2

Supported Rates
  • 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)

  • 802.11n: 6.5Mbps to 150Mbps (MCS0 to MCS7)

  • 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps

  • 802.11b: 11, 5.5, 2 and 1 Mbps

Supported Channels*
  • 2.4GHz: 1-13

  • 5GHz: 36-64, 100-144, 149-165

MIMO
  • 1x1 2.4GHz

  • 2x2 MU-MIMO 5GHz

Spatial Streams
  • 1 Stream 2.4GHz

  • 2 Streams SU/MU-MIMO 5GHz

Radio Chains and Streams
  • 2x2:2

Channelization
  • 20, 40, 80MHz

Security
  • WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK

  • WIPS/WIDS

Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v

  • Captive Portal

  • Hotspot

  • Hotspot 2.0

  • WISPr

NETWORKING
Controller Platform Support
  • SmartZone

  • ZoneDirector

  • Cloud Wi-Fi

  • Unleashed2

  • Standalone

Mesh
  • No Mesh support

IP
  • IPv4, IPv6, dual-stack

VLAN
  • 802.1Q (1 per BSSID or dynamic per use based on RADIUS)

  • Port-based

802.1x
  • Authenticator & Supplicant

Policy Management Tools
  • Application Recognition and Control

  • Access Control Lists

  • Device Fingerprinting

PHYSICAL CHARACTERISTICS
Physical Size
  • 89 mm (W) x 136 mm (L), 29 mm (H)

  • 3.5in (W) x 5.35in (L) x 1.1in (H)

Weight
  • 195g without bracket (6.9oz)

  • 276g with bracket (9.7oz)

Mounting
  • Electrical wallbox; Standard US and EU single gang wall jack

  • Optional bracket for offset & wall mount

Operating Temperature
  • 0°C (32°F) - 40°C (104°F)

Operating Humidity
  • Up to 95%, non-condensing
