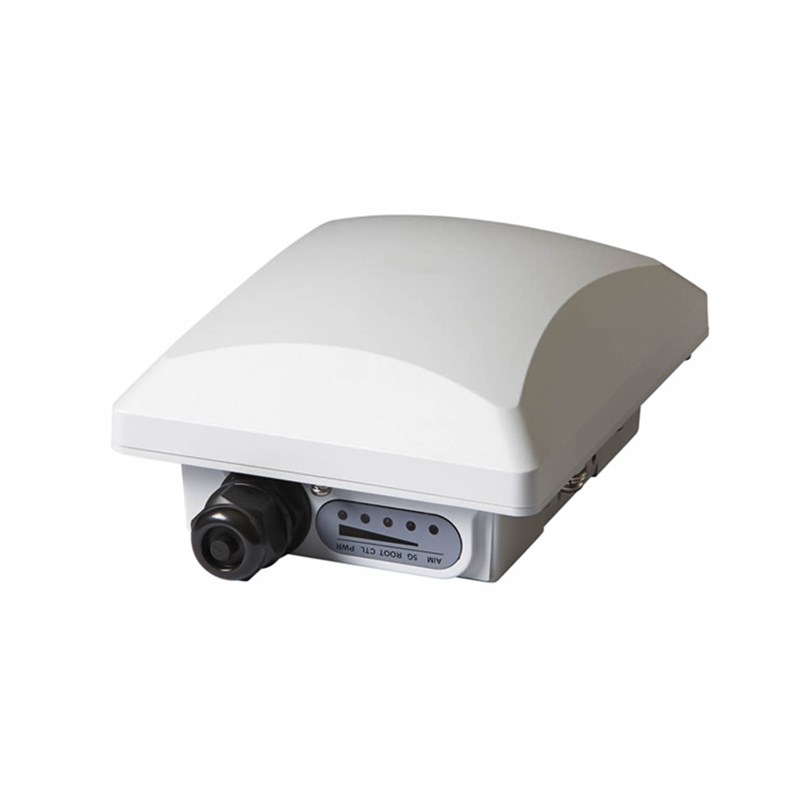

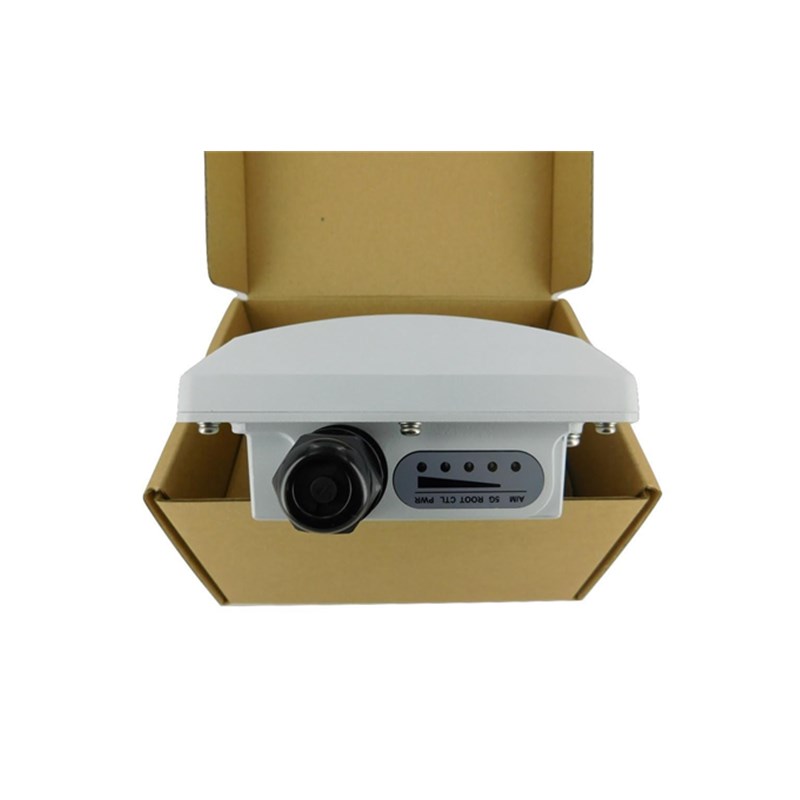

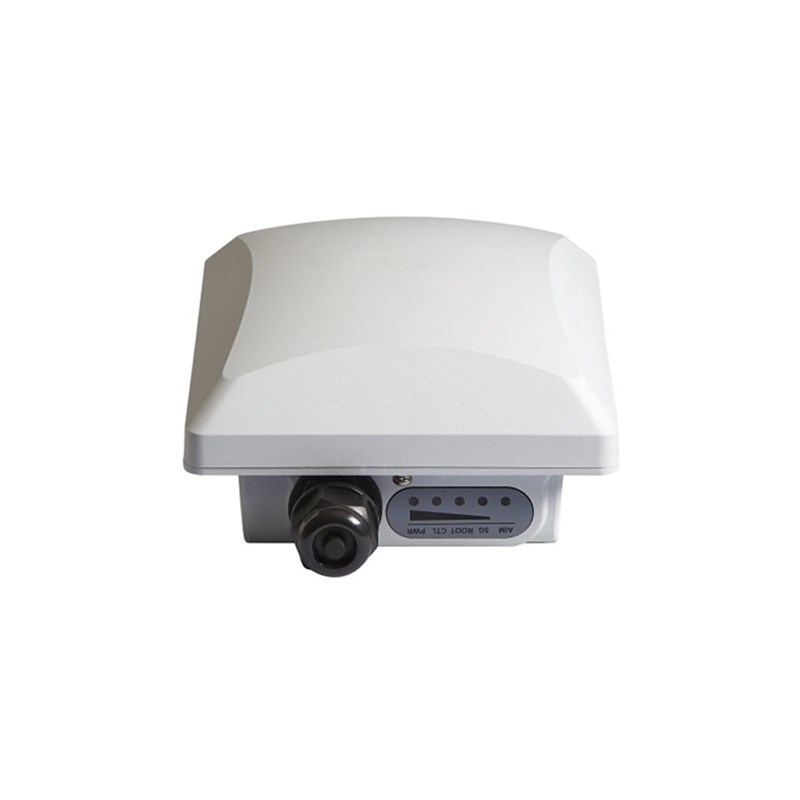

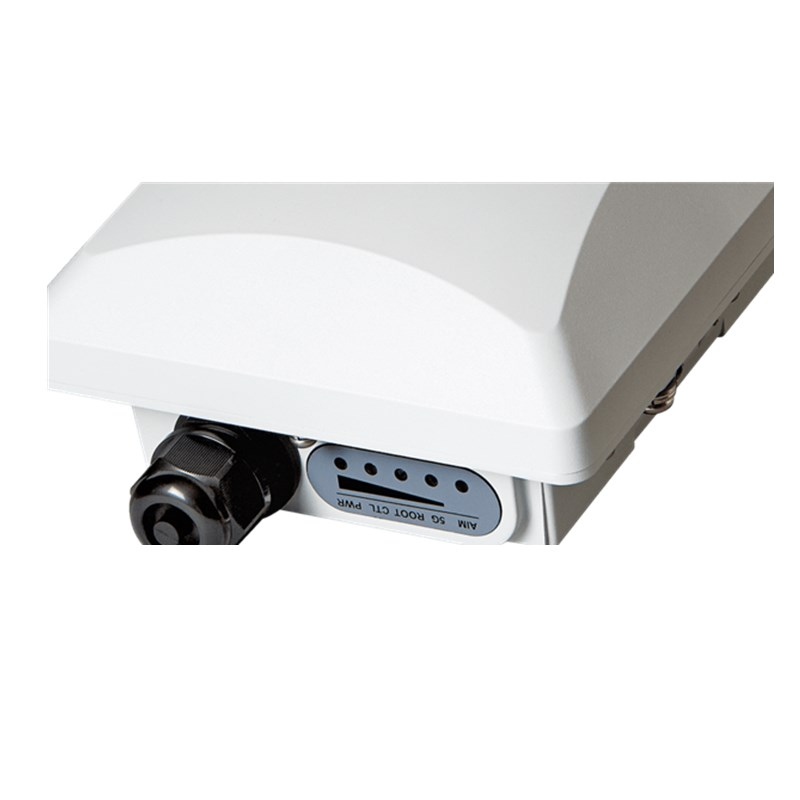

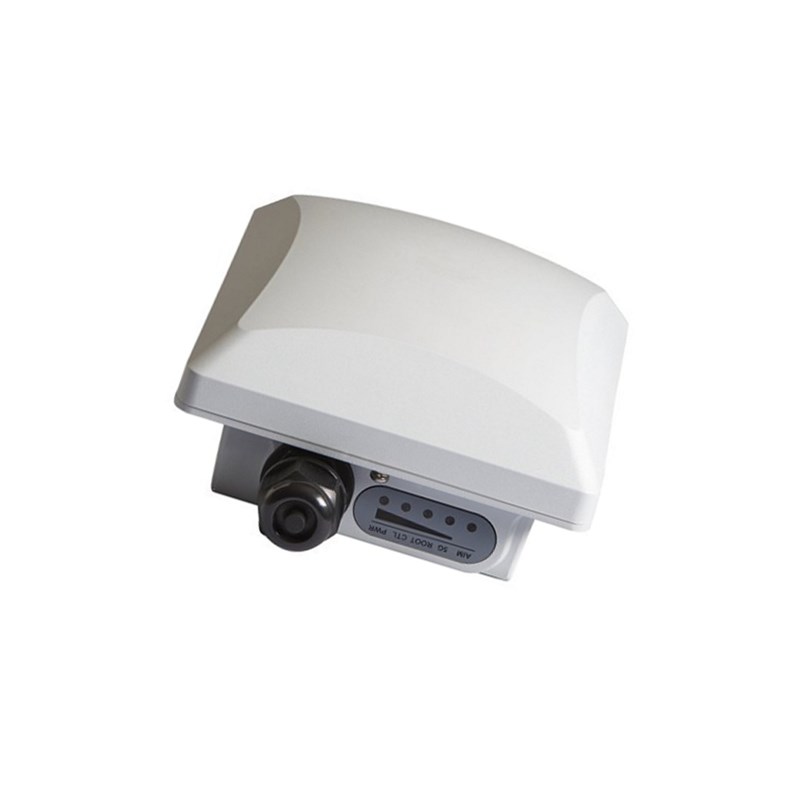

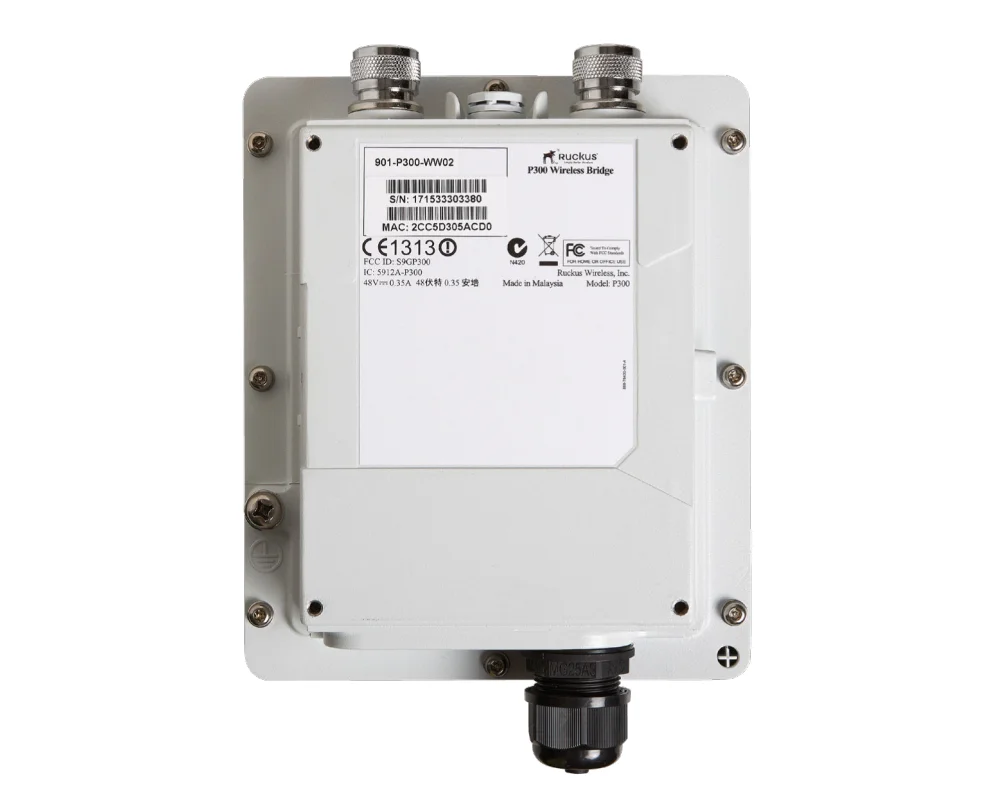

RUCKUS P300 Outdoor Access Point Outdoor 2X2:2 5GHz 802.11AC point-to-point/multipoint bridge for long range backhaul

The RUCKUS P300 is an outdoor point-to-point and point-to-multpoint bridge that unleashes the promise of 5GHz 802.11ac, delivering unparalleled backhaul throughput of over 500Mbps which opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable previously, in an affordable way.
  • P300
  • Ruckus
  • Original New
  • 1 year
Quantity:
RUCKUS P300
Smart 802.11ac 5GHz Outdoor Point-to-Point, Point-to-Multipoint Wireless Bridge
The RUCKUS P300 is an outdoor point-to-point and point-to-multpoint bridge that unleashes the promise of 5GHz 802.11ac, delivering unparalleled backhaul throughput of over 500Mbps which opens opportunities to new business models, bridging remote locations and providing broadband services to locations not reachable previously, in an affordable way.

Designed for harsh outdoor conditions, the P300 is perfect for service providers looking to
easily extend branded broadband services, backhaul small cell networks, offload data traffic
from small cell networks, deploy multimedia hotspots, or offer wireless broadband services
where fixed line access is limited.

The P300 is also ideal for hotels, schools, warehouses and other enterprises looking to extend
managed wireless LANs (WLANs) across remote buildings and where Ethernet cabling is not
possible.

Auto-pairing of wireless bridges, in addition to flexLbOe mounting options, forgiving antenna
pattern, and an easy-to-use aiming software, allows installers to deploy and optimize a
wireless link in a short time, sLgnLficantOy increasing productivity and reducing deployment
costs.
RUCKUS P300

Benefifits

Wire-Like Throughput Over the Air
Based on the 802.11ac standard, the P300 supports RF data rates of up to 867 Mbps. With Ruckus’ purpose-built directional antenna, the P300 supports throughputs up to 500 Mbps and offers performance
up to 100 Mbps at 8 km (LoS).*
* When used with optional external antenna
Easy Installation and Pairing
Ruckus P300 enables installers to deploy wireless bridges effortlessly. Lightweight and designed with
simple and flexLbOe mounting options.

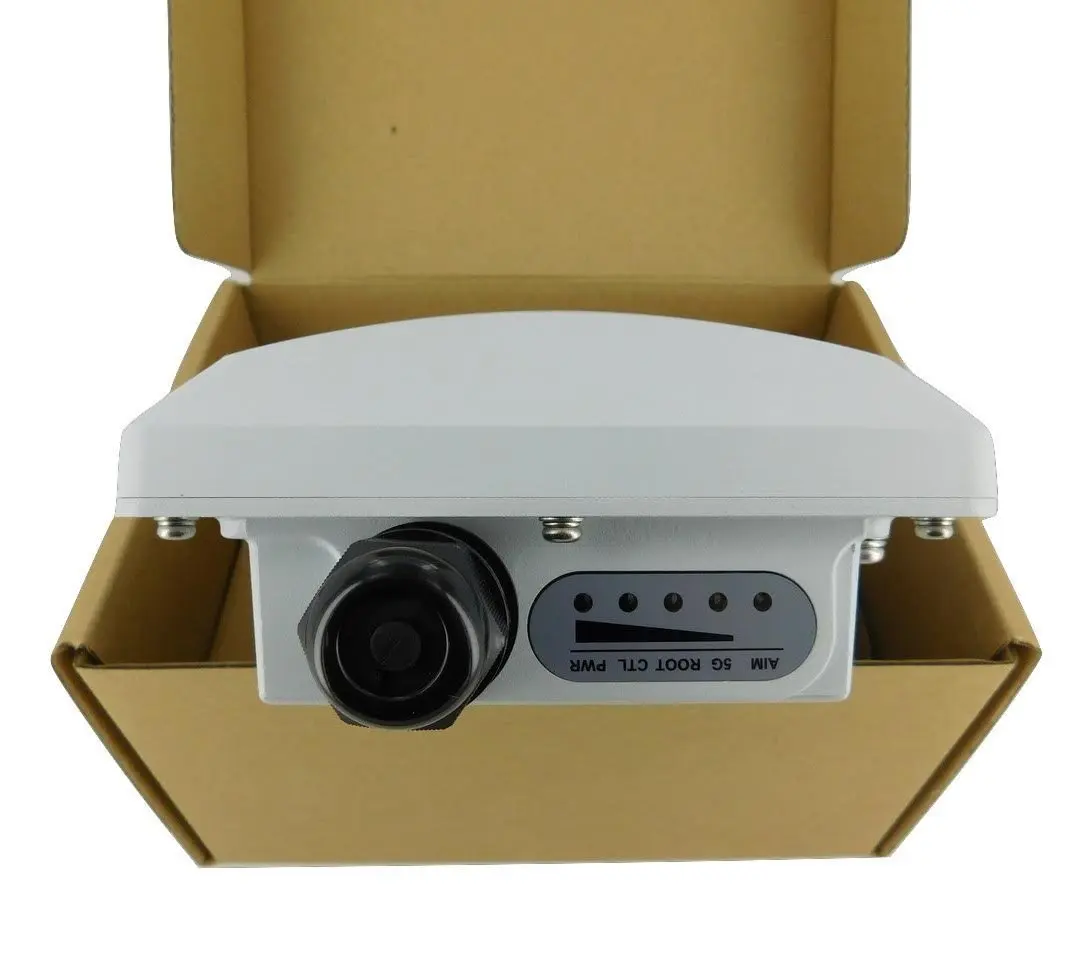

Simple Positioning and Aiming
Precision aiming and optimized performance with 30- degree beamwidth antenna and sophisticated LED
based aiming software. P300 proactively finds and selects the best performing channel automatically
using Ruckus’ patented ChannelFly™ channel selection algorithms.
Secure and Scalable
The wireless bridge link is AES secure and can scale to support multiple networks segmented by VLANs.
10x Scalability with Wireless Multi-Node Bridging
Each root bridge is capable of supporting up to 10 receiving bridges.
Unmatched ROI
The wireless link offers much higher data throughput rates than T1/E1 or xDSL lines at only a fraction of the fixed line installation cost and without the recurring leased line cost. The P300 is also an ideal option for backhauling small cell cellular networks.
Environmentally-Friendly Design

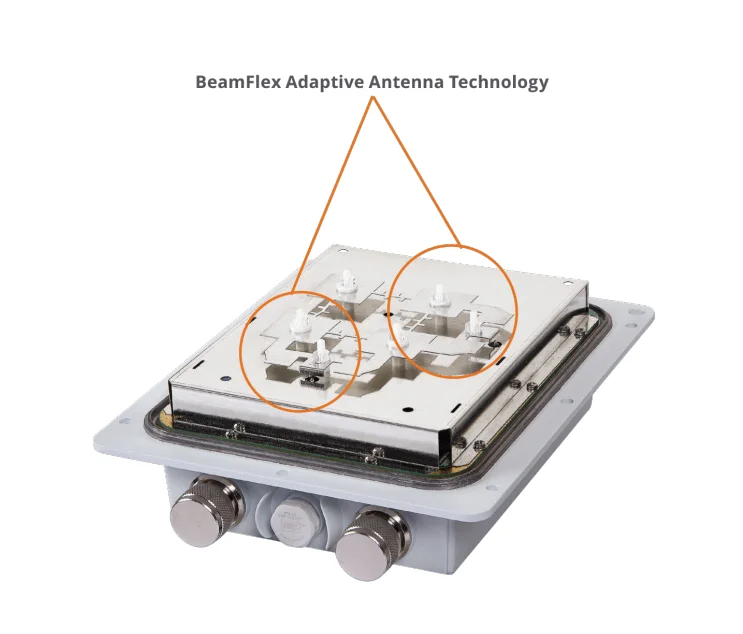

The internal dual polarized antenna not only does away the need for installing an external antenna, further simplifying the installation procedure, but also offers an aesthetically pleasing look and feel.
RUCKUS P300
Product Specification
RUCKUS P300
WI-FI
Wi-Fi Standards
· IEEE 802.11a/n/ac
· 5GHz operation
Supported Rates
· 802.11ac: 6.5 to 1167Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
· 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS15)
· 802.11a: 54, 48, 36, 24, 18, 12, 9, 6Mbps
Modulation
· OFDM
Radio Chains
· 2x2
Spatial Streams
· 2
Radio Chains and Streams
· 2x2:2
RF Power Output
· 22 dBm
Channelization
· 20, 40, 80MHz
Frequency Band
· IEEE 802.11ac: 5.15 – 5.875GHz
Security
· WPA2 AES
&HrtLœFDtLons
· U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa,
and Taiwan
· WEEE/RoHS compliance
PERFORMANCE AND CAPACITY
Peak PHY Rates
· 5GHz: 867Mbps
Target UDP Throughput
· Up to 500Mbps
· Up to 250Mbps at 2.6 km/1.6 mi
· Up to 100Mbps at 8 km/5 mi
Maximum Link Distance
· 12 kilometers
Point-to-Multipoint
· 30 degrees of coverage from the one root bridge with internal antenna to many receiving bridges
· 120 degrees of coverage when used with optional external antenna
Client Capacity
· 1-8 Client Bridges
MANAGEMENT
Configuration
· Web User Interface (HTTP/S)
· CLI (Telnet/SSH), SNMP v1, 2, 3
PHYSICAL CHARACTERISTICS
Power
· 802.3af Power over Ethernet

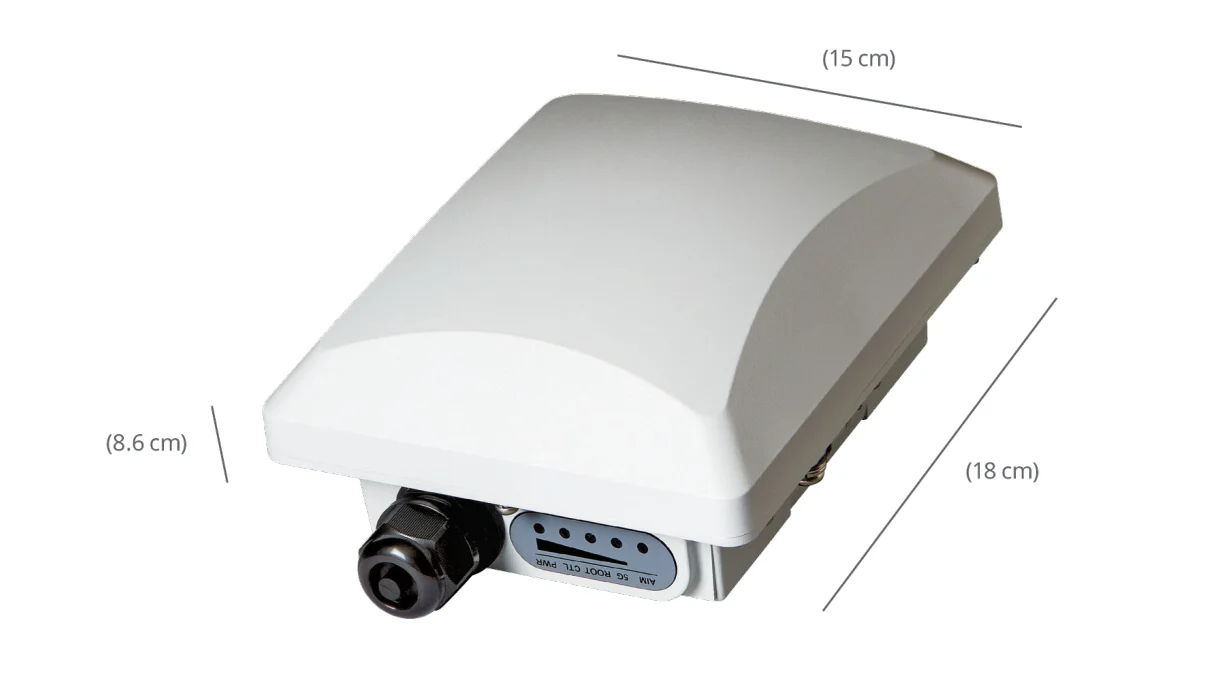

Physical Size
· 18 cm (L), 15 cm (W), 8.6 cm (H)
· 7” (L), 5.9” (W), 3.4” (H)
Weight
· 5.5 lbs (2.5kg) with adj bracket
· 2.1 lbs (1kg) without adj bracket
Ethernet Ports
· 1 port, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45
· Power over Ethernet (802.3af)
Antenna
· 14 dBi internal directional antenna
· 30 degree 3dB beamwidth
· Two external N-Type antenna connectors
Lock Options
· Pad-Eye for locking devices
Environmental Conditions
· IP-67 rated
Operating Temperature
· -40°C to 65°C (-40°F to 149°F)
Power Draw
· Quiescent 6.5W
· Typical 7.5W
· Peak 11W
ORDERING INFORMATION
P300 802.11ac 5GHz Outdoor Wireless Bridge
901-P300-XX02

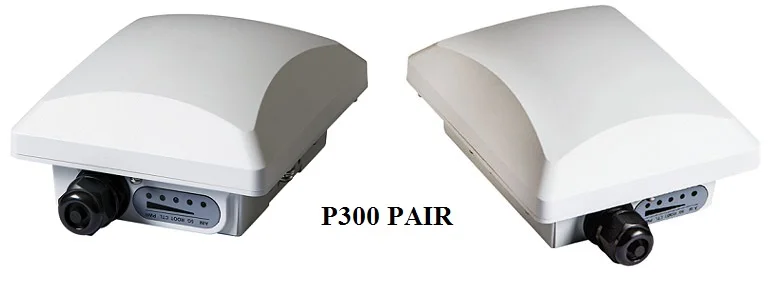

P300, Pre-Provisioned Pair, outdoor 802.11ac 2X2:2 bridge, 5GHz internal antenna, optional antenna support, one ethernet port, PoE input, includes mounting brackets and one year warranty. Does not include PoE injector, power adapters, optional external anteannas or optional external RF cables
901-P300-XX01
P300, single unit, outdoor 802.11ac 2X2:2 bridge, 5GHz internal antenna, optional antenna support, one ethernet port, PoE input, includes mounting brackets and one year warranty. Does not include PoE injector, power adapters, optional external anteannas or optional external RF cables
