| RUCKUS R320 | |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac wave 2 |
| Supported Rates | · 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80) · 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) · 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps · 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 2x2 SU-MIMO · 2x2 MU-MIMO |
| Spatial Streams | · 2 SU-MIMO · 2 MU-MIMO |
| Radio Chains and Streams | · 2x2:2 |
| Channelization | · 20, 40, 80MHz |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v · Hotspot · Hotspot 2.0 · Captive Portal · WISPr |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 300Mbps · 5 GHz: 867Mbps |
| Client Capacity | · Up to 256 clients per AP |
| SSID | · Up to 16 per AP |
| RUCKUS RADIO MANAGEMENT | |

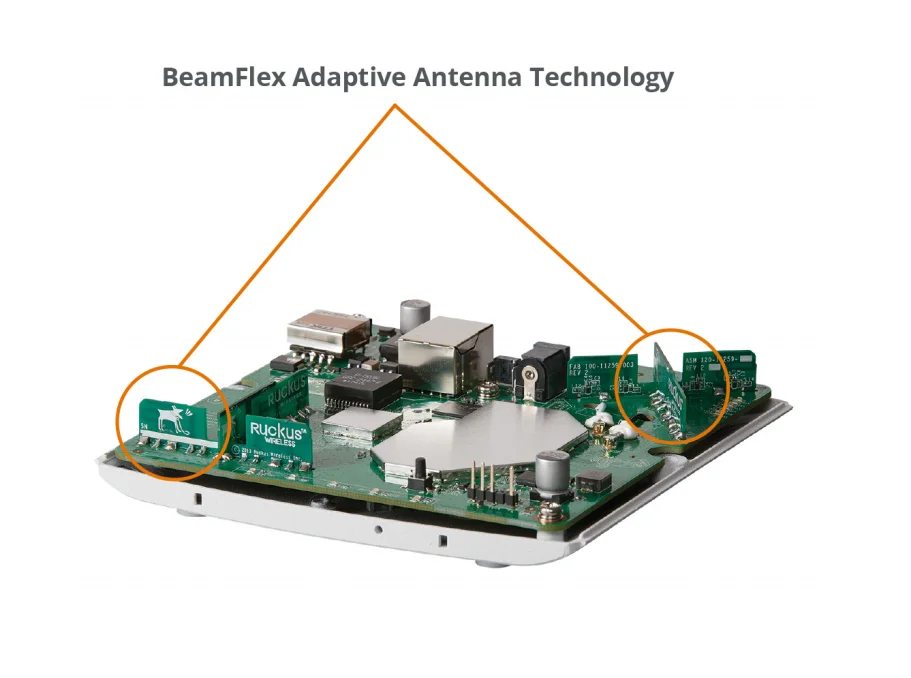

| Antenna Optimization | · BeamFlex |
| Wi-Fi Channel Management | · ChannelFly · Background Scan Based |
| Client Density Management | · Adaptive Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | · QoS-based scheduling · Directed Multicast · L2/L3/L4 ACLs |
| Mobility | · SmartRoam |
| Diagnostic Tools | · SpeedFlex |
| NETWORKING | |
| Controller Platform Support | · SmartZone · ZoneDirector · Unleashed2 · Cloud · Standalone |
| Mesh | · No Mesh support |
| IP | · IPv4, IPv6 |
| VLAN | · 802.1Q (1 per BSSID or dynamic per use based on RADIUS · VLAN Pooling · Port-based |
| 802.1x | · Authenticator & Supplicant |
| Tunnel | · L2TP, GRE, Soft-GRE |
| Policy Management Tools | · Application Recognition and Control · Access Control Lists · Device Fingerprinting · Rate Limiting |
| PHYSICAL INTERFACES | |

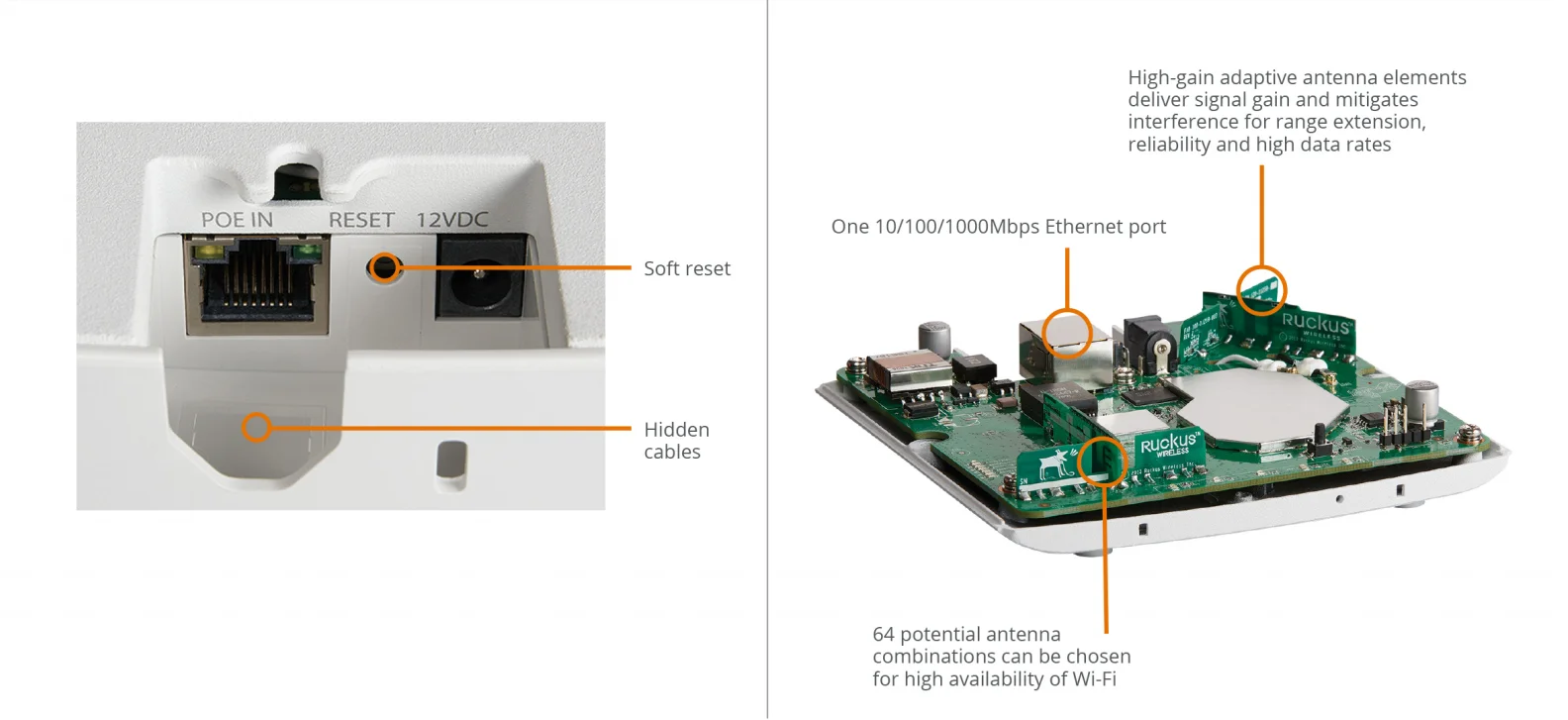

| Ethernet | · 1 x 1GbE port, RJ-45 |
| PHYSICAL CHARACTERISTICS | |

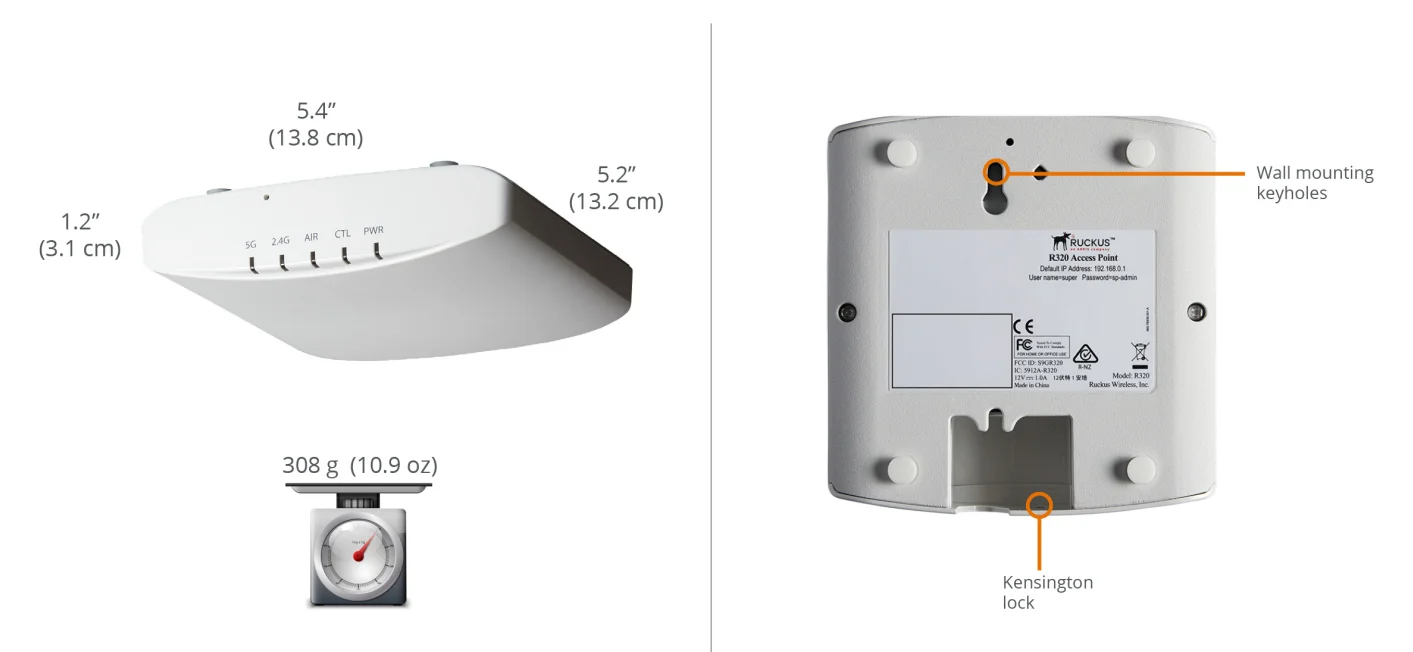

| Physical Size | · 13.2(L) x 13.8(W) x 3.1(H) cm · 5.2(L) x 5.4(W) x 1.2(H) in |
| Weight | · 308g (10.9oz) |
| Mounting | · Wall, Drop ceiling, Desk · Secure bracket (sold separately) |
| Physical Security | · Hidden latching mechanism · Kensington lock · T-bar Torx |
| Operating Temperature | · 0 ºC (32 ºF) to 40 ºC (104 ºF) |
| Operating Humidity | · Up to 95%, non-condensing |
| POWER | |
| Power Supply | Maximum Power Consumption |
| 802.3af | · 12.18W |
| DC input 12 VDC 1A | · 9.15W |
