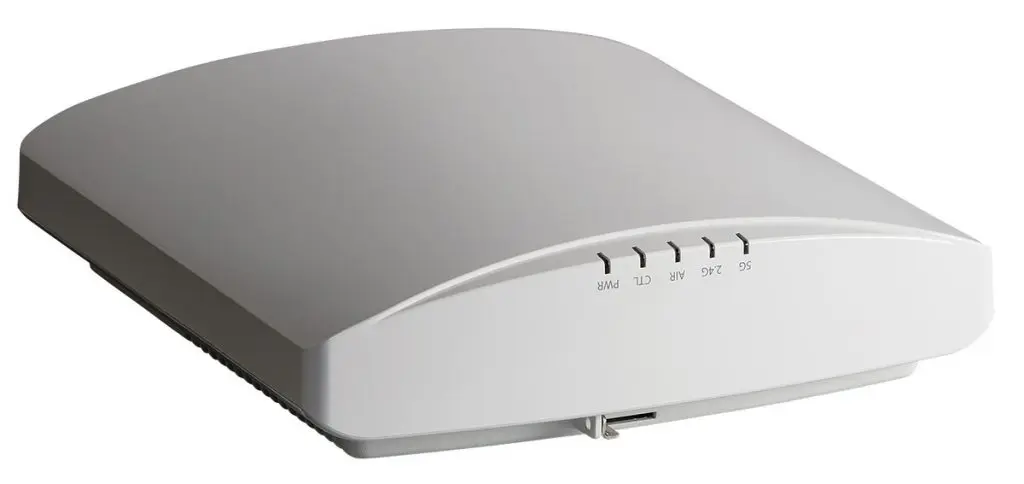

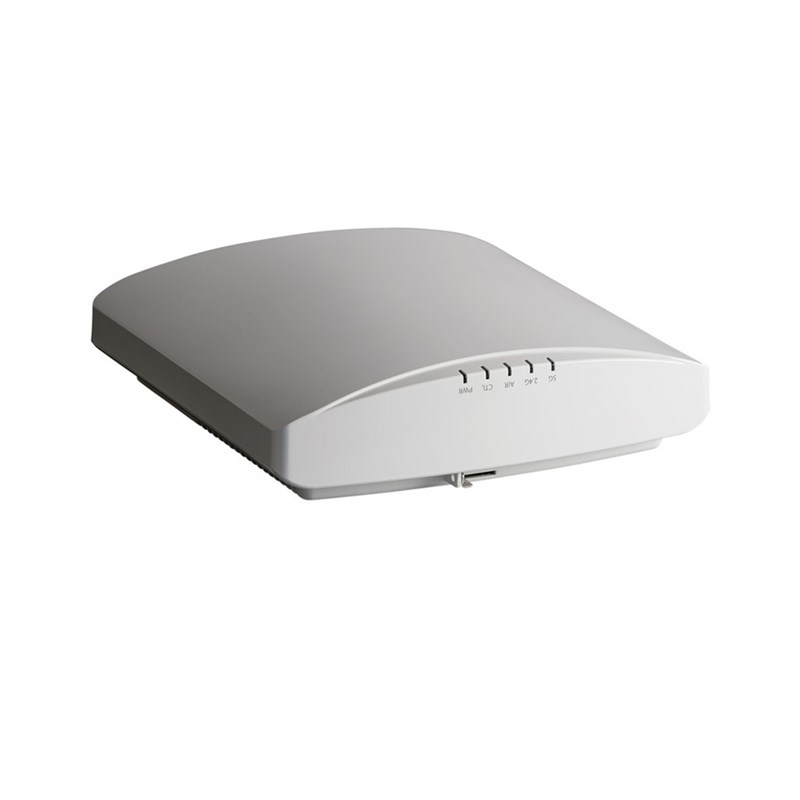

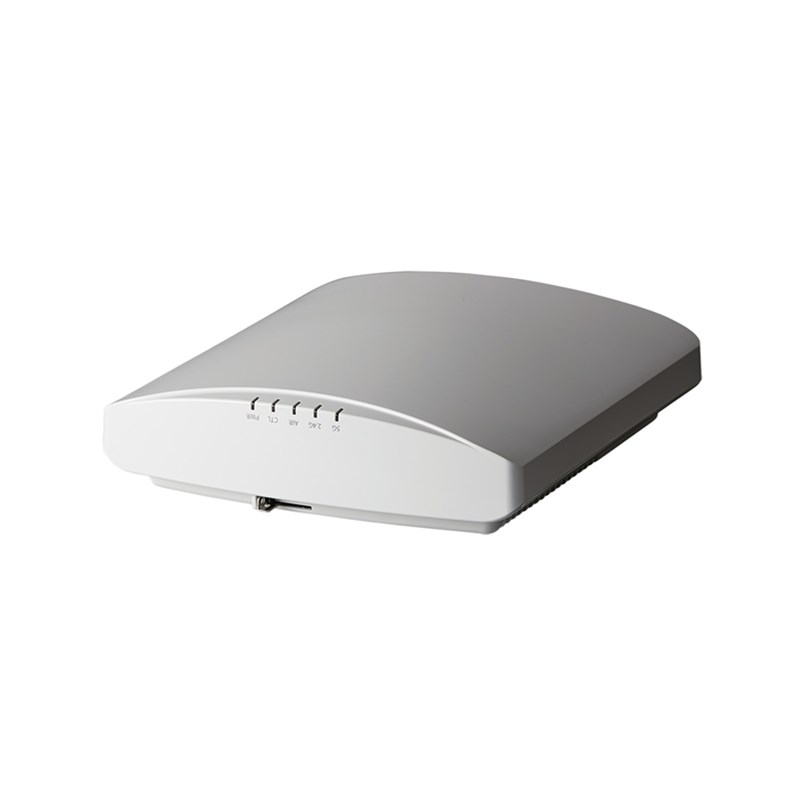

R730
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
| RUCKUS R730 | |
| WI-FI | |
| Wi-Fi Standards | · IEEE 802.11a/b/g/n/ac/ax |
| Supported Rates | · 802.11ax: 4 to 4800 Mbps · 802.11ac: 6.5 to 3467 Mbps · 802.11n: 6.5 to 600 Mbps · 802.11a/g: 6 to 54 Mbps · 802.11b: 1 to 11 Mbps |
| Supported Channels | · 2.4GHz: 1-13 · 5GHz: 36-64, 100-144, 149-165 |
| MIMO | · 8x8 MU-MIMO · 8x8 SU-MIMO |
| Spatial Streams | · 8 MU-MIMO · 8 SU-MIMO |
| Radio Chains and Streams | · 8x8:8 |
| Channelization | · 20, 40, 80MHz |
| Modulation | · OFDMA (up to 1024-QAM) |
| Security | · WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK · WIPS/WIDS |
| Other Wi-Fi Features | · WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/ vHotspot · Hotspot 2.0 · Captive Portal · WISPr |
| PERFORMANCE AND CAPACITY | |
| Peak PHY Rates | · 2.4GHz: 1.148 Gbps (11ax) · 5GHz: 4.8 Gbps (11ax) |
| Client Capacity | · Up to 1024 clients per AP |
| Simultaneous VoIP Clients | · Up to 60 per AP |
| SSID | · Up to 16 per radio |
| RUCKUS RADIO MANAGEMENT | |
| Antenna Optimization | · BeamFlex+ · PD-MRC |
| Wi-Fi Channel Management | · ChannelFly |
| Client Density Management | · Band Balancing · Client Load Balancing · Airtime Fairness · Airtime-based WLAN Prioritization |
| Queuing & Scheduling | · SmartCast |
| Mobility | · SmartRoam |
| Diagnostic Tools | · Spectrum Analysis · SpeedFlex |
| High Density Deployments (RF Innovations) | · Perpacket Adaptive Power · Adaptive Wi-Fi Cell Size · Transient Client Management · Airtime Decongestion |
| NETWORKING | |
| Controller Platform Support | · SmartZone (SZ3.6.2 and SZ v5.1.1) · ZD (ZD10.1.2) · Standalone · Please note: R730 is *not* supported on SZ v5.0.x and SZ v5.1.0 · Cloud |
| Mesh | · SmartMesh™ wireless meshing technology |
| IP | · IPv4, IPv6 |
| VLAN | · 802.1Q · BSSID-based (16 BSSIDs / radio) · Port-based · Dynamic, per user based on RADIUS |
| 802.1x | · Wired & wireless · Authenticator & Supplicant |
| Tunnel | · RuckusGRE, SoftGRE |
| Policy Management Tools · | · Application Recognition and Control · Access Control Lists · Device Fingerprinting |
| IoT Capable | · Yes |
| OTHER RADIO TECHNOLOGIES | |
| IoT | · BLE, Zigbee |
| PHYSICAL INTERFACES | |

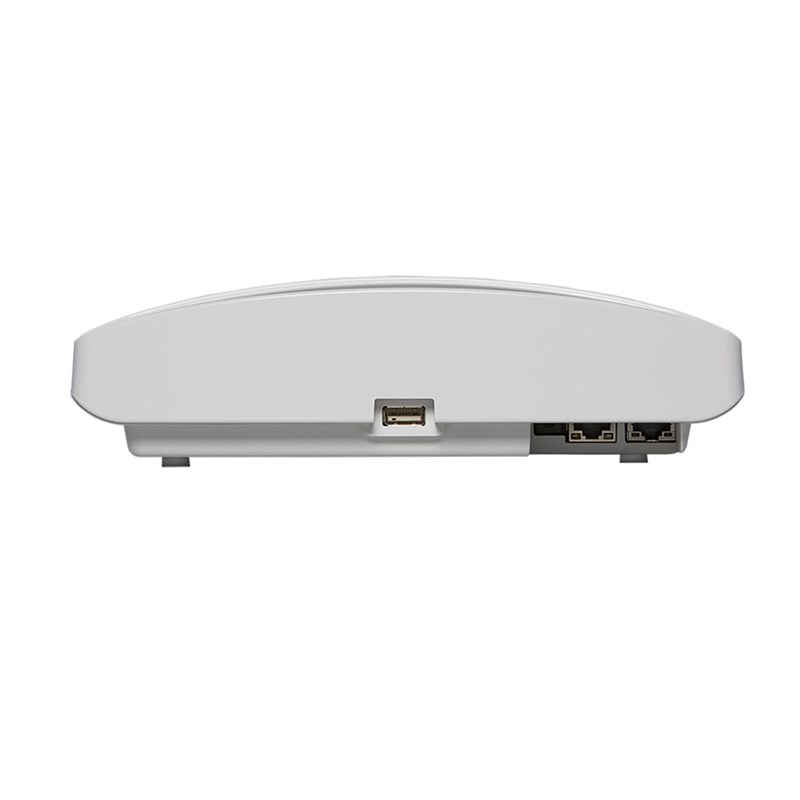

| Ethernet | · 1x 1/2.5/5 Gbps port, RJ-45 · 1x 10/100/1000 Mbps port, RJ-45 |
| USB | · 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS | |
| Physical Size | · 22.19 x 24.96 x 6 cm · 8.74 x 9.83 x 2.36 in. |
| Weight | · 1.53 kg · 3.37 lbs |
| Mounting | · Wall, Acoustic ceiling, Desk · Secure Bracket (sold separately) |
| Physical Security | · Hidden Latching Mechanism |
| Operating Temperature | · -0C (32F) to 50°C (122°F) |
| Operating Humidity | · Up to 95%, non-condensing |
